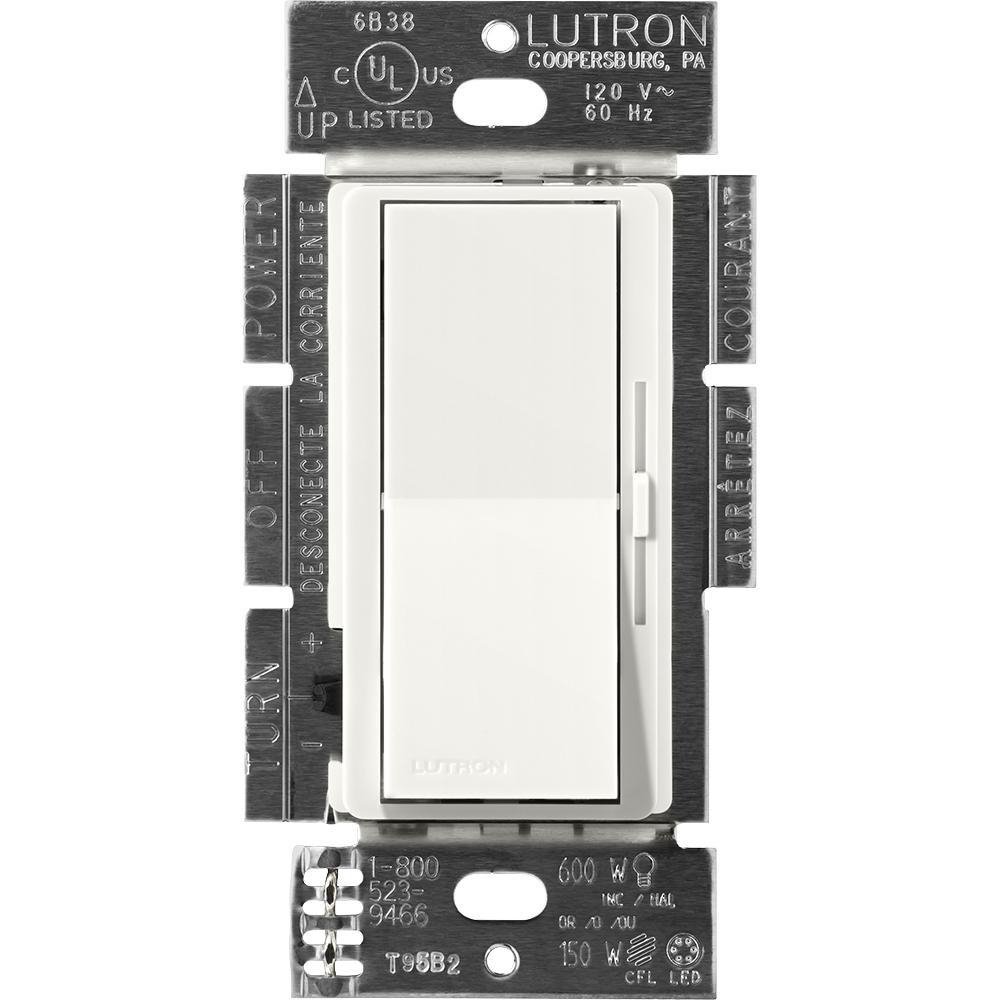

Lutron® DVSCTV-RW
Lutron® DVSCTV-RW DIVA (Satin) Dimmer Single Pole Switch, 24 V DC, 100 mA, 1 Poles, Architectural White
Brand: Lutron®
Item ID: 527675
MPN: DVSCTV-RW
Login for Price
Features
- Separate Power Pack (PP-DV) required for dimmer, Power Pack requires Neutral
- Easily replaces existing switch and installs in as little as 15 min
Description
The Diva 0-10V dimmer switch is a simple solution is designed to match existing design style switches and accessories. Easily turn the lights on and off with a paddle switch, and use the slide control to adjust the lights to the perfect level. The new Diva 0 - 10-Volt dimmer switch is a 0-10 VDC dimmer with 3-way functionality for 3rd party 0-10-Volt fixtures (LED and fluorescent), Power Pack (PP-DV) required. Coordinating wall plate and required Power Pack sold separately.
Lutron®, DVSCTV-RW, Single Pole Switch, Dimmer, Series: DIVA (Satin), 24 V DC, 100 mA, 1 Pole, Linear Slide Control, Wall Mounting, Screw Terminal, 32 to 104 deg F, Architectural White, 4.69 in H x 2.94 in W Dimensions
Specifications
Amperage Rating |
100 mA |
Color |
Architectural White |
Control |
Linear Slide |
Dimensions |
4.69 in H x 2.94 in W |
Mounting Type |
Wall |
Number of Poles |
1 |
Series |
DIVA (Satin) |
Temperature Rating |
32 to 104 deg F |
Terminal Type |
Screw |
Type |
Dimmer |
Voltage Rating |
24 V DC |
Standard Approval |
UL, CSA |
Application |
For Lighting Control |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVSCTV-MN_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVSCTV-MN_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVSCTV-MN_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVSCTV-MN_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA-S8AM-AL_Warranty.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA-S8AM-AL_Warranty.pdf
