Lutron® MA-PRO-SW

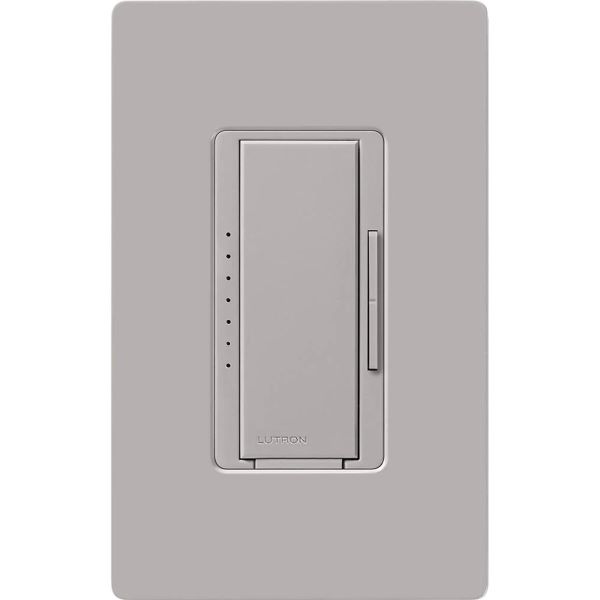

Lutron® Maestro® C.L® MA-PRO-SW Phase Selectable Dimmer, 120 VAC, 1 Poles, On/Off Operation, Snow
Brand: Lutron®
Item ID: 482934
MPN: MA-PRO-SW
Login for Price
Features
- Large tapswitch with a rocker style dimmer for a standard designer wallplate opening
- Advanced dimming technology designed for compatibility with a broader range of high efficacy bulbs
- Low end adjustment to accommodate a wide range of bulbs
- Can be used in single pole or in multi-location (using MA-R) applications
- 100% factory tested
- Neutral optional dimmer
Description
The Maestro® dimmer provides an easy to operate tap switch that turns lights on/off to your favorite light level. Use the rocker dimmer to adjust lights manually. The delayed fade to off feature gives you 10 to 60 sec to leave the room. Combine with Maestro® companion dimmers to control a single light from up to 10 locations.

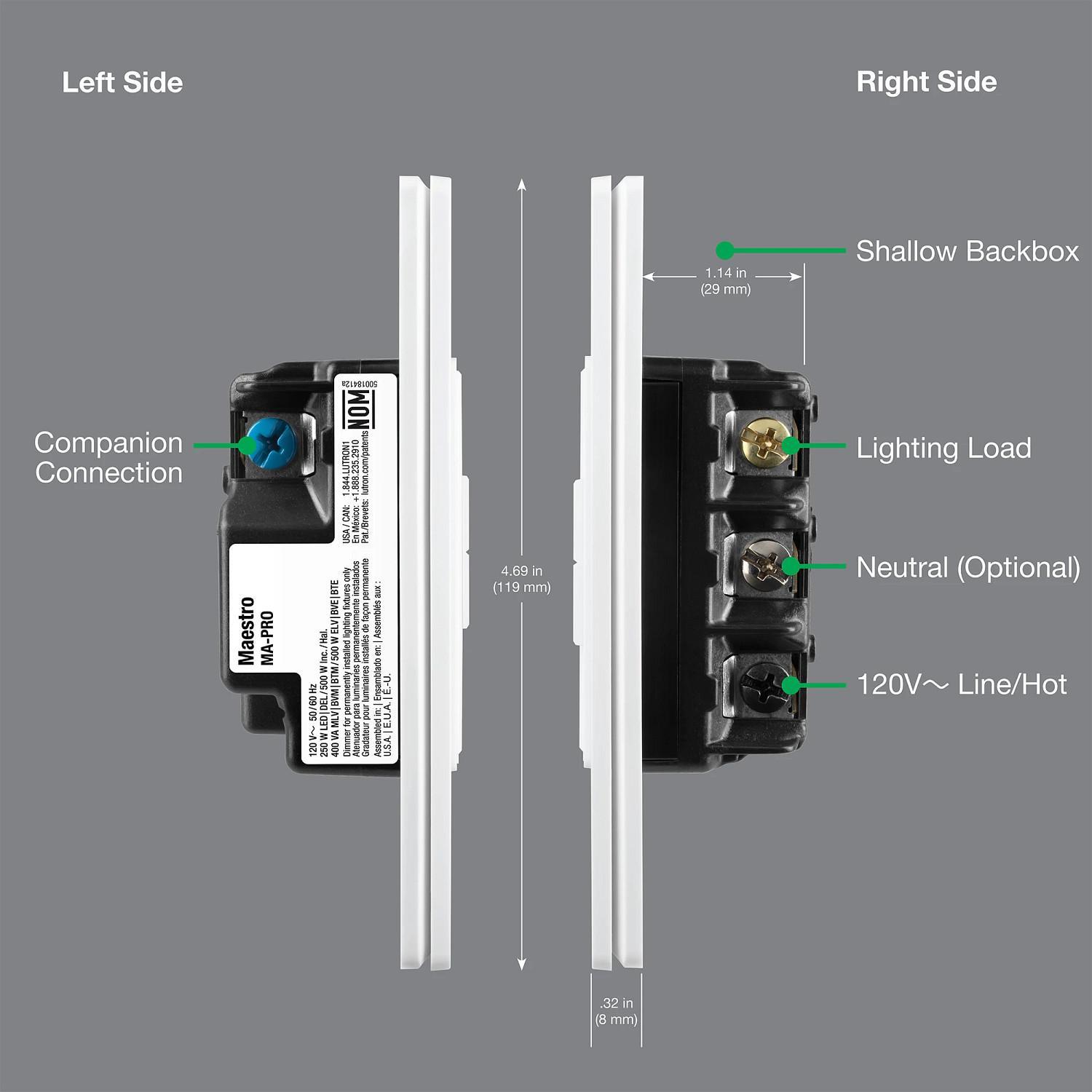

Lutron® Maestro® C.L® Dimmer, Phase Selectable, Series: MA-PRO, 120 VAC, 250/500/400 W Power, 50/60 Hz Frequency, 1 Pole, CFL/Halogen/Incandescent/LED Lamp, Operation Mode: On/Off, Tap/Touch Rocker Control, 0 to 40 deg C, Plastic, Snow, 4.69 in H x 2.94 in W x 0.32 in D Dimensions
Specifications
Color |
Snow |
Control |
Tap/Touch Rocker |
Dimensions |
4.69 in H x 2.94 in W x 0.32 in D |
Frequency Rating |
50/60 Hz |
Lamp Type |
CFL/Halogen/Incandescent/LED |
Material |
Plastic |
Number of Poles |
1 |
Operation Mode |
On/Off |
Power Rating |
250/500/400 W |
Series |
MA-PRO |
Temperature Rating |
0 to 40 deg C |
Type |

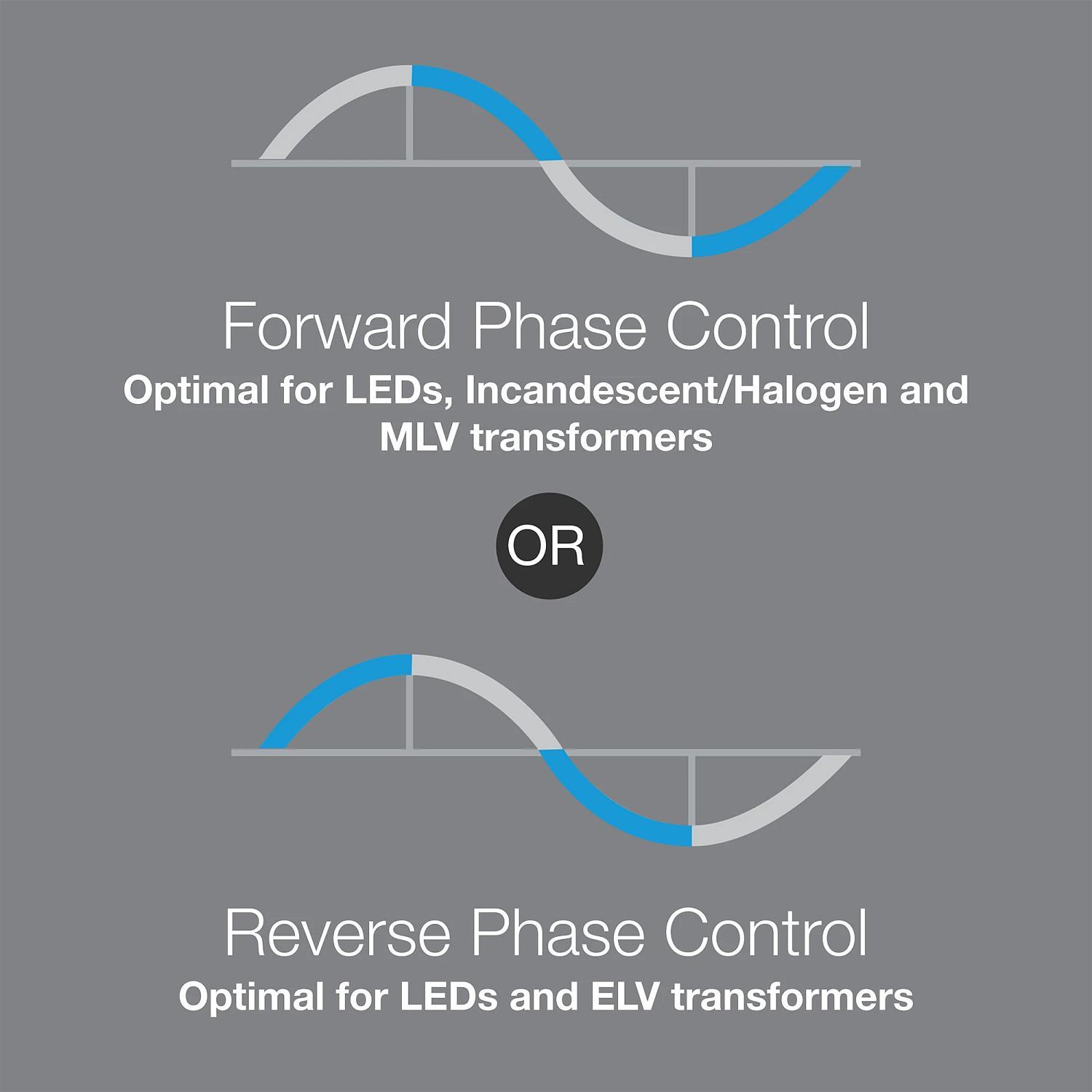

Phase Selectable |
Voltage Rating |
120 VAC |
Standard Approval |
UL Listed|CSA Certified|NOM Certified |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA_PRO_SW_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA_PRO_SW_Specification_Sheet.pdf
VIDEO LINK
https://lutron.widen.net/content/mywnd9xzlc/mp4/Maestro-LED+-Single-Pole-Installation_English.mp4
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA_PRO_SW_Warranty.pdf
