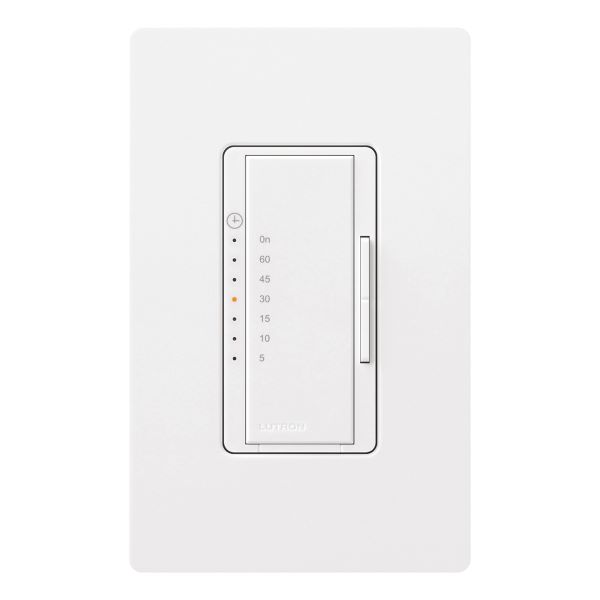

Lutron® Maestro® MA-T51MN-WH Multi-Location Countdown Timer Control Switch, 5 to 60 min Setting, 120 VAC, 1NO Contact, 1 Poles
Brand: Lutron®
Item ID: 384531
MPN: MA-T51MN-WH
Login for Price
Features
Description
Maestro® timers help you save money and energy by automatically turning off lights and fans after a preset time. Using Lutron® timers on bathroom exhaust fans can reduce the chance of a costly mold problem and timers attached to garage lights can add an e
Lutron® Maestro® Countdown Timer Control Switch, Multi-Location, Series: MA Series, Operation Mode: Tap On/Off, 120 VAC, 3/5 A, 1 Pole, 1NO Contact Form, 5 to 60 min Time Setting, Screw Terminal Electrical Connections, 32 to 104 deg F, Wall Mounting, 4.69
Specifications
Amperage Rating |
3/5 A |
Contact Form |
1NO |
Dimensions |
4.69 in H x 2.94 in W |
Electrical Connections |
Screw Terminal |
Mounting Type |
Wall |
Number of Poles |
1 |
Operation Mode |
Tap On/Off |
Series |
MA Series |
Temperature Rating |
32 to 104 deg F |
Time Setting |
5 to 60 min |
Type |
Multi-Location |
Voltage Rating |
120 VAC |
Standard Approval |
UL Listed|cUL Listed|IEC Certified|ANSI/IEEE Certified |
Application |
Bathroom, Kitchen, Exhaust Fan, Lighting and Indoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA_T51_BI_Catalog.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA_T51MN_AL_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA_T51MN_AL_Manual.pdf
Lutron® MA-T51MN-WH
