Lutron® MACL-153M-SW

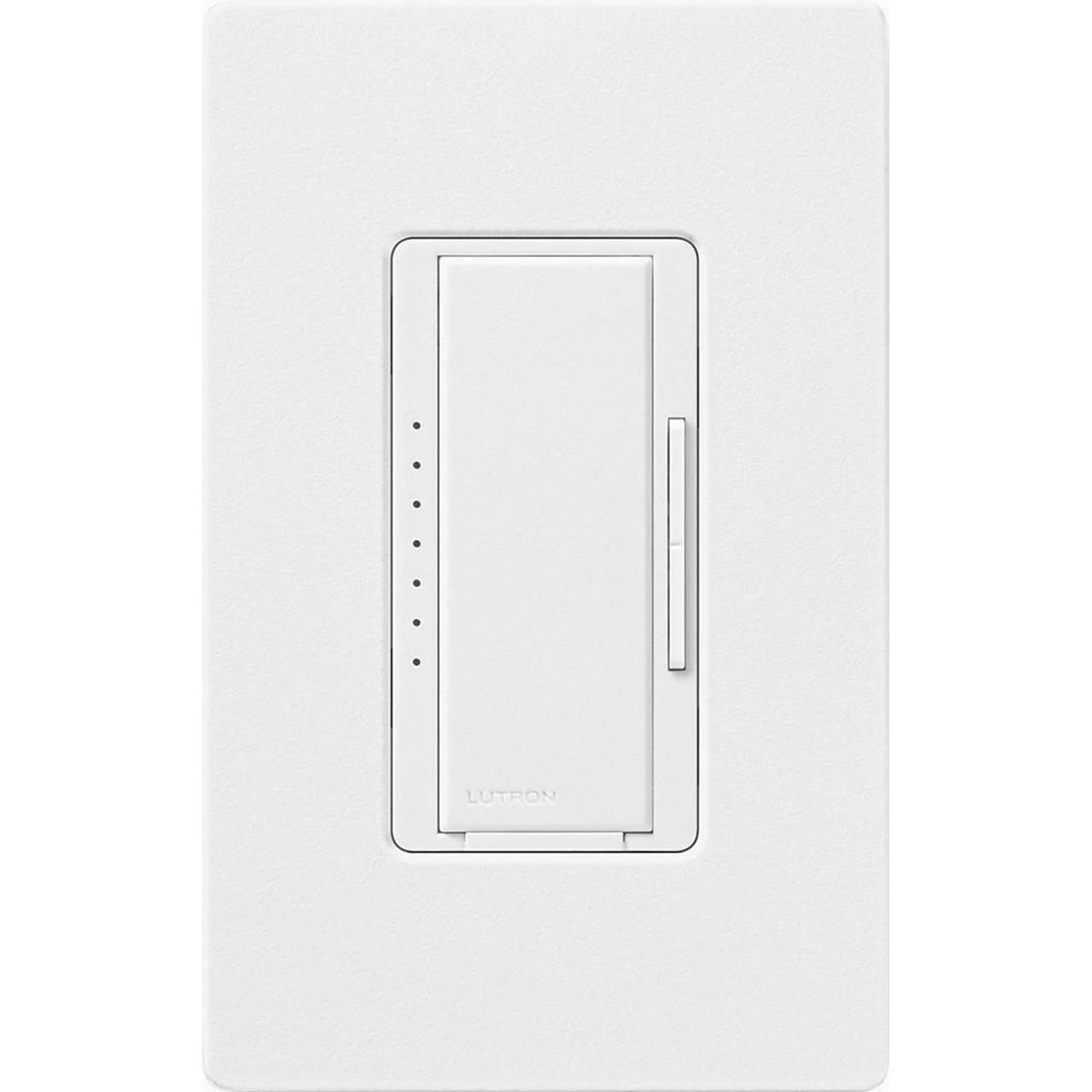

Lutron® MACL-153M-SW Dimmer Switch, 120 V AC, 1 Poles, Snow

Brand: Lutron®

Item ID: 420464

MPN: MACL-153M-SW

Login for Price

Features

  • Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming
  • Provides over 250 lighting levels so you can create the perfect light for any activity
  • Works with up to 150 Wof dimmable LED/CFL bulbs or 600 Wof Incandescent/Halogen bulbs
  • Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home
  • Easy-to-operate tap switch turns lights on/off to favorite light level
  • Rocker dims and brightens
  • Advanced programming settings for features such as customizable delayed-fade-to off

Description

The Maestro LED+ dimmer switch provides optimal dimming performance of LED bulbs. This dimmer switch works with up to 150-Watt of dimmable LED/CFL or 600-Watt of incandescent/halogen, allowing you to control multiple bulb types on the same circuit. It is designed to control a broad range of dimmable LED and CFL bulbs from a variety of brands including Philips, Cree, GE, EcoSmart and Lighting Science. Use the rocker to adjust the light level for any activity or set the preset level to ensure lights always turn on to your desired light level. Advanced features include delayed fade to off, which allows time to exit a room or to get into bed before the lights turn off. Coordinating Claro wall plate sold separately.

Lutron® Dimmer Switch, 120 V AC, 50 to 60 Hz Frequency, 1 Pole, Digital Fade Dimmer Start, Wall Box Mounting, 0 to 40 deg C, Plastic, Snow

Specifications

Color

Snow

Frequency Rating

50 to 60 Hz

Material

Plastic

Mounting Type

Wall Box

Number of Poles

1

Start Type

Digital Fade Dimmer

Temperature Rating

0 to 40 deg C

Voltage Rating

120 V AC

Standard Approval

UL, CSA, NOM

Application

Single-Pole, 3-way, Multi-Location

Documentation

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_RK-IV_Full_Engineering_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_RK-IV_Full_Engineering_Drawing.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MACL-153M-AL_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MACL-153M-AL_Installation_Manual.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MACL-153M-AL_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MACL-153M-AL_Specification_Sheet.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA-S8AM-AL_Warranty.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA-S8AM-AL_Warranty.pdf
