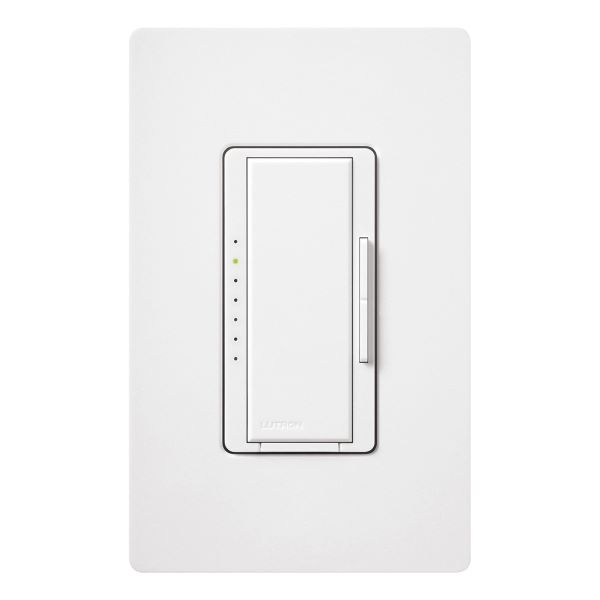

Lutron® MACL-153M-WH

Lutron® Maestro® C.L® MACL-153M-WH 3-Way Designer Style Multi-Location Dimmer Switch, 120 VAC, 1.25 A, 1 Poles, On/Off Operation, White

Brand: Lutron®

Item ID: 398827

MPN: MACL-153M-WH

Login for Price

Features

  • Large tapswitch with a rocker style dimmer for a standard designer wallplate opening
  • Advanced dimming technology designed for compatibility with a broader range of high efficacy bulbs
  • Low end adjustment to accommodate a wide range of bulbs
  • No neutral required for retrofit applications
  • Tapswitch returns load to previous level
  • 100% factory tested
  • True multi-location dimming from every location
  • LED indicate light level and glow softly in the dark
  • Delayed off provides light as you exit the room
  • Line frequency compensation maintains stable light levels despite power line frequency and voltage variations
  • Programming allows customized functions
  • Adjustable low end trim

Description

The Maestro® dimmer provides an easy to operate tap switch that turns lights on/off to your favorite light level. Use the rocker dimmer to adjust lights manually. The delayed fade to off feature gives you 10 to 60 sec to leave the room. Combine with Maest

Lutron® Maestro® C.L® Dimmer Switch, 3-Way Designer Style Multi-Location, Series: MACL-153M, 120 VAC, 1.25 A, 150/600 W Power, 60 Hz Frequency, 1 Pole, CFL/Halogen/Incandescent/LED Lamp, Operation Mode: On/Off, Rocker/Tap Control, NEMA SSL-7A Enclosure, W

Specifications

Amperage Rating

1.25 A

Color

White

Control

Rocker/Tap

Dimensions

4-11/16 in H x 2-15/16 in W x 1-1/8 in D

Enclosure Type

NEMA SSL-7A

Frequency Rating

60 Hz

Lamp Type

CFL/Halogen/Incandescent/LED

Material

Plastic

Mounting Type

Wall

Number of Poles

1

Operation Mode

On/Off

Power Rating

150/600 W

Series

MACL-153M

Temperature Rating

0 to 40 deg C

Type

3-Way Designer Style Multi-Location

Voltage Rating

120 VAC

Standard Approval

UL 1472|CSA C22.2 File No. 184.1|NOM Certified

Application

Indoor, Commercial and Residential Applications

Documentation

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MACL_153M_AL_C_Catalog.pdf

Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA_1000_AL_Full_Engineering_Drawing.pdf

Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MACL_153M_AL_C_Manual.pdf

VIDEO LINK https://youtu.be/7miLIVFYBgA

Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA_1000_AL_Warranty.pdf
