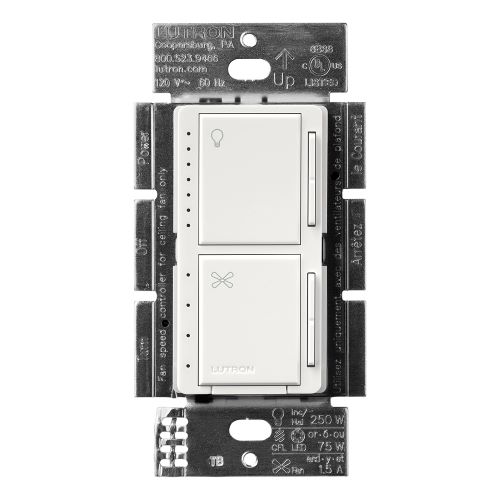

Lutron® MACL-LFQ-WH
Lutron® Maestro® C.L® MACL-LFQ-WH 1-Pole Fan/Light Control, 120 VAC, 1.5 A, 4-Speed/Quiet Operational Mode, White
Brand: Lutron®
Item ID: 465140
MPN: MACL-LFQ-WH
Login for Price
Features
- Tap ON to preset light level/fan speed, tap OFF
- Tap twice for full ON
- Touch rocker to adjust light level/fan speed
- Four fan speeds plus off
- Indicator lights display light level and fan speed
- No canopy module required
- Requires separate wires for fan and light
- No neutral wire required
- Low end adjustment to accommodate a wide range of bulbs
- Front Accessible Service Switch (FASS™) for fixture bulb replacement
- Prevents tripping of AFCI breakers
- 100% factory tested
- Light pull chain off detection, lamp failure detection, short circuit detection/protection
Description
Lutron® Maestro® C.L® Fan/Light Control, 1-Pole, Series: MACL-LFQ, 120 VAC, 1.5 A, 75/250 W Power, 4-Speed/Quiet Operational Mode, Wall Mounting, 32 to 104 deg F, Gloss, White, Environmental Conditions: 0 to 95% Non-Condensing Relative Humidity, 4-11/16 in H x 2-15/16 in W x 1-9/16 in D
Specifications
Amperage Rating |
1.5 A |
Color |
White |
Dimensions |
4-11/16 in H x 2-15/16 in W x 1-9/16 in D |
Environmental Conditions |
0 to 95% Non-Condensing Relative Humidity |
Finish |
Gloss |
Mounting |
Wall |
Operational Mode |
4-Speed/Quiet |
Power Rating |
75/250 W |
Series |
MACL-LFQ |
Temperature Rating |
32 to 104 deg F |
Type |
1-Pole |
Voltage Rating |
120 VAC |
Standard Approval |
UL 1917|UL 1472|CSA C22.2 File No. 184.1|NOM Certified|NEMA SSL7-2015 |
Application |
Indoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MACL_LFQ_AL_Catalog.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MACL_LFQ_AL_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MACL_LFQ_AL_Manual.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA_1000_AL_Warranty.pdf
