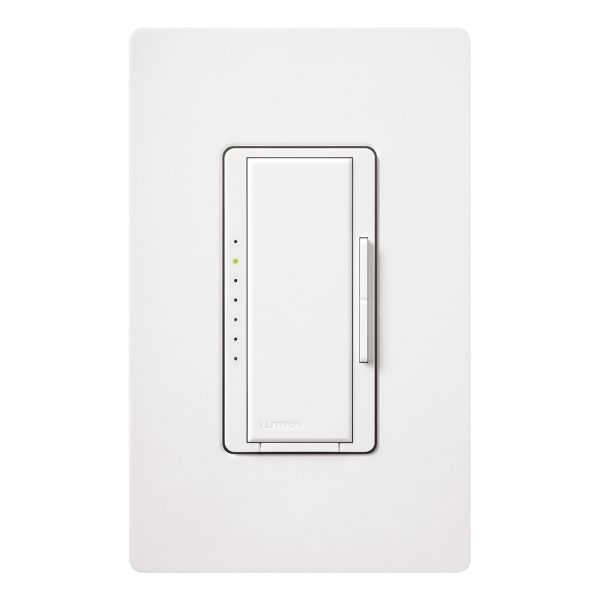

Lutron® MALV-600-WH
Lutron® Maestro® MALV-600-WH Digital Fade Magnetic Low Voltage Dimmer, 120 VAC, 1 Poles, On/Off Operation, White
Brand: Lutron®
Item ID: 21930
MPN: MALV-600-WH
Login for Price
Features
- True multi-location dimming from every location
- Tap on to favorite level, tap off, tap twice for full on
- Touch rocker to adjust light level
- LEDs indicate light level and glow softly in the dark as a locator light
- Delayed off provides light as you exit the room
- Line frequency compensation maintains stable light levels despite power line frequency and voltage variations
- Programming allows customized functions
- Mechanical air gap switch to disconnect load power
- 100% factory tested
Description
The Maestro® dimmer provides an easy to operate tap switch that turns lights on/off to your favorite light level. Use the rocker dimmer to adjust lights manually. The delayed fade to off feature gives you 10 to 60 sec to leave the room. Combine with Maest
Lutron® Maestro® Low Voltage Dimmer, Digital Fade Magnetic, Series: MALV-600, 120 VAC, 450 W Power, 60 Hz Frequency, 1 Pole, Preset Start, Operation Mode: On/Off, Tap/Touch Rocker Control, Wall Mounting, Push-In/Screw Terminal, 0 to 40 deg C, Plastic, Whi
Specifications
Color |
White |
Control |
Tap |
Dimensions |
4.69 in H x 2.94 in W x 0.3 in D |
Frequency Rating |
60 Hz |
Lamp Type |
Magnetic Low Voltage |
Material |
Plastic |
Mounting Type |
Wall |
Number of Poles |
1 |
Operation Mode |
On/Off |
Power Rating |
450 W, 600 VA |
Series |
MALV-600 |
Start Type |
Preset |
Temperature Rating |
0 to 40 deg C |
Terminal Type |
Push-In/Screw |
Type |
Multi-Location |
Voltage Rating |
120 VAC |
Standard Approval |
UL Listed|CSA Certified|NOM Certified |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MAELV_600_AL_Catalog.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MSC_600M_SI_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MSC_600M_SI_Manual.pdf
