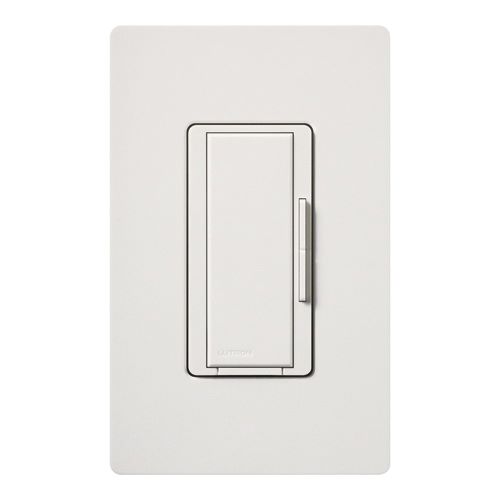

Lutron® MSC-AD-SW
Lutron® Maestro® Wireless® MSC-AD-SW 1-Pole Multi-Location Companion Dimmer With Black, 120 VAC, 8.3 A, 1 Poles, 3-Way Tap On/Off Operation, Snow
Brand: Lutron®
Item ID: 355504
MPN: MSC-AD-SW
Login for Price
Features
- Maestro Wireless® solution provides dimming/ switching of multiple load types, occupancy/vacancy sensing, daylight harvesting and high end trim
- Lutron® patented Clear Connect® RF Technology works through walls and floors
- Incorporates advanced features such as fade ON/fade OFF, high end trim and rapid full-on
- Controls include Front Accessible Service Switch (FASS) for safe lamp replacement
- Two wire dimmers and switches available for retrofit applications
- Power failure memory if power is interrupted, the control will return to its previously set level prior to interruption
Description
The Maestro® Wireless® solution incorporates Maestro® Wireless® load controls, wireless sensors and wireless remote controls, which provide a system that delivers energy savings, convenience and ease of installation. Maestro® Wireless® dimmers and switche
Lutron® Maestro® Wireless® Companion Dimmer, 1-Pole Multi-Location, Series: MSC-AD, 120 VAC, 8.3 A, 600 W Power, 50/60 Hz Frequency, 1 Pole, Fluorescent/Halogen/Incandescent/LED Lamp, Operation Mode: 3-Way Tap On/Off, Wall Mounting, Screw Terminal, 32 to
Specifications
Amperage Rating |
8.3 A |
Color |
Snow |
Control |
Tap Switch |
Dimensions |
2-15/16 in W x 5/16 in D x 4-11/16 in H |
Frequency Rating |
50/60 Hz |
Lamp Type |
Fluorescent/Halogen/Incandescent/LED |
Material |
Metal/Plastic |
Mounting Type |
Wall |
Number of Poles |
1 |
Operation Mode |
3-Way Tap On/Off |
Power Rating |
600 W |
Series |
MSC-AD |
Start Type |
Preset |
Temperature Rating |
32 to 104 deg F |
Terminal Type |
Screw |
Type |
1-Pole Multi-Location |
Voltage Rating |
120 VAC |
Standard Approval |
UL Listed|CSA Certified|Industry Canada Certified|FCC Approved|NOM Certified |
Application |
Indoor Applications |
Documentation
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA_1000_AL_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MSC_AD_BI_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MSC_AD_BI_Specification_Sheet.pdf
