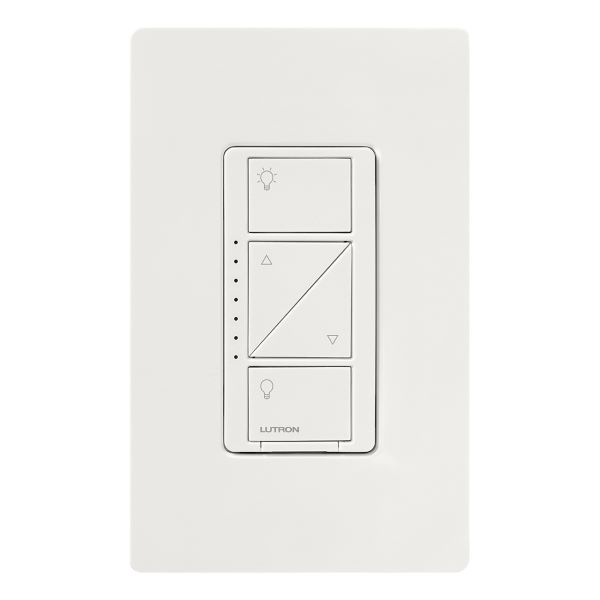

Lutron® PD-10NXD-WH
Lutron® Caseta® Wireless® PD-10NXD-WH 1-Pole Wireless In-Wall Dimmer With Black, Red, Blue, White Wires and Mechanical Switch, 3-Way On/Off Operation, 120 VAC, 60/30 ft, CFL/Halogen/Incandescent/LED Lamp
Brand: Lutron®
Item ID: 436580
MPN: PD-10NXD-WH
Login for Price
Features
- Works with Pico® remote control
- Works with the Lutron® App (via a Smart Bridge™ or Smart Bridge™ Pro)
- Lutron® patented Clear Connect® RF Technology works through walls and floors
- Works with Lutron® Radio Powr Savr™ occupancy and vacancy sensors in standalone applications (sensors do not work with Smart Bridge™ or Smart Bridge™ Pro)
- Neutral connection required for certain load types
- Simple 2-wire installation (no neutral wire required)
- Capable of dimming loads
- Works with Hi-Lume® 1% 2-wire LED drivers (forward-phase only)
- Works with power interfaces (PHPM and GRX TVI)
Description
The Caseta® Wireless® family of dimmers and switches can be controlled directly and remotely when paired with Pico® remote controls providing a system that delivers convenience and ease of installation. Caseta® Wireless® dimmers and switches use Lutron® p
Lutron® Caseta® Wireless® Wireless In-Wall Dimmer, 1-Pole, Series: PD-10NXD, 120 VAC, 250 W Power, CFL/Halogen/Incandescent/LED Lamp, Operation Mode: 3-Way On/Off, 60/30 ft Sensing, 50/60 Hz Frequency, NEMA 4/10 Enclosure, Wall Mounting, Screw Terminal, 3
Specifications
Amperage Rating |
5 A |
Color |
White |
Dimensions |
2-15/16 in L x 5/16 in W x 4-11/16 in H |
Enclosure Type |
NEMA 4/10 |
Finish |
Gloss |
Frequency Rating |
50/60 Hz |
Lamp Type |
CFL/Halogen/Incandescent/LED |
Mounting Type |
Wall |
Operation Mode |
3-Way On/Off |
Power Rating |
250 W |
Sensing Range |
60/30 ft |
Series |
PD-10NXD |
Temperature Rating |
32 to 104 deg F |
Terminal Type |
Screw |
Type |
1-Pole |
Voltage Rating |
120 VAC |
Standard Approval |
cULus Listed|Industry Canada Certified|FCC Approved|NOM Certified|IFTEL Certified |
Documentation
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_PD_10NXD_BL_Full_Engineering_Drawing.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_P_BDG_PKG2W_Specification_Sheet.pdf
