Lutron® Caseta® Wireless® PD-5WS-DV-WH 2-Wire RF Switch, 120/277 VAC, 5/3 A, 1 Poles, 3-Way On/Off Operation, White
Brand: Lutron®
Item ID: 427752
MPN: PD-5WS-DV-WH
Login for Price
Features
Description
The Caseta® Wireless® family of dimmers and switches can be controlled directly and remotely when paired with Pico® remote controls providing a system that delivers convenience and ease of installation. Caseta® Wireless® dimmers and switches use Lutron® p
Lutron® Caseta® Wireless® RF Switch, 2-Wire, Series: PD-5WS-DV, 120/277 VAC, 5/3 A, 600 W Power, 50/60 Hz Frequency, 1 Pole, Fluorescent/LED Lamp, Operation Mode: 3-Way On/Off, Tap Control, Wall Mounting, Lead Wire Terminal, 32 to 104 deg F, Metal/Plastic
Specifications
Amperage Rating |
5/3 A |
Color |
Natural White |
Control |
Tap |
Dimensions |
4-11/16 in H x 2-15/16 in W x 5/16 in D |
Finish |
Gloss |
Frequency Rating |
50/60 Hz |
Lamp Type |
Fluorescent/LED |
Material |
Metal/Plastic |
Mounting Type |
Wall |
Number of Poles |
1 |
Operation Mode |
3-Way On/Off |
Power Rating |
600 W |
Series |
PD-5WS-DV |
Temperature Rating |
32 to 104 deg F |
Terminal Type |
Lead Wire |
Type |
2-Wire |
Voltage Rating |
120/277 VAC |
Standard Approval |
cULus Listed|Industry Canada Certified|CC Approved|NOM Certified|IFTEL Certified|NEMA 410|IEC 61000-4-2|IEEE C62.41 |
Documentation
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_PD_5S_DV_IV_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_PD_5WS_DV_BL_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_P_BDG_PKG2W_Specification_Sheet.pdf

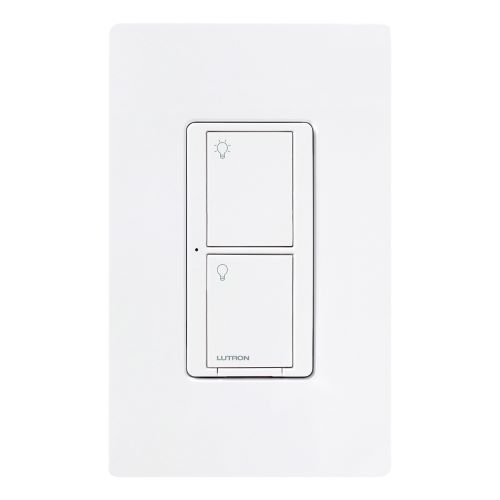

Lutron® PD-5WS-DV-WH
