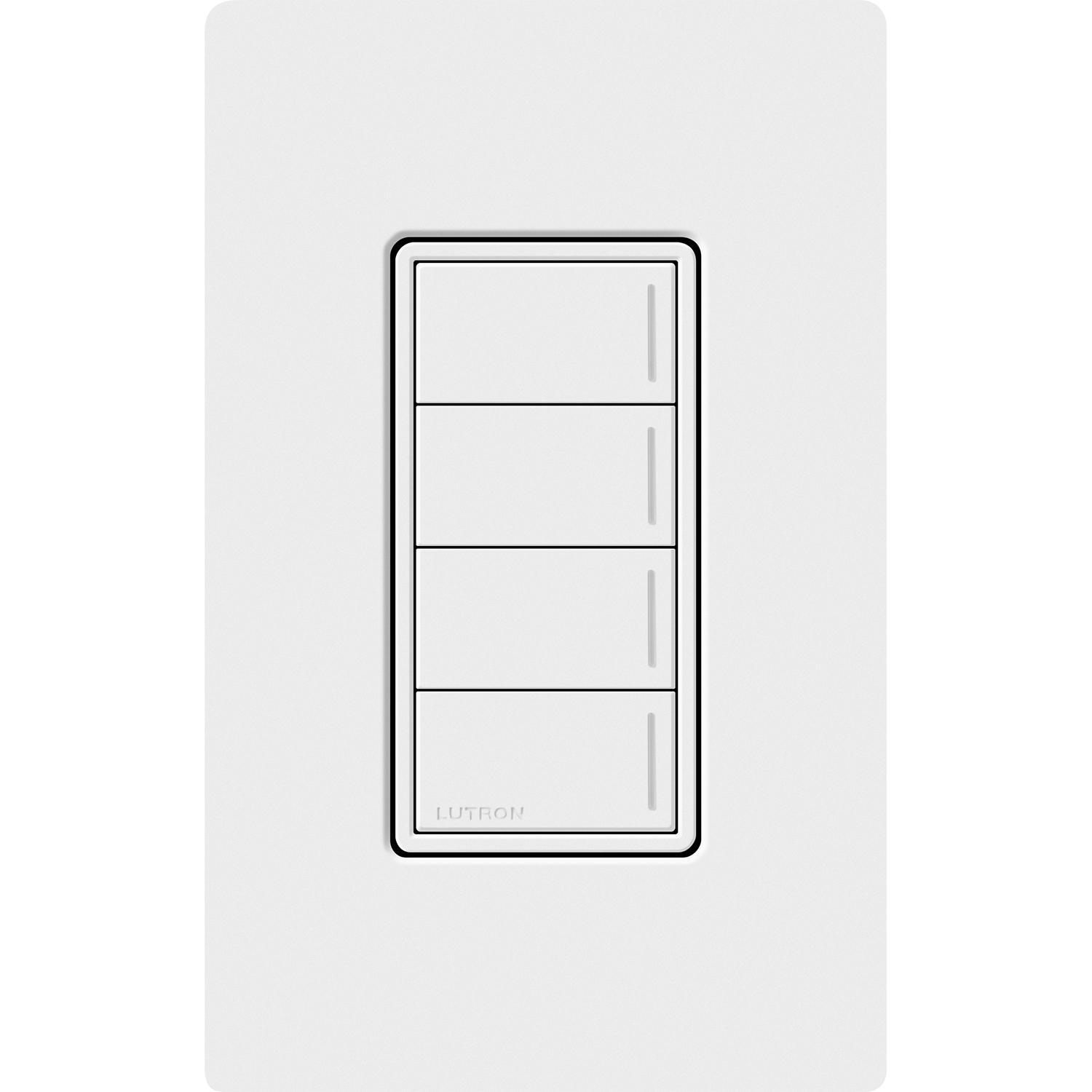

Lutron® RRST-W4B-WH
Lutron® RRST-W4B-WH RadioRA3 4 Button Sunnata Keypad, 120 to 277 V, 0.25 A, On/Off/Programmed Operation
Brand: Lutron®
Item ID: 513852
MPN: RRST-W4B-WH
Login for Price
Features
- One keypad can control groups of devices such as dimmers, light switches, ceiling fans, automated shades and other integrated devices like audio systems
- Soft glow helps homeowner find the button in the dark
- Light bar brightness can be customized, including off if preferred in places like the bedroom
- Buttons can be configured either for integrated scene control or as simple on/off toggle switch control for a light or group of lights
- Each button can be customized with personalized text or icons
- Have changeable front plastics in multiple colors to match any decor (keypads only)
- Lights gradually fade on and off with customizable fade rate
- RF connectivity enables schedule, scene and other system-controlled events
Description
Lutron®, RRST-W4B-WH, Sunnata Keypad, 4 Button, Series: RadioRA3, 120 to 277 V, 0.25 A, 0.25 to 1.5 W Power, 50, 60 Hz Frequency, Operation Mode: On/Off/Programmed, 4-Button Control, Wall Mounting, 32 to 104 deg F, 4.7 in H x 2.95 in W Dimensions
Specifications
Amperage Rating |
0.25 A |
Control |
4-Button |
Dimensions |
4.7 in H x 2.95 in W |
Frequency Rating |
50, 60 Hz |
Mounting Type |
Wall |
Operation Mode |
On/Off/Programmed |
Power Rating |
0.25 to 1.5 W |
Series |
RadioRA3 |
Temperature Rating |
32 to 104 deg F |
Type |
4 Button |
Voltage Rating |
120 to 277 V |
Standard Approval |
cULus|NOM|FCC|IC|IFT |
Application |
For Operation of Lights, Shades/Draperies, Motorized Screens and Many Other Devices |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_RRST_W4B_WH_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_RRST_W4B_WH_Specification_Sheet.pdf
VIDEO LINK
https://lutron.widen.net/content/4y4cm6o0wa/mp4/RadioRA-3-Processor-Video.mp4?w=2048
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_RRST_W4B_WH_Warranty.pdf
