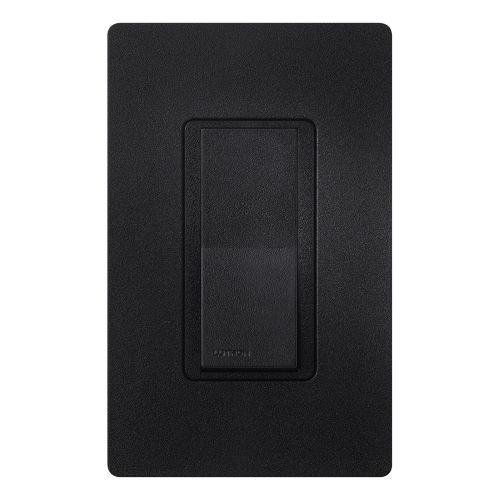

Lutron® SC-3PS-MN
Lutron® Claro® Diva® Satin Colors® SC-3PS-MN Designer Style Paddle Switch With (1) Copper Screw and (2) Brass Screws, 120/277 VAC, 15 A, 60 Hz
Brand: Lutron®
Item ID: 222997
MPN: SC-3PS-MN
Login for Price
Features
- Large paddle switch with a captive linear slide dimmer for a standard designer wallplate opening
- Full family of products for most lighting sources
- Easy installation in any home
- Square law dimming
- Power failure memory
- Electrostatic discharge tested
- RFI suppression
- Precise color matching
- Mechanical air gap switch to disconnect load power
- No derating if ganged
- Use with any 15 A load
Description
Simple and elegant solution designed to match your existing designer style switches and accessories. Easily turn the lights on and off with the paddle switch. While the lights are on, use the sleek slide control to adjust lights to your perfect level. The
Lutron® Claro® Diva® Satin Colors® Paddle Switch, Designer Style, Series: SC-3PS, 120/277 VAC, 15 A Electrical Rating, 60 Hz Frequency, Paddle Actuator, ON/OFF Switch Function, 3-Way Operational Mode, Side and Rear Push-In Wired Connection, Wall Mounting,
Specifications
Actuator |
Paddle |
Color |
Midnight |
Connection |
Side and Rear Push-In Wired |
Dimensions |
4.69 in H x 2.94 in W x 1.31 in D |
Electrical Ratings |
15 A at 120/277 VAC |
Environmental Conditions |
32 to 104 deg F Ambient Temperature, 90% Non-Condensing Relative Humidity |
Frequency Rating |
60 Hz |
Material |
Thermoplastic |
Mounting |
Wall |
Operational Mode |
3-Way |
Series |
SC-3PS |
Switch Function |
ON/OFF |
Terminal Type |
Screw |
Type |
Designer General Purpose |
Standard Approval |
UL Listed|CSA Certified|NOM Certified |
Application |
For general purpose switching of all sources and motor loads |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVSC_10P_SI_Catalog.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_SC_3PS_SI_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_SC_3PS_SI_Manual.pdf
