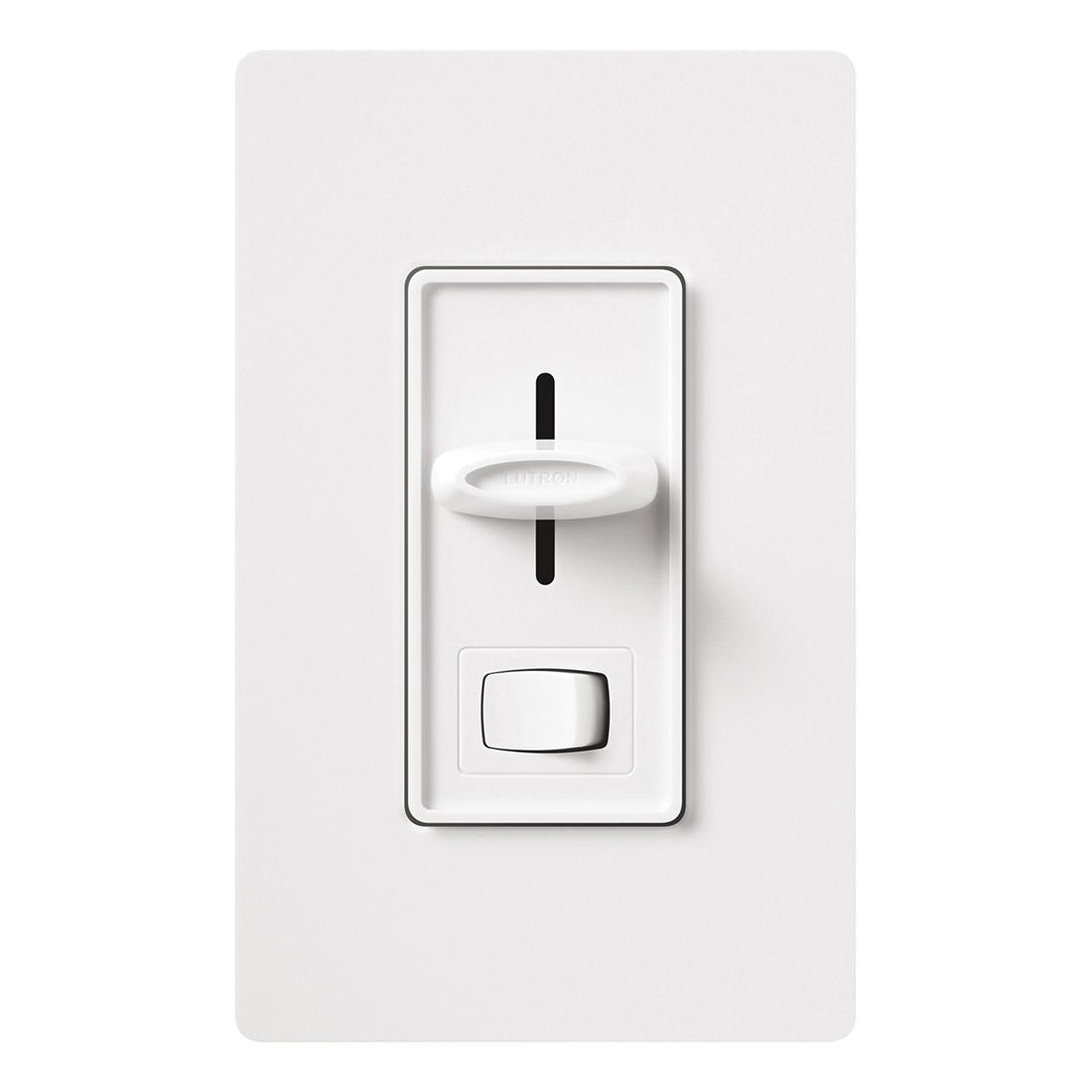

Lutron® SELV-303P-WH
Lutron® Skylark® SELV-303P-WH Electronic Low Voltage Dimmer With On/Off Switch, 120 VAC, 3-Way On/Off Operation, White
Brand: Lutron®
Item ID: 22429
MPN: SELV-303P-WH
Login for Price
Features
- Rocker switch returns light to your favorite light level
- Slide up to brighten, down to dim (adjust light to suit any activity)
- 1000 W preset dimmers have voltage compensation which maintains stable light levels, despite line voltage variations
- 100% factory tested
Description
Skylark® is the original designer style slide dimmer from Lutron®. It features a convenient rocker switch that turns the lights on and off and an easy to use slide control to adjust the light for any activity. The Skylark® replaces any designer style swit
Lutron® Skylark® Low Voltage Dimmer, Electronic, Series: SELV-303P, 120 VAC, 300 W Power, 60 Hz Frequency, Preset Start, Operation Mode: 3-Way On/Off, Rocker/Slide Control, Wall Mounting, Lead Wire Terminal, 0 to 40 deg C, Plastic, White, 4.69 in H x 2.94
Specifications
Color |
White |
Control |
Rocker/Slide |
Dimensions |
4.69 in H x 2.94 in W x 0.3 in D |
Frequency Rating |
60 Hz |
Material |
Plastic |
Mounting Type |
Wall |
Operation Mode |
3-Way On/Off |
Power Rating |
300 W |
Series |
SELV-303P |
Start Type |
Preset |
Temperature Rating |
0 to 40 deg C |
Terminal Type |
Lead Wire |
Type |
Electronic |
Voltage Rating |
120 VAC |
Standard Approval |
UL Listed |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_S_1000_AL_Catalog.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_CTELV_303P_IV_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVELV_303P_AL_Manual.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_MA_1000_AL_Warranty.pdf
