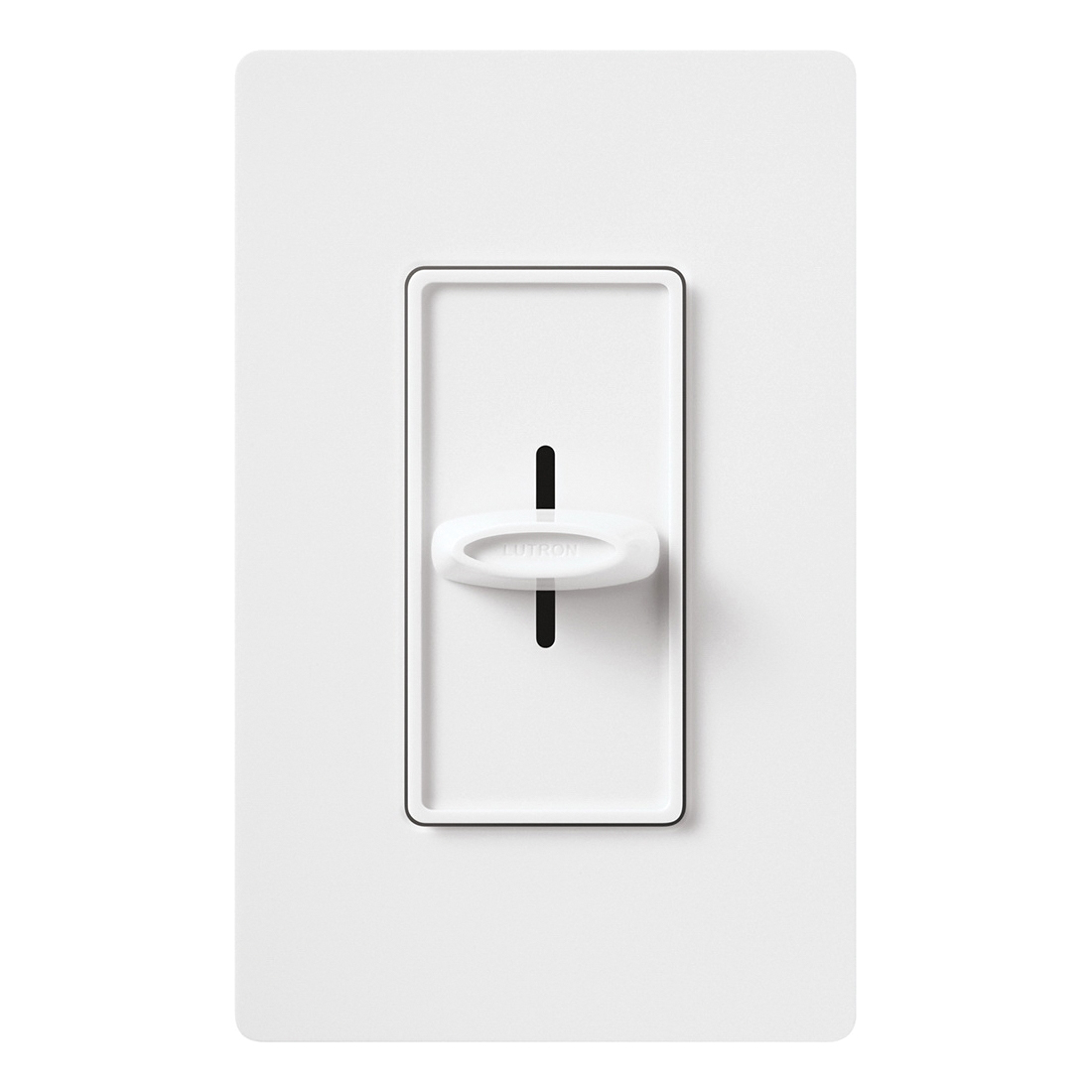

Lutron® SFS-5E-WH
Lutron® Skylark® SFS-5E-WH 1-Pole Designer Style Slide-to-Off Fan Speed Control, 120 VAC, 5 A, Variable Operational Mode, White
Brand: Lutron®
Item ID: 22449
MPN: SFS-5E-WH
Login for Price
Features
- Slide up to on/increase speed, down to decrease/off
- 3-quiet fan speeds for increased comfort
- For use with only one ceiling paddle fan
Description
Lutron® Skylark® Fan Speed Control, 1-Pole Designer Style Slide-to-Off, Series: SFS-5E, 120 VAC, 5 A, Fully Variable Operational Mode, Wall Mounting, 0 to 40 deg C, Gloss, White, Environmental Conditions: <90% Non-Condensing Relative Humidity, 4.69 in
Specifications
Amperage Rating |
5 A |
Color |
White |
Dimensions |
4.69 in H x 2.94 in W |
Environmental Conditions |
0 to 90% Non-Condensing Relative Humidity |
Finish |
Gloss |
Material |
Plastic |
Mounting |
Wall |
Operational Mode |
Variable |
Series |
SFS-5E |
Temperature Rating |
0 to 40 deg C |
Type |
1-Pole Designer Style Slide-to-Off |
Voltage Rating |
120 VAC |
Standard Approval |
UL Listed|cUL Listed |
Application |
Indoor Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_SFS_5E_IV_Catalog.pdf
Full Engineering Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_DVFSQ_LFH_IV_C_Full_Engineering_Drawing.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_SFS_5E_AL_Manual.pdf
