Lutron® ST-AS-WH

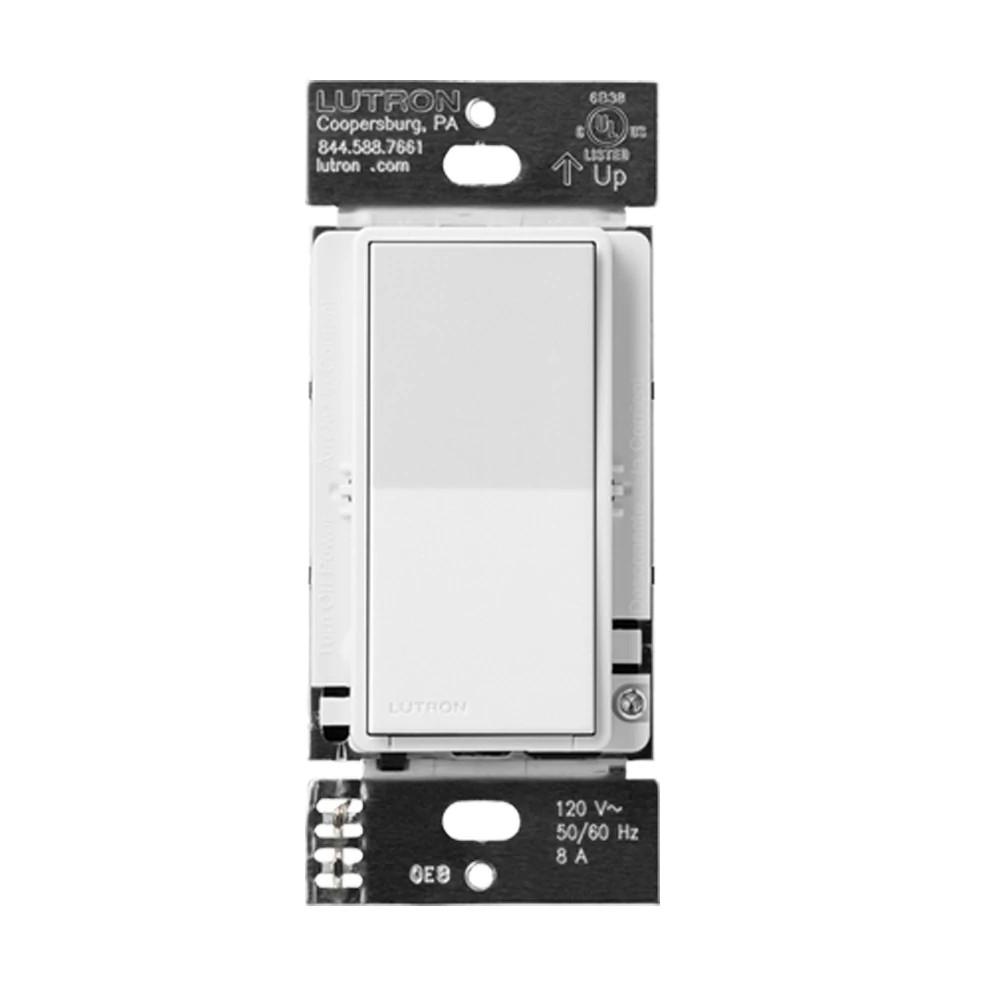

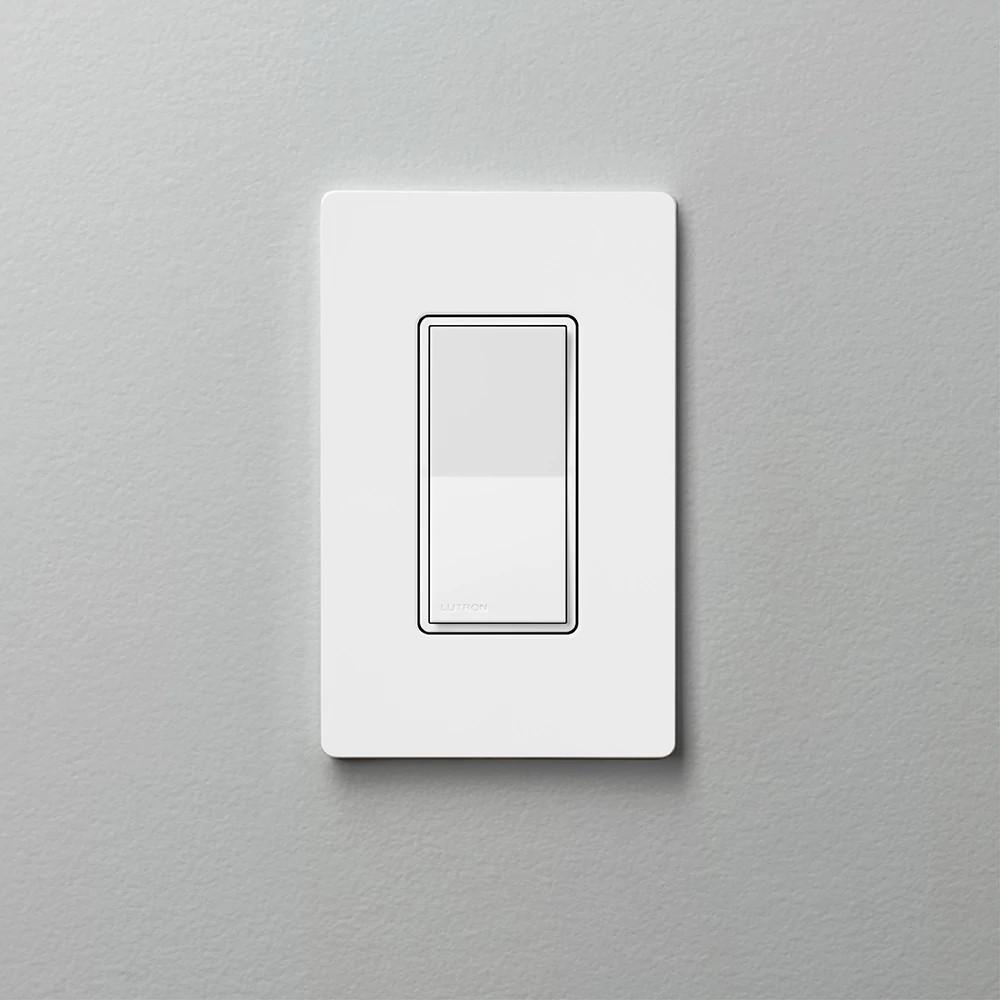

Lutron® ST-AS-WH Sunnata Accessory Switch, 120 V, 6 A, 1 Poles, On/Off Operation, White
Brand: Lutron®
Item ID: 515567
MPN: ST-AS-WH
Login for Price

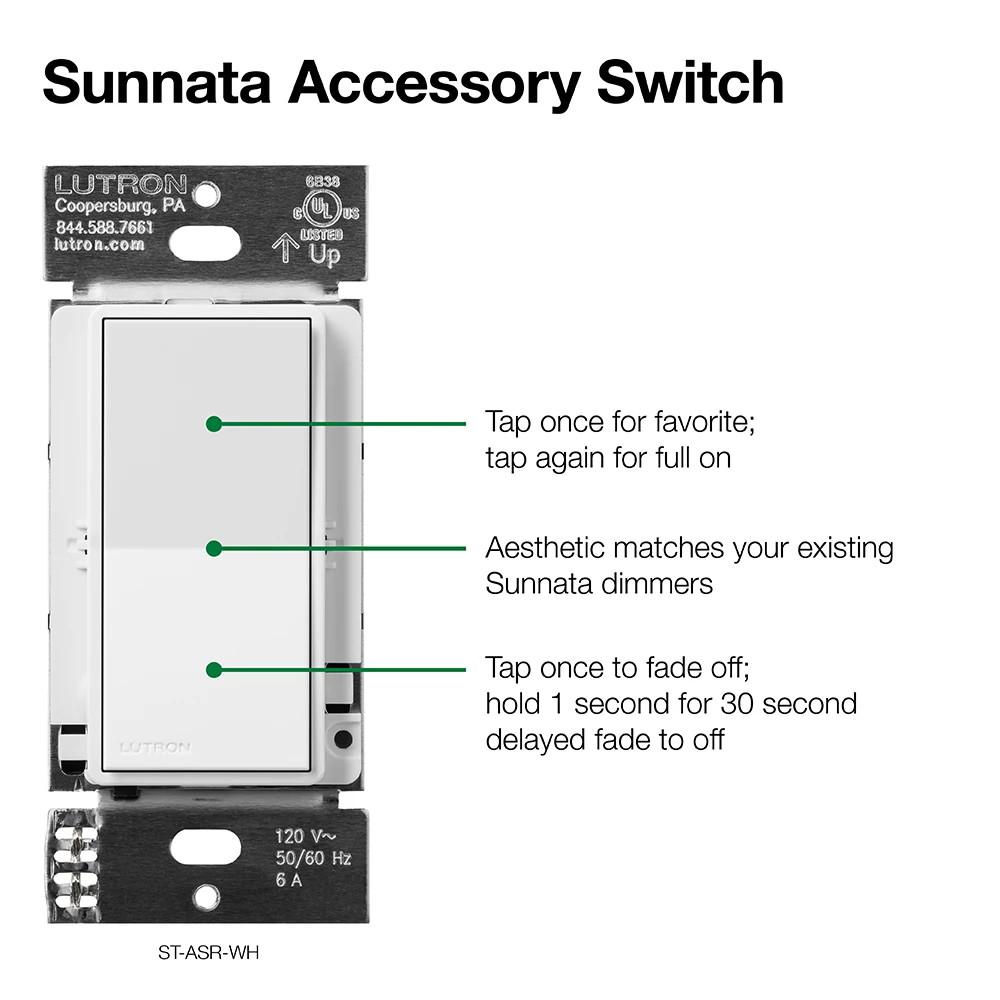

Features
- Contain MyLevel Personalization Advanced Feature Mode to customize the control
- Low-end and high-end adjustments to accommodate a wide range of bulbs
- White light bar provides locator light to easily find the switch in the dark
- Brightness of locator light is adjustable through MyLevel Personalization
- Locator light can also be turned off
Description
Lutron®, ST-AS-WH, Accessory Switch, Series: Sunnata, 120 V, 6 A, 60 Hz Frequency, 1 Pole, CFL/Halogen/Incandescent/LED Lamp, Switch Start, Operation Mode: On/Off, Wall Mounting, Screw Terminal, 32 to 104 deg F, White, 4-11/16 in H x 2-15/16 in W Dimensions
Specifications
Amperage Rating |
6 A |
Color |
White |
Dimensions |
4-11/16 in H x 2-15/16 in W |
Frequency Rating |
60 Hz |
Lamp Type |
CFL/Halogen/Incandescent/LED |
Mounting Type |
Wall |
Number of Poles |
1 |
Operation Mode |
On/Off |
Series |
Sunnata |
Start Type |
Switch |
Temperature Rating |
32 to 104 deg F |
Terminal Type |
Screw |
Voltage Rating |
120 V |
Standard Approval |
UL Listed |
Application |
For use with Sunnata LED and Dimmers STCL-153M |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_ST_AS_WH_Instruction_Installation_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_STCL_153MH_WH_User_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lutron_STCL_153MH_WH_Specification_Sheet.pdf
