Lutron® ST-PRO-N-MN

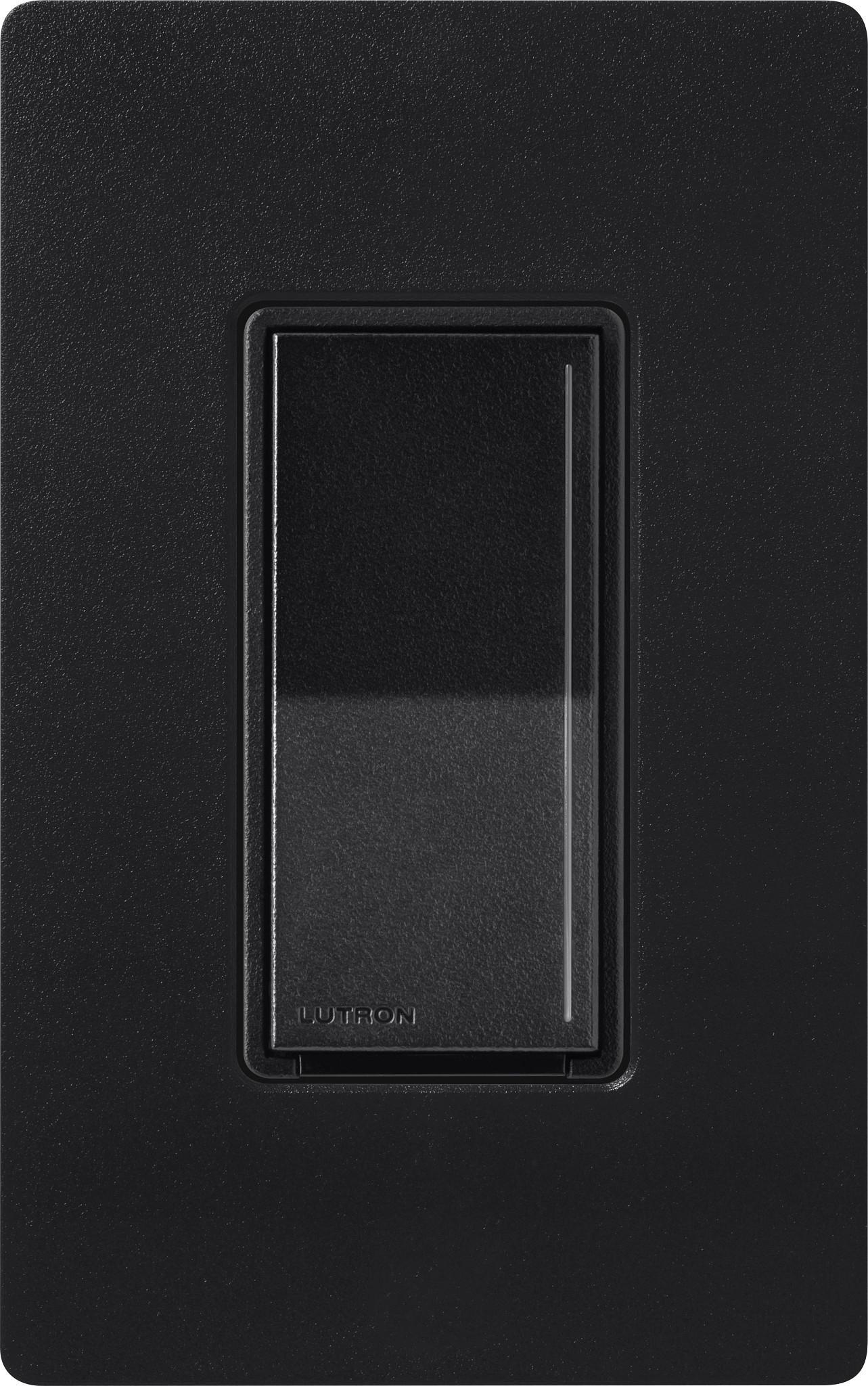

Lutron® ST-PRO-N-MN Sunnata Pro Dimmer Switch, 120 V, 1 Poles, Midnight

Brand: Lutron®

Item ID: 562204

MPN: ST-PRO-N-MN

Login for Price

Features

  • Works with up to 250W of dimmable LEDs, 500W ELV/Incandescent/Halogen bulbs, or 400VA MLV, Neutral wire required

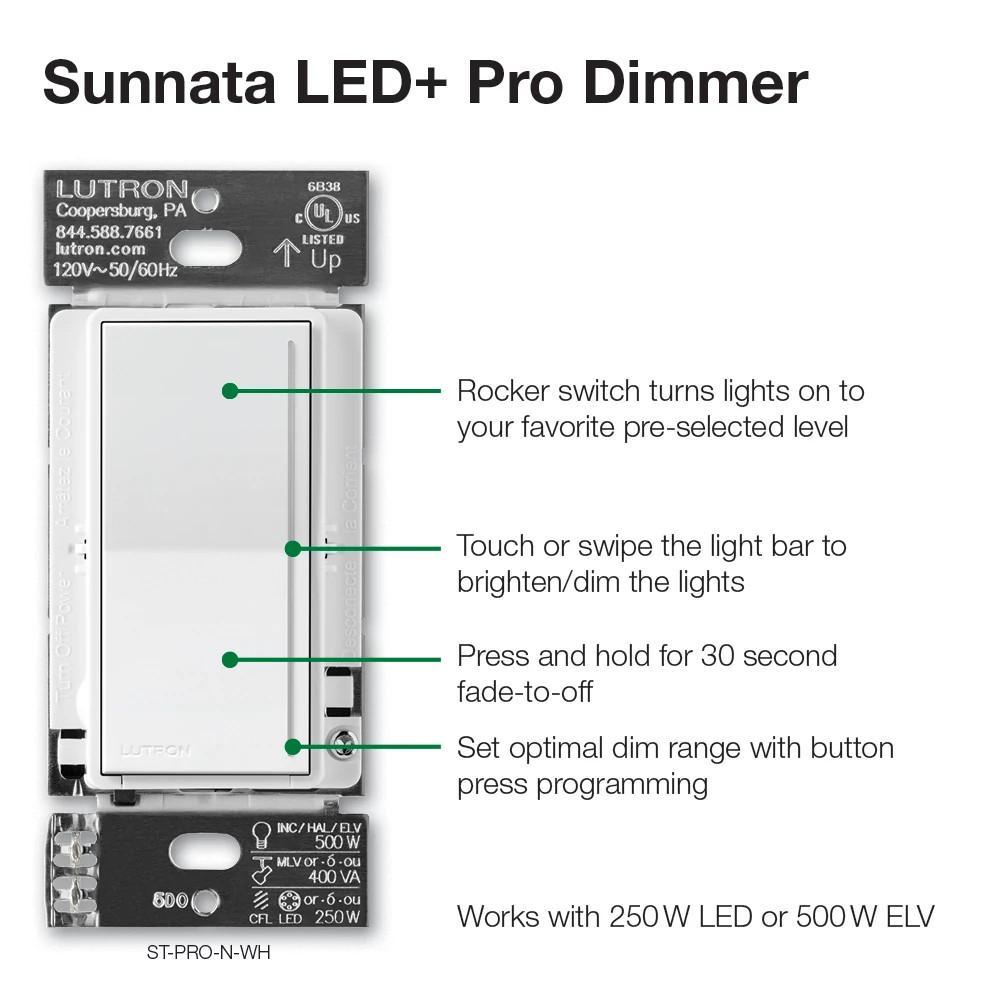

  • Touch or swipe the white light bar to brighten/dim your lights, this lightbar also doubles as a locator light to help find the dimmer switch in the dark

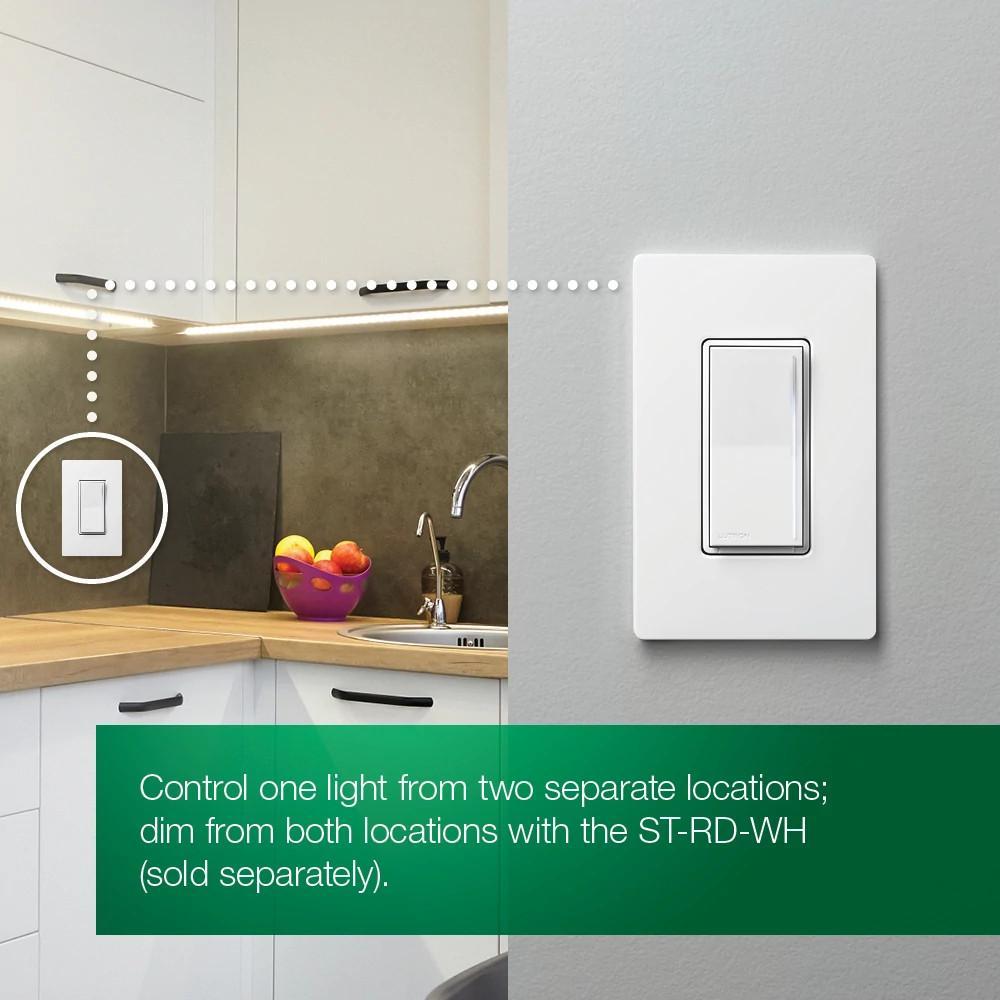

  • Dim from every location by adding Sunnata PRO companion dimmer switches (ST-RD-xx, sold separately)

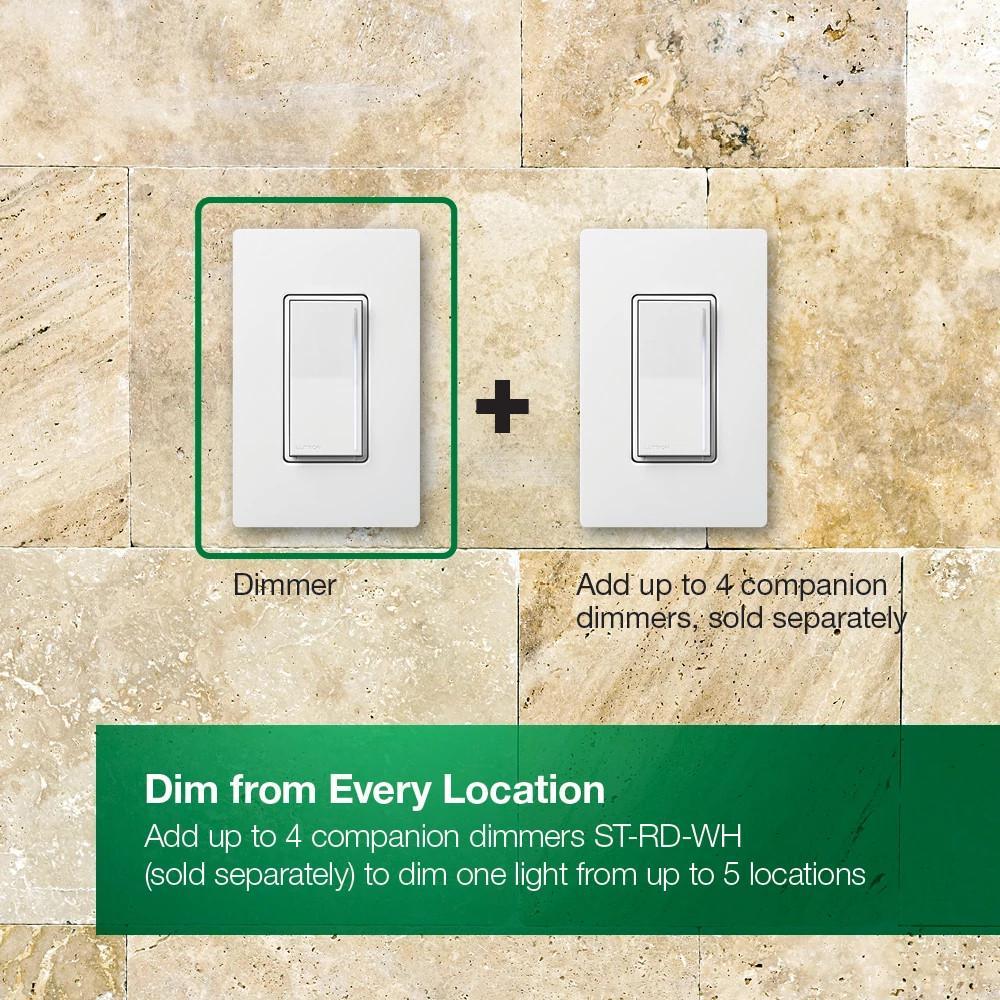

  • Add up to four PRO companion dimmers to dim from up to five locations (Companion dimmers will match the settings and lightbar status of the main dimmer)
  • Utilizes screw terminals, not for use with 3-way mechanical switches

Description

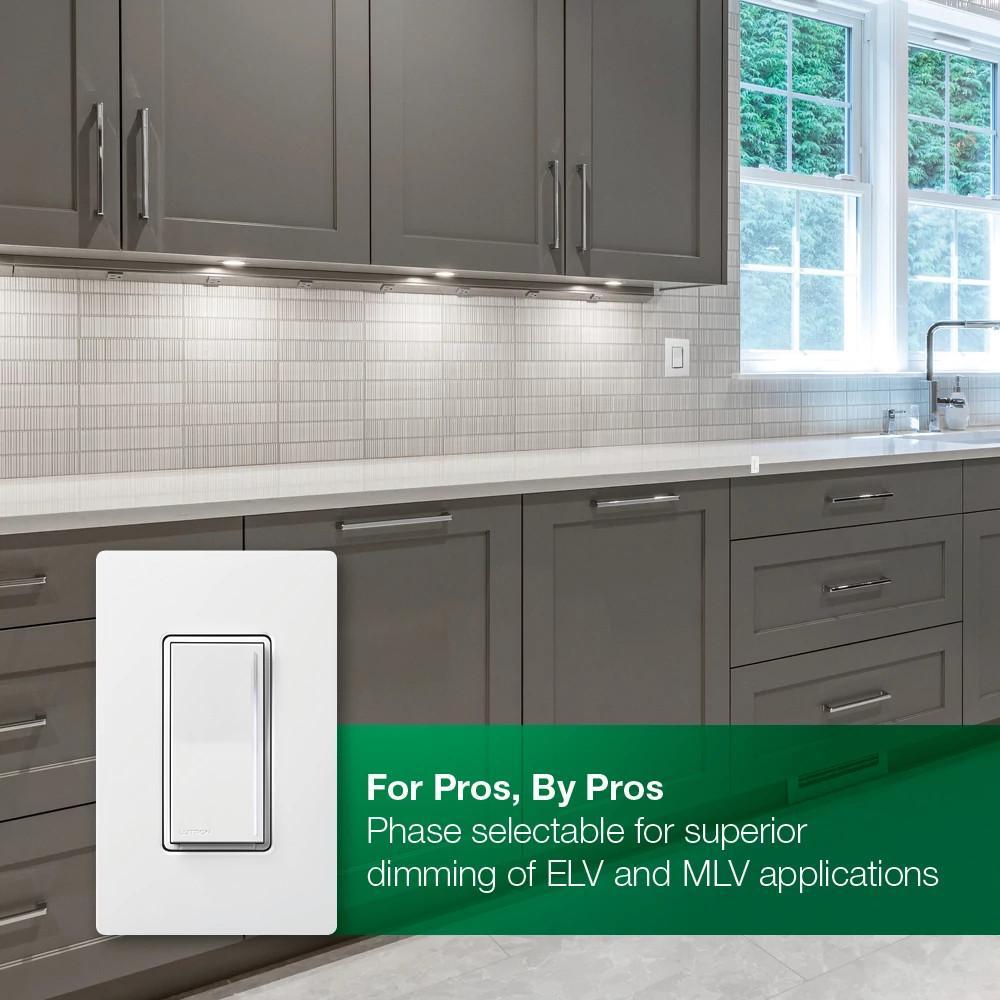

The Sunnata PRO LED+ Touch dimmer switch with LED+ Advanced Technology provides superior dimming for up to 250W LED, 500W Incandescent/Halogen/ELV, and 400VA MLV. This innovative decorator-style LED+ dimmer switch features phase selectable dimming for a wider compatibility range among electronic low voltage, magnetic low voltage loads, as well as LED, halogen, and incandescent bulbs. The Sunnata PRO LED+ Dimmer features a large intuitive paddle to turn lights On/Off and a sleek light bar you can swipe across to dim/brighten your lights. Dim from every location by adding the new Sunnata PRO companion dimmer switch (ST-RD-xx, sold separately). Add up to four additional PRO companion dimmers to control from up to five locations - companions will match programming and lightbar status of main dimmer. Neutral wire required. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Lutron®, ST-PRO-N-MN, Dimmer Switch, Series: Sunnata Pro, 120 V, 50, 60 Hz Frequency, 1 Pole, LED Lamp, Paddle ON/OFF Control, NEMA SSL-7A Enclosure, Wall Mounting, Screw Terminal, 32 to 104 deg F, Midnight, 4.69 in H x 2.94 in W Dimensions

Specifications

Color

Midnight

Control

Paddle ON/OFF

Dimensions

4.69 in H x 2.94 in W

Enclosure Type

NEMA SSL-7A

Frequency Rating

50, 60 Hz

Lamp Type

LED

Mounting Type

Wall

Number of Poles

1

Operation Mode

On/Off

Series

Sunnata Pro

Temperature Rating

32 to 104 deg F

Terminal Type

Screw

Voltage Rating

120 V

Standard Approval

NEMA SSL-7A Compliant|UL Listed

Application

For Lighting Control
