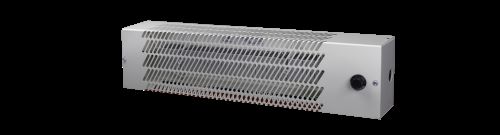

QMARK® WHT500

• It is designed to provide automatic, 24 hr protection
• 240/208/120 VAC voltage rating
• Install it anywhere heat is needed to prevent pipe and other water, hydraulic fluid or oil-filled equipment from freezing
• Quick 240/208 V field conversion to 120 V
• Set the thermostat at any desired level and leave it
• The heater cabinet encloses the element and consists of neutral grey epoxy painted galvanized steel for corrosion protection
• The thermostat is completely contained within the control box
• All power supply and control wiring terminates in the tamperproof control box, no live voltage in the element area
• 1.8/2.1/4.2 A ampere rating
• There are no moving parts
• It is maintenance free and can be left unattended all winter long - ideal for remote locations
• Steel sheath, aluminum finned element provides fast heat dissipation and a long life because of cooler sheath temperatures

This utility heater provide long-lasting protection to keep sensitive equipment running strong. Install it in well house, utility room, relay station or other areas where pipe and machinery are vulnerable to freezing.

QMARK®, WHT500, Utility Heater, Electric, 1708 Btu/hr Capacity, 120/240 VAC, 1.8/4.2 A, 0.376/0.5 kW Power, 1 ft 9 in Width, 1-1/2 in Depth, 5 in Height, 40 to 70 deg C, Galvanized Steel, White, Epoxy Painted
