Milbank® U3042-XL-QG-BLG-LIS

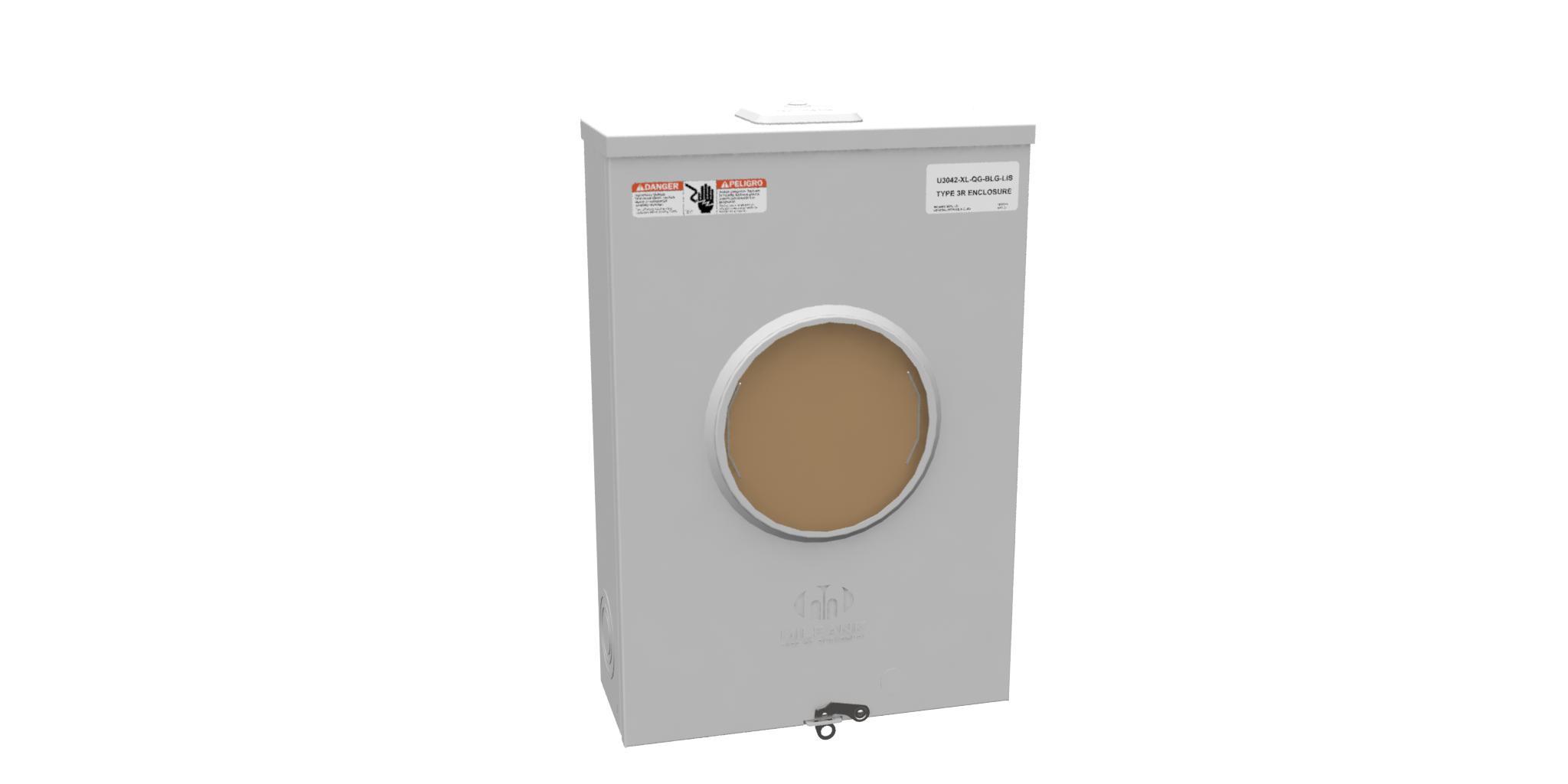

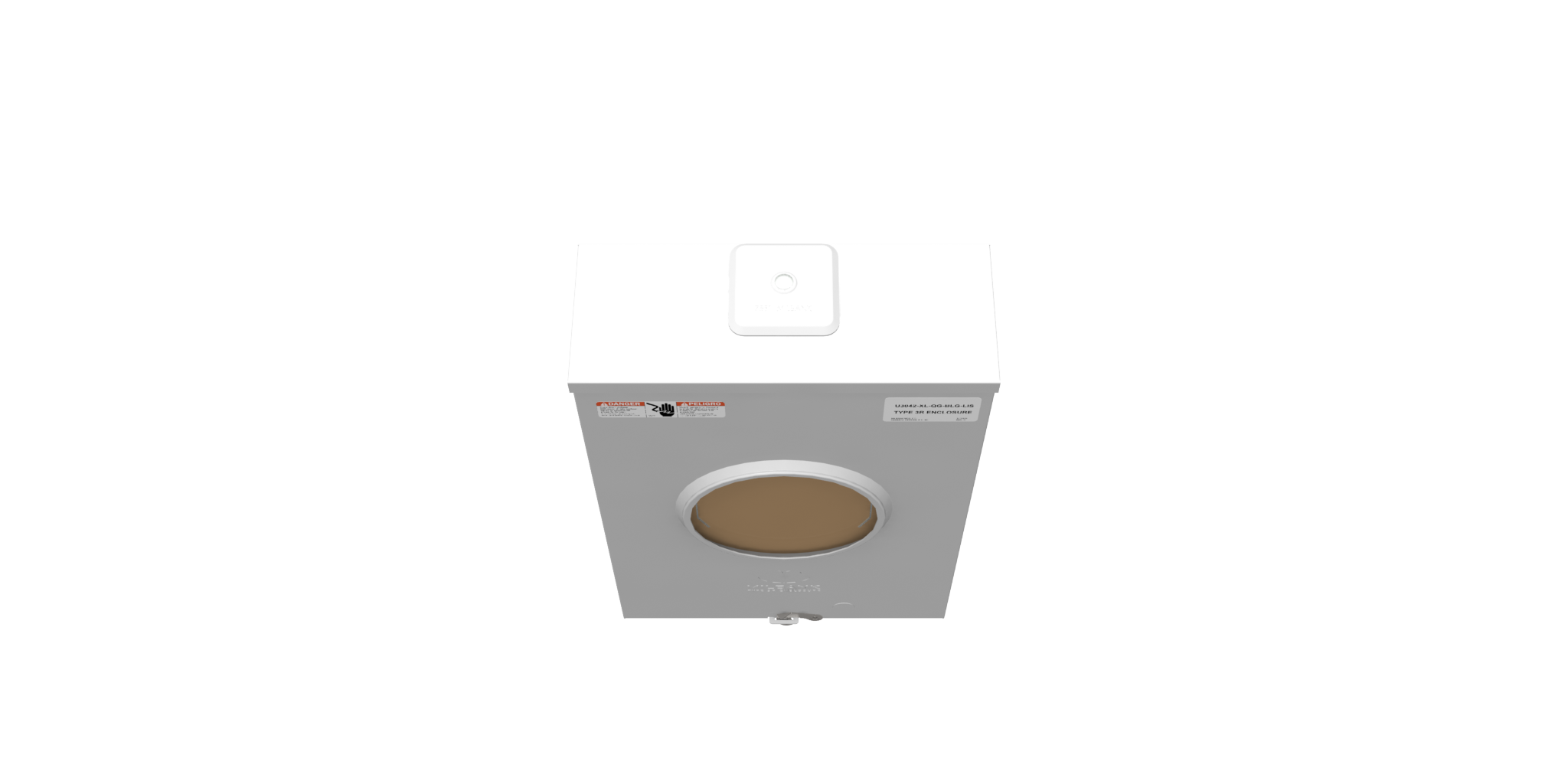

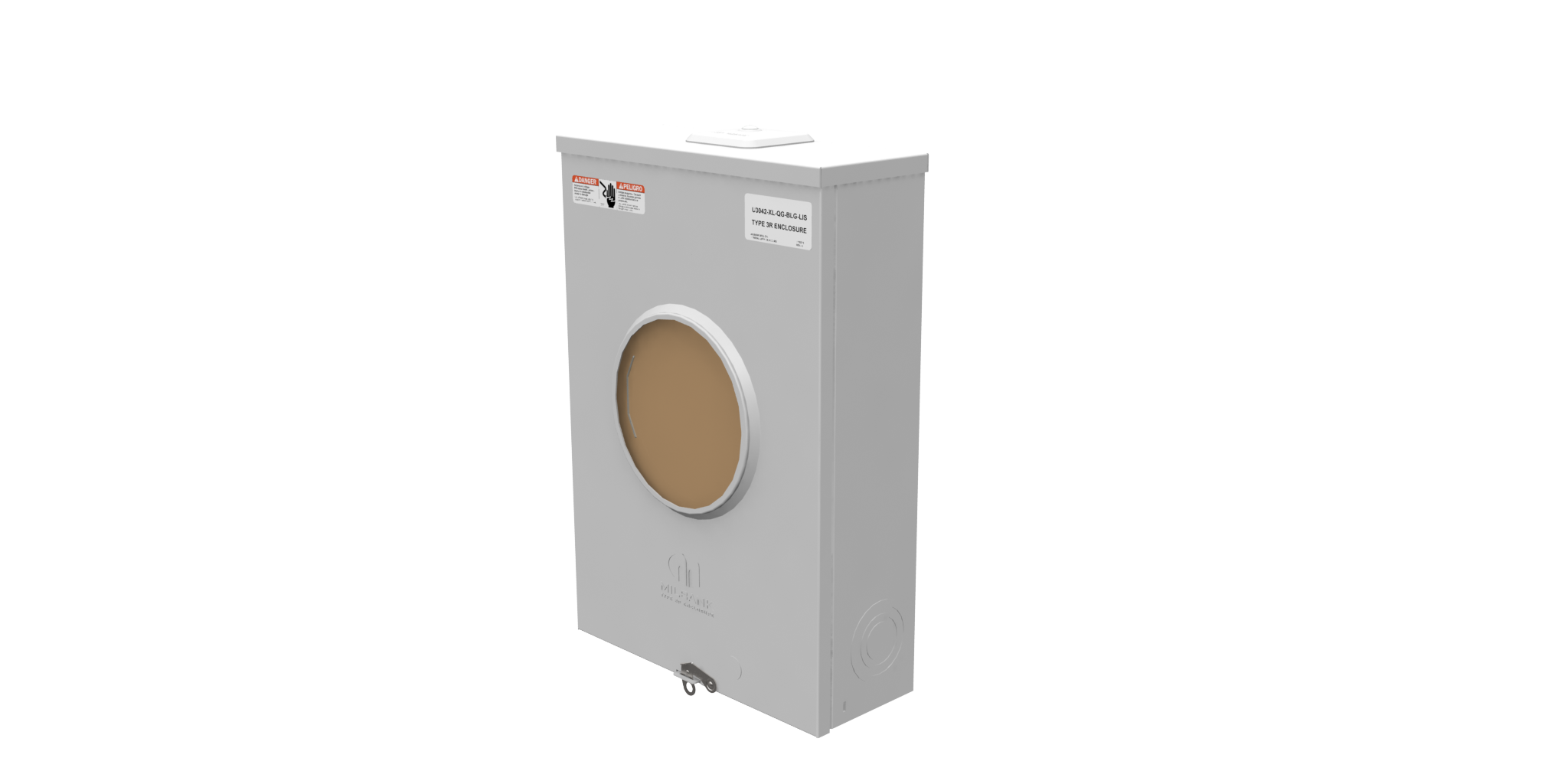

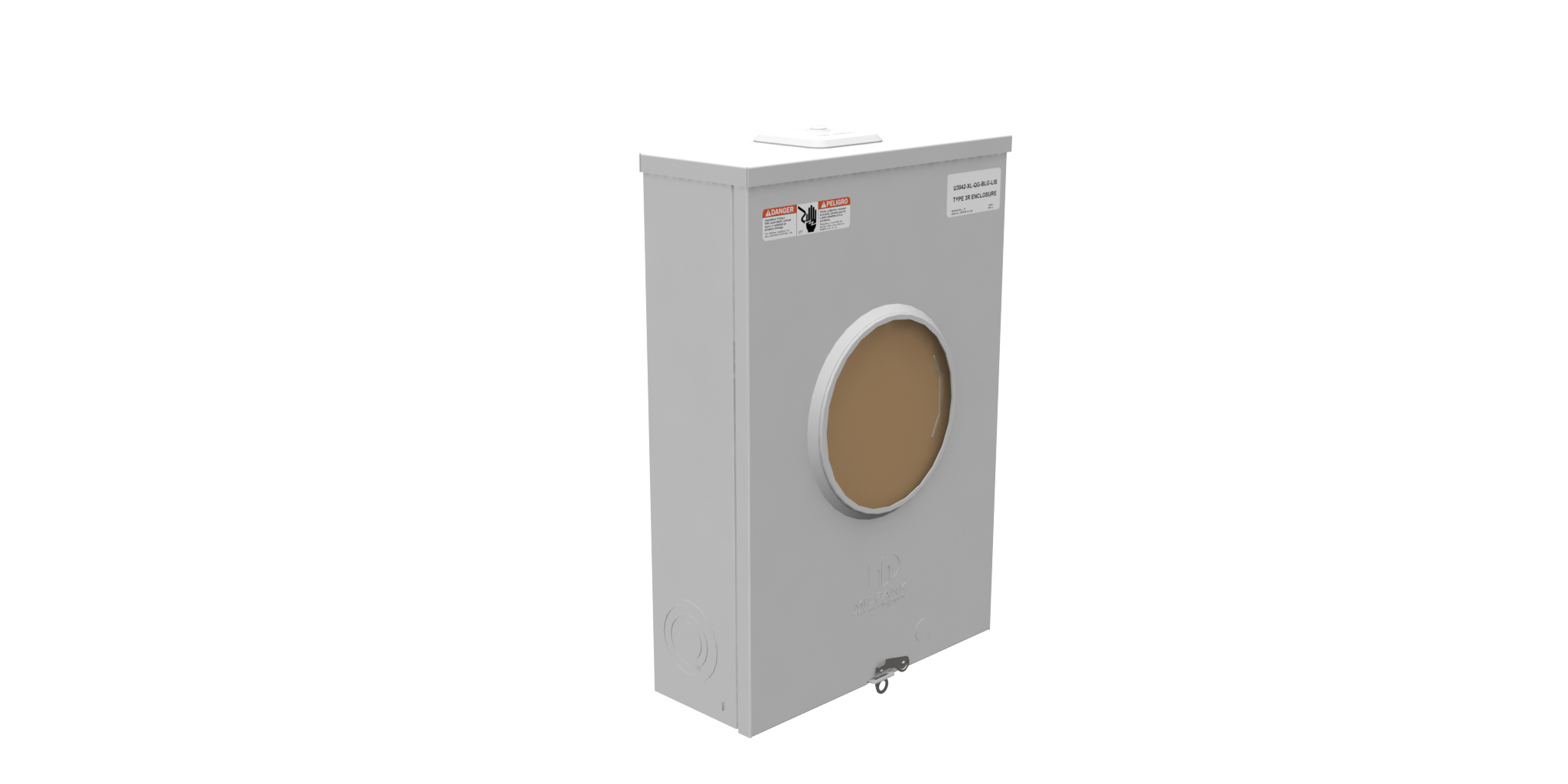

Milbank® U3042-XL-QG-BLG-LIS Ring Less Meter Socket, 600 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Brand: Milbank®
Item ID: 24053
MPN: U3042-XL-QG-BLG-LIS
Login for Price
Features

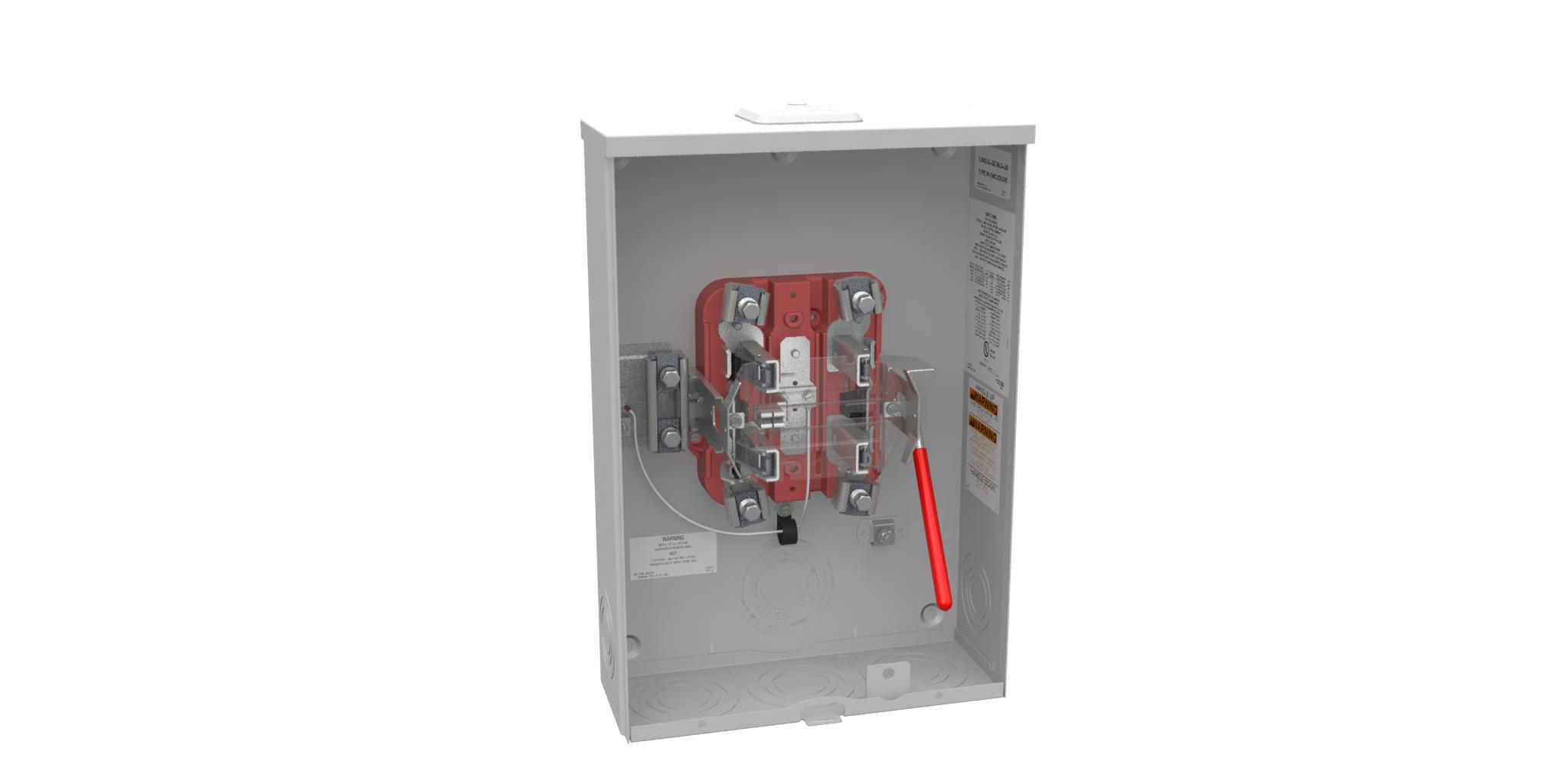

- Lay-in line-side and load-side terminal
- G90 galvanized steel enclosure material with powder coat finish
Description
Milbank® Meter Socket, Ring Less, 600 VAC, 200 A, 1 Phase, 60 Hz, Overhead/Underground Feed, 5 Jaws, 6 AWG to 350 kcmil Wire, Closing Plate, Lay-In Terminal, Surface Mount, NEMA 3R, 13 in W x 4-7/8 in D x 19 in H
Specifications
Amperage Rating |
200 A |
Dimensions |
13 in W x 4-7/8 in D x 19 in H |
Enclosure Type |
NEMA 3R |
Feed Type |
Overhead/Underground |
Frequency Rating |
60 Hz |
Hub Type |
Closing Plate |
Mounting Type |
Surface |
Number of Jaws |
5 |
Phase |
1 |
Terminal Type |
Lay-In |
Type |
Ring Less |
Voltage Rating |
600 VAC |
Wire Size |
6 AWG to 350 kcmil |
Standard Approval |
UL Listed|PROP65: This product can expose you to Chromium (hexavalent compounds), which is known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov |
Application |
For meter mounting base |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0cb8e587a387f064f4e0e76c8e936289d3925ca7d51bb42e953f18c0aa35f1ba.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milbank_U2594-X-K7-ALT_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milbank_U2594-X-K7-ALT_Instruction_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milbank_U3042-XL-QG-BLG-LIS_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milbank_U3042-XL-QG-BLG-LIS_Instruction_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_26e4c43f666d13c105de8a45f15bc2c830fd6f251b1293b836cb844d16baab52.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4a88ff5977743c29198c477c61a953ac83057bbd59e48472aa0f3453229bf302.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milbank_U2594-X-K7-ALT_Warranty_Information.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milbank_U2594-X-K7-ALT_Warranty_Information.pdf
