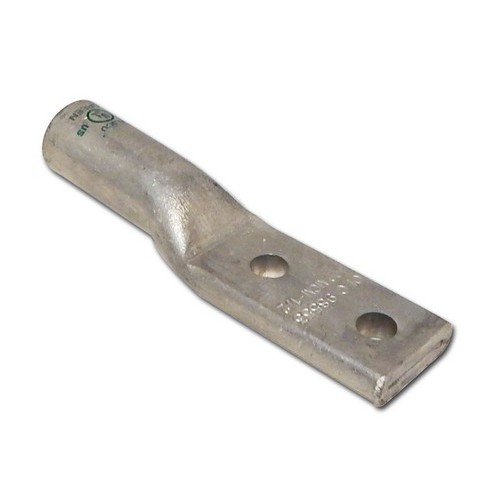

MORRIS 93126 2-Hole Compression Lug, 500 kcmil Aluminum/Copper Conductor, 1/2 in Stud, Aluminum
Brand: MORRIS
Item ID: 456692
MPN: 93126
Login for Price
Features
- AL9CU dual-rated 2-hole compression lugs accept both aluminum and copper conductors
- Connector barrel is coated with oxide inhibitor and capped
- Made of high conductivity seamless aluminum
- Uniform bright electro tin plating resists corrosion, reduces contact resistance and gives you maximum conductivity
- Color-coded for easy identification
- Marked with die index
- Crimp marks indicate proper crimp locations
- Listed for 35 kv when properly installed
Description
MORRIS Compression Lug, 2-Hole, Aluminum/Copper Conductor, 500 kcmil Conductor, 35 kV, 1/2 in Stud, 3.12 in L x 1.79 in W x 0.47 in THK Tongue, 6-1/2 in Overall Length, Long Barrel, 0.84 in ID x 1.32 in OD x 2.5 in L Barrel, 1-3/4 in Hole Spacing, 90 deg C, 0.51 in Mounting Hole, Aluminum, Pink
Specifications
Barrel Size |
0.84 in ID x 1.32 in OD x 2.5 in L |
Barrel Type |
Long |
Color |
Pink |
Conductor Size |
500 kcmil |
Conductor Type |
Aluminum/Copper |
Material |
Aluminum |
Mounting Hole Size |
0.51 in |
Overall Length |
6-1/2 in |
Specifications |
1-3/4 in Hole Spacing |
Stud Size |
1/2 in |
Temperature Rating |
90 deg C |
Tongue Size |
3.12 in L x 1.79 in W x 0.47 in THK |
Type |
2-Hole |
Voltage Rating |
35 kV |
Standard Approval |
UL 486B|cULus Listed|PROP65: CALIFORNIA RESIDENTS ONLY Certain chemicals contained within products may cause cancer or reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For use with copper or aluminum cables |
