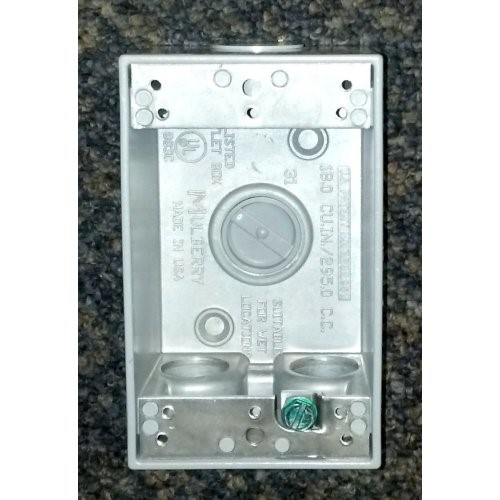

Mulberry 30209
Mulberry Royal Mountie™ 30209 Weatherproof Box With Permanently Attached Mounting Lug, Die Cast Aluminum, 18 cu-in, 1 Gang, 4 Outlets, 4-1/2 in H x 2-3/4 in W x 2 in D
Brand: Mulberry
Item ID: 24599
MPN: 30209
Login for Price
Features
- All 1-gang boxes available with or without attached swivel lugs
- Heavy duty die cast aluminum, 0.094 in THK, with powder finish
- For use in all indoor and outdoor damp or wet locations, with all standard FS, outlet, lamp holder or splice box covers
- Ground screw and 2 close-up plugs supplied with each box
- Pre-tapped ground screw hole
- (2) one end, (1) other end, (1) back outlets/location
Description
Mulberry Royal Mountie™ Weatherproof Box, 4 Outlets, 1 Gang, 1/2 in Hub, Lug Mount, Vertical Mount, 18 cu-in, Die Cast Aluminum, Powder Coated, Gray, 4-1/2 in H x 2-3/4 in W x 2 in D
Specifications
Capacity |
18 cu-in |
Color |
Gray |
Dimensions |
4-1/2 in H x 2-3/4 in W x 2 in D |
Finish |
Powder Coated |
Hub Size |
1/2 in |
Material |
Die Cast Aluminum |
Mounting Orientation |
Vertical |
Mounting Type |
Lug |
Number of Gangs |
1 |
Number of Outlets |
4 |
Standard Approval |
ARRA Compliant|Buy American Act Compliant|CSA Certified|Federal Specification AA-50563|UL Listed |
Application |
For all indoor and outdoor, damp/wet location applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Mulberry_30201_Catalog.pdf
