Bridgeport® 232-DC2

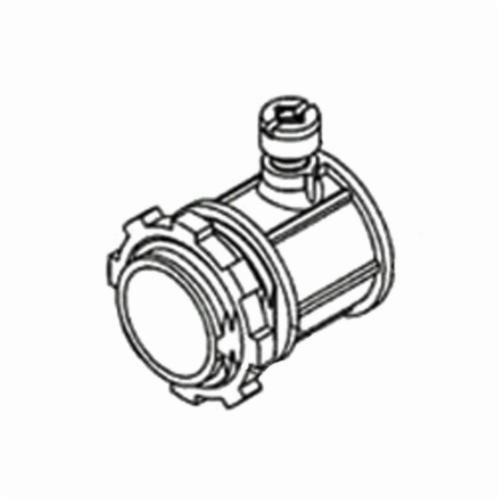

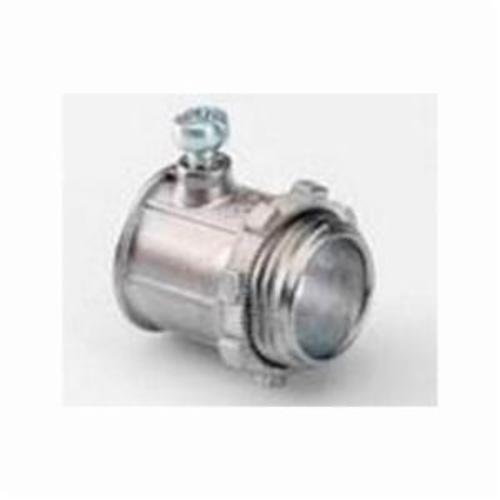

Bridgeport® 232-DC2 Non-Insulated Set Screw Connector, 1 in Trade, For Use With EMT Conduit, Die Cast Zinc, Ball Burnished/Mirror Smooth
Brand: Bridgeport®
Item ID: 9244
MPN: 232-DC2
Login for Price
Features
- Furnished with tri-drive slot/Phillips/Robertson head screws
Description
Think Orange: Zinc Advantage -Error-free Performance - meets same stringent UL tests as steel. Bridgeport zinc EMT fittings set the standard for EMT.
Bridgeport® Set Screw Connector, Non-Insulated, 1 in, 1.44 in Dia, For Use With: EMT Conduit, Threaded Mount, Die Cast Zinc, Ball Burnished/Mirror Smooth, 1.63 in L
Specifications
Diameter |
1.44 in |
Dimensions |
1.63 in L |
Finish |
Ball Burnished/Mirror Smooth |
Material |
Die Cast Zinc |
Mounting Type |
Threaded |
Suitable For Use With |
EMT Conduit |
Trade Size |
1 in |
Type |
Non-Insulated |
Standard Approval |
RoHS Compliant|UL 514B File No. E24001|CSA File No. LR39354|NEMA FB-1|Federal Specification A-A-50553 |
Application |
Used to join EMT to box or enclosure |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_80cf2633a2cbe7e544bbb21c4056c2a5f987049e71aea0cbcbb99b75a46ef6b3.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_1008_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_1008_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a3dd7574e2fa34c57469b18d2185446eefbaf5562f31e4185175395f4708cc7a.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_232-DC2_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_232-DC2_Specification_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_035d7662a705f7c015716fd373d5d1ebc7c1541ecd28d96f15c32c30e2370974.pdf
VIDEO LINK
https://www.youtube.com/watch?v=9fHZLLd_sfs
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_1008_Warranty.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_1008_Warranty.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c0e71c30e941583d8b1c5d41cde64d07d63e79009dc261b90da84933082109c4.pdf
Bridgeport® 232-DC2
