Bridgeport® 243-DC

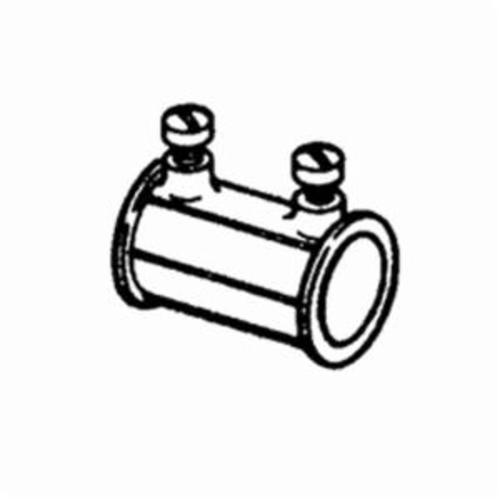

Bridgeport® 243-DC Setscrew Conduit Coupling, 1-1/4 in, For Use With EMT Conduit, Die Cast Zinc, Ball Burnished/Mirror Smooth
Brand: Bridgeport®
Item ID: 9266
MPN: 243-DC
Login for Price
Features
- Furnished with tri-drive slot/Phillips/Robertson head screws
- Concretetight
- 1/2 through 1-1/4 in concretetight, 1-1/2 through 4 in concretetight when taped and 2 through 4 in for aluminum or steel EMT
Description
Think Orange: Zinc Advantage -Error-free Performance - meets same stringent UL tests as steel. Bridgeport zinc EMT fittings set the standard for EMT.
Bridgeport® Conduit Coupling, Setscrew, 1-1/4 in, For Use With: EMT Conduit, Die Cast Zinc, Ball Burnished/Mirror Smooth, 1.88 in OD x 2.5 in L
Specifications
Dimensions |
1.88 in OD x 2.5 in L |
Finish |
Ball Burnished/Mirror Smooth |
Material |
Die Cast Zinc |
Size |
1-1/4 in |
Suitable For Use With |
EMT Conduit |
Type |
Setscrew |
Standard Approval |
RoHS Compliant|UL File No. E24001|CSA LR39354 |
Application |
Used to join 2 lengths of EMT |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_80cf2633a2cbe7e544bbb21c4056c2a5f987049e71aea0cbcbb99b75a46ef6b3.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_1008_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_1008_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a3dd7574e2fa34c57469b18d2185446eefbaf5562f31e4185175395f4708cc7a.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_243-DC_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_243-DC_Specification_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e3a58c061d1a564dceed8a7c775bb3101c8fe1a1476c21b5f278950d1c83c0bb.pdf
VIDEO LINK
https://www.youtube.com/watch?v=9fHZLLd_sfs
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_1008_Warranty.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_1008_Warranty.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c0e71c30e941583d8b1c5d41cde64d07d63e79009dc261b90da84933082109c4.pdf
