Bridgeport® 38ASP

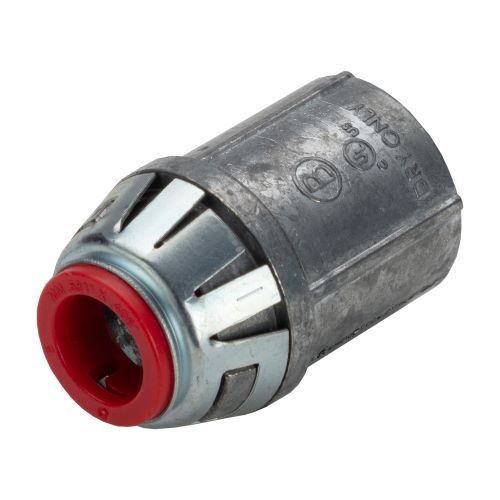

Bridgeport® E-Z Lock™ 38ASP Connector, 3/8 in Trade, 1/2 in Knockout, 0.43 to 0.61 in Dia Cable Openings, Die Cast Zinc
Brand: Bridgeport®
Item ID: 223753
MPN: 38ASP
Login for Price
Description
Recommended cable types 14/2 to 10/3 AWG (0.43 to 0.61 in Dia) steel or aluminum AC/MC/MCI-A/HCF/HCFMCI-A/MC-PCS. Also listed for use with 3/8 in FMC. Simply snap cables into connector and snap assembly into electrical box. Integral internal spring steel locking tabs fasten cable or conduit. Suitable for maintaining grounding continuity when installed in accordance with the NEC.
Bridgeport® E-Z Lock™ Connector, 3/8 in Trade, 1/2 in Knockout, Cable Openings: 0.43 to 0.61 in Dia, AC/MC/MCI-A/HCF/HCFMCI-A/MC-PCS/FMC Cable, Snap-In Connection, Die Cast Zinc, 105 deg C, 0.467 in Dia x 1.421 in L Dimensions
Specifications
Cable Openings |
0.43 to 0.61 in Dia |
Cable Type |
AC/MC/MCI-A/HCF/HCFMCI-A/MC-PCS/FMC |
Connection Type |
Snap-In |
Dimensions |
0.467 in Dia x 1.421 in L |
Knockout Size |
1/2 in |
Material |
Die Cast Zinc |
Temperature Rating |
105 deg C |
Trade Size |
3/8 in |
Standard Approval |
A-A-50552 Federal Specification|cULus Listed|NEMA FB-1|REACH Compliant|RoHS 2002/95/EC|UL E20534|UL-514B|USGBC Certified |
Application |
For use in dry location |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a1279b25a5375c6271906f641c4e0a2d1609b5eece03a1823e858130a9550be8.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a3dd7574e2fa34c57469b18d2185446eefbaf5562f31e4185175395f4708cc7a.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9269f02365568587a00abe11bc8c5cc10f317170dc81d1f15a85b0a73bc0e3de.pdf
VIDEO LINK
https://www.youtube.com/watch?v=9fHZLLd_sfs
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c0e71c30e941583d8b1c5d41cde64d07d63e79009dc261b90da84933082109c4.pdf
