Bridgeport® 4157-DC

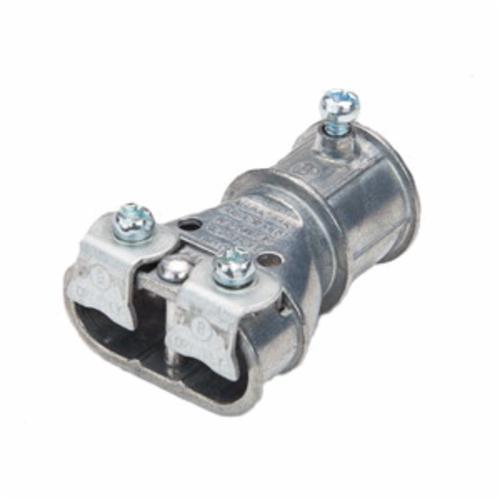

Bridgeport® Mighty-Merge® 4157-DC Patented Conduit Combination Coupling, 3/8 to 3/4 in, For Use With EMT/FMC Conduit, AC/MC Cable, Die-Cast Zinc
Brand: Bridgeport®
Item ID: 376499
MPN: 4157-DC
Login for Price
Features
- Set screw type transitional fitting ideal for commercial and institutional facilities
- New and improved features a tapered body and a rivet to separate cables during installation
- A labor savings, compared to the traditional junction box or fitting assembly installation
- When using AC/MC/FMC cable simply remove the armor and expose the conductors to the desired length needed to reach the device box or enclosure
- The inspection holes will provide a visual end stop for the cable or flex conduit
- The use of anti-short bushings is recommended
- Tighten the steel strap screws between the armor convolutions and for the 3/4 in EMT conduit
- EMT to AC/MC transition coupling
Description
Bridgeport® fittings are engineered to perform better than other fittings getting the job done fast and done right. It's the inherent functional advantages and consistency of our product along with its legendary quality and service that make our fittings the right choice. Time Saver: stop wasting time and space, eliminate the box. Installs in 1/3 the time with 1/3 material cost!.

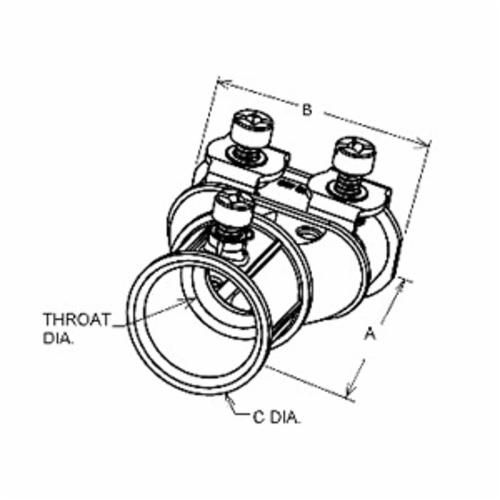

Bridgeport® Mighty-Merge® Conduit Combination Coupling, Patented, 3/8 to 3/4 in Size, For Use With: EMT/FMC Conduit, AC/MC Cable, Die-Cast Zinc, 5/8 in Dia x 2-3/8 in L x 1-3/4 in W Dimensions
Specifications
Dimensions |
5/8 in Dia x 2-3/8 in L x 1-3/4 in W |
Material |
Die-Cast Zinc |
Size |
3/8 to 3/4 in |
Suitable For Use With |
EMT/FMC Conduit, AC/MC Cable |
Type |
Patented |
Standard Approval |
UL Listed File No. E20534|RoHS Compliant |
Application |
For use to securely join EMT to 2 armored or metal clad cables and 3/8 in flexible metal conduit and in dry location applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6a0eb680f1f606633ad764de2e3b1c94a493427ccc0a2d3f1253423da1edcb00.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_1008_RoHS.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_1008_RoHS.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a3dd7574e2fa34c57469b18d2185446eefbaf5562f31e4185175395f4708cc7a.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_4157-DC_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_4157-DC_Specification_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_57f18ae0eaf1d643b58ee635fe387a34c9b024a7fff022ae3c568c8582fcbbd9.pdf
VIDEO LINK
https://www.youtube.com/watch?v=9fHZLLd_sfs
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_1008_Warranty.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bridgeport_1008_Warranty.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c0e71c30e941583d8b1c5d41cde64d07d63e79009dc261b90da84933082109c4.pdf
