Bridgeport® 664-DC2

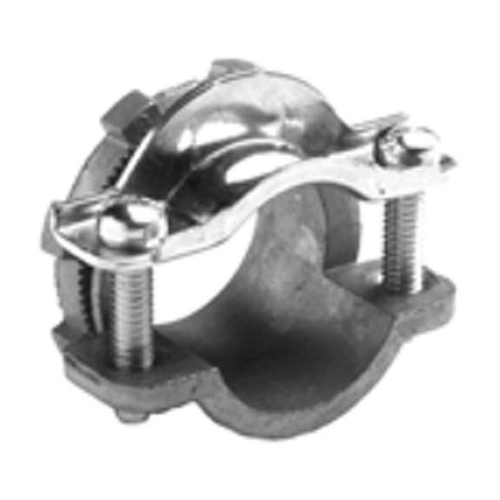

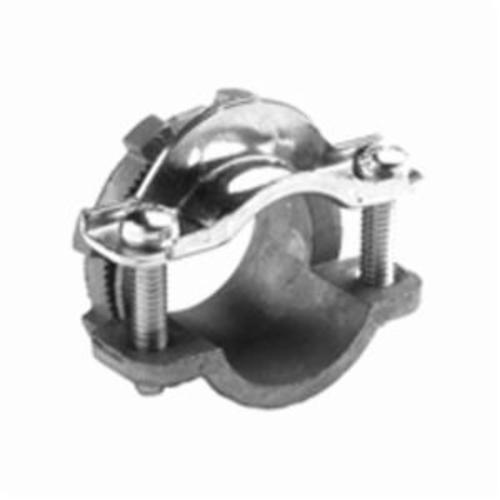

Bridgeport® 664-DC2 Conduit Connector, 1-1/4 in Trade, 1.09 to 1.3 in Cable Openings, For Use With Non-Metallic/Round Cable, Die Cast Zinc, Ball Burnished/Mirror Smooth
Brand: Bridgeport®
Item ID: 9680
MPN: 664-DC2
Login for Price
Features
- Furnished with 2-way Phillips/slotted head screw
- 2-Screw strap type connector
- 1-1/4 in knockout
- 1.38 in Dia throat
Description
Bridgeport® Conduit Connector, 1-1/4 in, Cable Openings: 1.09 to 1.3 in, 180 deg, 1.668 in Dia, For Use With: Non-Metallic/Round Cable, Die Cast Zinc, Ball Burnished/Mirror Smooth, 2-3/8 in L
Specifications
Angle |
180 deg |
Cable Openings |
1.09 to 1.3 in |
Diameter |
1.668 in |
Dimensions |
2-3/8 in L |
Finish |
Ball Burnished/Mirror Smooth |
Material |
Die Cast Zinc |
Suitable For Use With |
Non-Metallic/Round Cable |
Trade Size |
1-1/4 in |
Standard Approval |
RoHS Compliant|CSA LR39354|UL File No. E15123/514B|NEMA FB-1|Federal Specification A-A-50552 |
Application |
Used to connect single round service entrance cable to box or enclosure |
