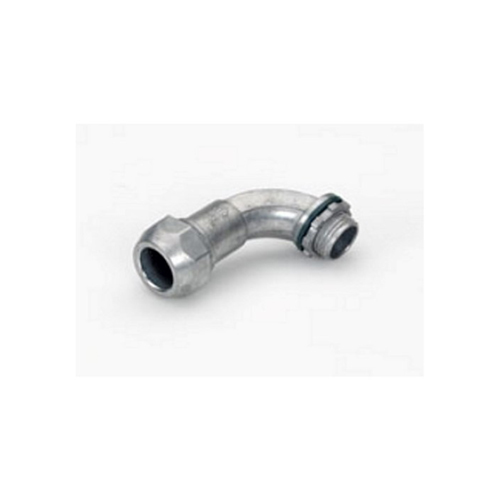

Bridgeport® 895-DC2
Bridgeport® Mighty-Seal® 895-DC2 Conduit Connector, 3/8 in Trade, 0.61 to 0.72 in, 0.5 to 0.61 in Cable Openings, For Use With 12/2 to 10/3 AWG Jacketed MC and 14/2 to 12/2 AWG TECK Raintight Cable, Die Cast Zinc, Ball Burnished/Mirror Smooth
Brand: Bridgeport®
Item ID: 376517
MPN: 895-DC2
Login for Price
Features
- Single cable opening
- Concrete tight
- 1/2 in knockout
- Time saver - ideal for parking decks/lot cable, or teck cable to box or enclosure
Description
Bridgeport® Mighty-Seal® Conduit Connector, 3/8 in, Cable Openings: 0.61 to 0.72 in, 0.5 to 0.61 in, 90 deg, 1-5/16 in Dia, For Use With: 12/2 to 10/3 AWG Jacketed MC and 14/2 to 12/2 AWG TECK Raintight Cable, Die Cast Zinc, Ball Burnished/Mirror Smooth, 2-3/4 in L
Specifications
Angle |
90 deg |
Cable Openings |
0.61 to 0.72 in, 0.5 to 0.61 in |
Diameter |
1-5/16 in |
Dimensions |
2-3/4 in L |
Finish |
Ball Burnished/Mirror Smooth |
Material |
Die Cast Zinc |
Suitable For Use With |
12/2 to 10/3 AWG Jacketed MC and 14/2 to 12/2 AWG TECK Raintight Cable |
Trade Size |
3/8 in |
Standard Approval |
RoHS Compliant|UL 514B File No. E9391|cULus Listed|NEMA FB-1 |
Application |
For connecting PVC jacketed MC cable (parking deck/lot cable) or TECK cable to box or enclosure |
