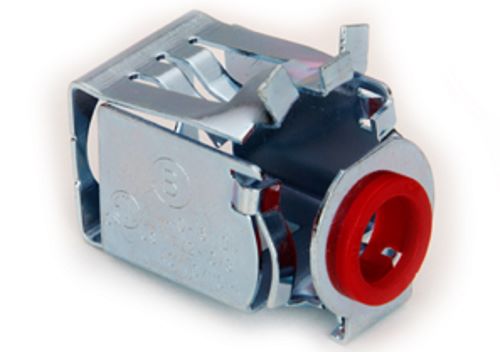

Bridgeport® AMC-50QI
Bridgeport® E-Z Lock™ AMC-50QI Connector, 3/8 in Trade, 1 Conductor, 0.43 to 0.61 in Cable Openings, Steel, Zinc Plated
Brand: Bridgeport®
Item ID: 458147
MPN: AMC-50QI
Login for Price
Features
- Quick install
- Just squeeze to insert into the knockout
- Use with anti-short bushing
- 0.375 in throat opening
- Time saver - squeeze set and go complete tool free solution for connecting ac/mc cable
Description
Bridgeport® E-Z Lock™ Connector, 3/8 in Trade, 1 Conductor, Cable Openings: 0.43 to 0.61 in, AC/MC/MCI-A/HCF/FMC Cable, Snap-In Connection, Steel, Zinc Plated, 1.53 in L x 0.81 in W x 0.875 in H Dimensions
Specifications
Cable Openings |
0.43 to 0.61 in |
Cable Type |
AC/MC/MCI-A/HCF/FMC |
Connection Type |
Snap-In |
Dimensions |
1.53 in L x 0.81 in W x 0.875 in H |
Finish |
Zinc Plated |
Material |
Steel |
Number of Conductors |
1 |
Trade Size |
3/8 in |
Standard Approval |
RoHS Compliant|REACH Compliant|cETLus Listed|UL 514B|Federal Specification A-A-50553|NEMA FB-1 |
Application |
Used to connect AC/MC cable and flexible metal conduit to box or enclosure |
