Metallics JBLS3G

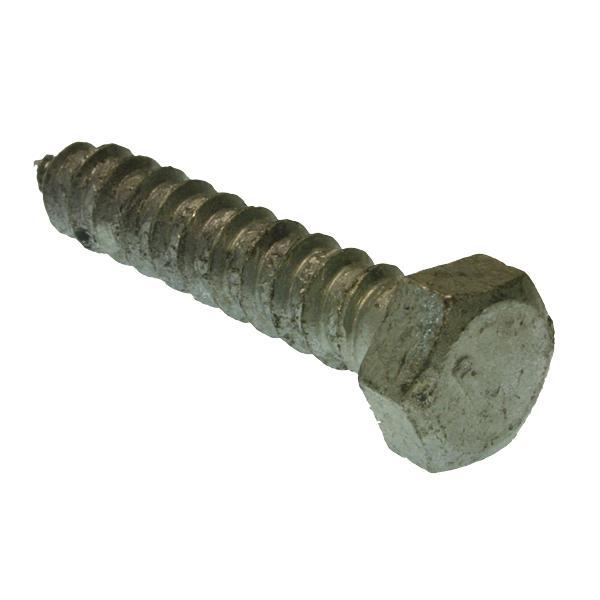

Metallics JBLS3G Lag Screw, 1/4-10, 2-1/2 in OAL, Steel, Galvanized, Hex Drive
Brand: Metallics
Item ID: 256152
MPN: JBLS3G
Login for Price
Features
- A full bodied bolt with hex head, spaced threads and a gimlet point
Description
Metallics Lag Screw, Series: JBLS, Measurement System: Imperial, 1/4-10 Thread, 2-1/2 in Overall Length, Steel, Galvanized, Hex Drive, Gimlet Point, 7/16 in W x 11/64 in H Head, 1/2 in Thread Length, 0.237 to 0.26 in Shoulder Diameter, 0.094 in Shoulder Length, Rockwell B70 to B100 Hardness, Hex Head
Specifications
Diameter - Thread Size |
1/4-10 |
Drive Type |
Hex |
Finish |
Galvanized |
Hardness |
Rockwell B70 to B100 |
Head Size |
7/16 in W x 11/64 in H |
Head Type |
Hex |
Material |
Steel |
Measurement System |
Imperial |
Overall Length |
2-1/2 in |
Point Type |
Gimlet |
Series |
JBLS |
Shoulder Diameter |
0.237 to 0.26 in |
Shoulder Length |
0.094 in |
Thread Length |
1/2 in |
Application |
For use in corrosive environments |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Metallics_BLS10SS_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Metallics_BLS10SS_Specification_Sheet.pdf
