Metallics JDS184

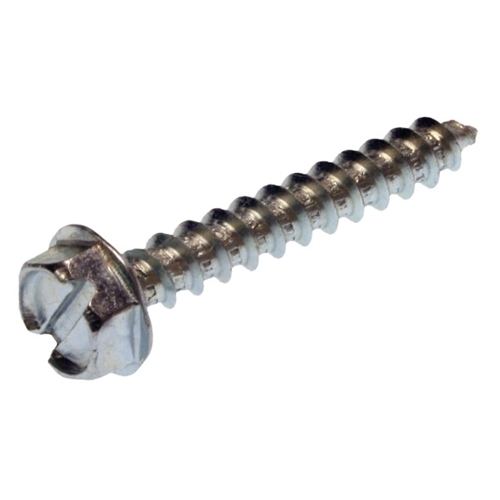

Metallics JDS184 Sheet Metal Screw, #10-12, 1-1/2 in OAL, Indented Hex/Washer Head, Slotted Drive, Steel, Zinc Chromate, Self-Piercing Point
Brand: Metallics
Item ID: 434501
MPN: JDS184
Login for Price
Features
- 0.384 to 0.414 in OD washer
- Use MT210B chuck
- Ideal fastener for light gauge sheet metal
Description
Metallics Sheet Metal Screw, Measurement System: Imperial, #10-12 Thread, 1-1/2 in Overall Length, Indented Hex/Washer Head, Slotted Drive, Steel, Zinc Chromate, Self-Piercing Point, 5/16 in Drive, 0.105 to 0.12 in H x 0.305 to 0.3125 in W Head, UNC Thread, Silver
Specifications
Color |
Silver |
Diameter - Thread Size |
#10-12 |
Drive Size |
5/16 in |
Drive Type |
Slotted |
Finish |
Zinc Chromate |
Head Size |
0.105 to 0.12 in H x 0.305 to 0.3125 in W |
Head Type |
Indented Hex/Washer |
Material |
Steel |
Measurement System |
Imperial |
Overall Length |
1-1/2 in |
Point Type |
Self-Piercing |
Thread Type |
UNC |
Standard Approval |
RoHS Compliant |
Application |
Light Metal Assembly such as Electrical Outlets, Framing and Various Other Sheet Metal Applications |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Metallics_DS178M_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Metallics_DS178M_Specification_Sheet.pdf
