NSI SS403

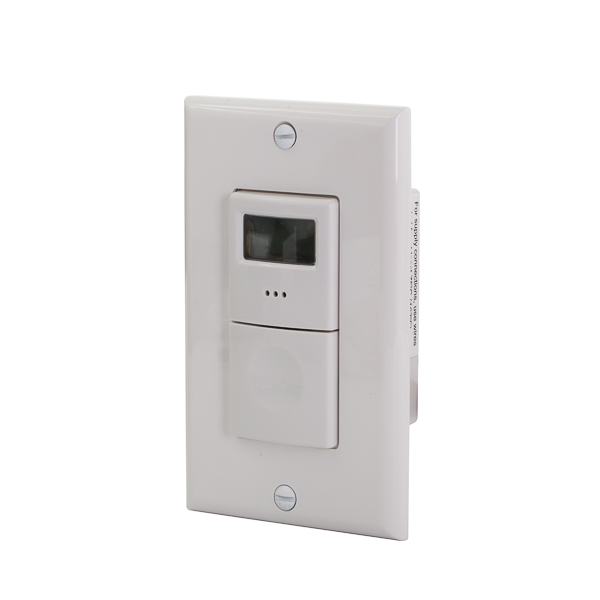

NSI Tork® SS403 SS400 3-Way Auto Off Interval Time Switch, 7 days Setting, 120/230/277 V AC, 0.25 hp, SPST Contact, 1 Poles
Brand: NSI
Item ID: 566829
MPN: SS403
Login for Price
Features
- 50/60 Hz frequency
- No neutral for retrofit
- 2 hr timing for title 24 and IECC (default)10 GB 4 hr timing for ASHRAE 90.1 (with quick DIP switch adjustment)
- 5 min to 24 hr, 5 min steps from 5 min to 1 hr, 0 min steps from 1 to 4 hr, 30 min steps from 4 to 12 hr, 1 hr steps from 12 to 24 hr programmable
- Limits user adjustment to a maximum equal to the preset time scroll lock
- Wallplate locks access to DIP switch adjustments tamper resistant
- Start or stop countdown from timer or remote switch manual operation
- 3-way compatible with existing switch, multi-way requires momentary switches at the additional locations, maximum distance 100 ft 3-way and multi-way
- White color
Description
NSI Tork® Time Switch, 3-Way Auto Off Interval, Series: SS400, Operation Mode: 7 days, 120/230/277 V AC, 15 A, 0.25 hp, 1 Pole, SPST Contact Form, 7 days Time Setting, Digital Backlit LCD Display, 32 to 104 deg F, Wall/Threaded Mounting, 5 in H x 3 in W Dimensions
Specifications
Amperage Rating |
15 A |
Contact Form |
SPST |
Dimensions |
5 in H x 3 in W |
Display Type |
Digital Backlit LCD |
Horsepower |
0.25 hp |
Mounting Type |
Wall/Threaded |
Number of Poles |
1 |
Operation Mode |
7 days |
Series |
SS400 |
Temperature Rating |
32 to 104 deg F |
Time Setting |
7 days |
Type |
3-Way Auto Off Interval |
Voltage Rating |
120/230/277 V AC |
Standard Approval |
cULus Listed |
Application |
Offices, Meeting Rooms, Energy Code Time Override, Exhaust Fans and Storage Room Control |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NSI_COS-ADP_Technical_Bulletin.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NSI_COS-ADP_Technical_Bulletin.pdf
