nVent CADDY 3000037EG

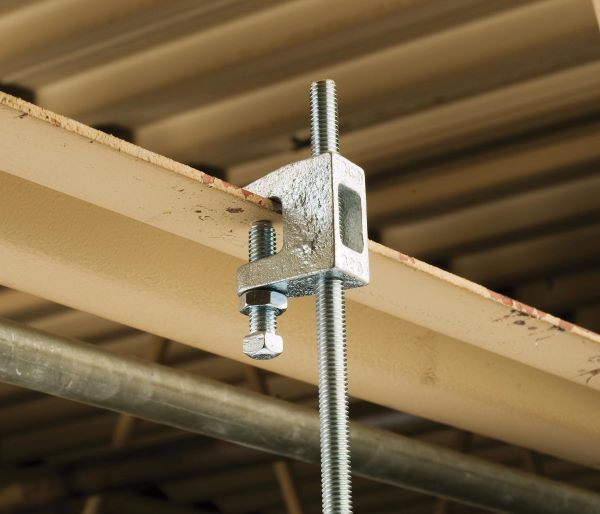

nVent CADDY 3000037EG Universal Beam Clamp, 3/8 in Rod, 13/16 in THK Flange, 250/500 lb Static Load, Steel, Electro-Galvanized
Brand: nVent CADDY
Item ID: 568778
MPN: 3000037EG
Login for Price
Description
nVent CADDY Beam Clamp, Universal, Series: 300, 3/8 in Rod, 13/16 in Flange Thickness, 250/500 lb Static, For Use With: Structural Attachment to Top or Bottom of Metal Beams, Purlin, Channels and Angle Iron, 1-1/8 in Hole, 5 ft-lb Torque, Steel, Electro-Galvanized, 3/4 in L x 1-1/8 in W
Specifications
Dimensions |
3/4 in L x 1-1/8 in W |
Finish |
Electro-Galvanized |
Flange Thickness |
13/16 in |
Load Capacity |
250/500 lb Static |
Material |
Steel |
Rod Size |
3/8 in |
Series |
300 |
Specifications |
1-1/8 in Hole, 5 ft-lb Torque |
Suitable For Use With |
Structural Attachment to Top or Bottom of Metal Beams, Purlin, Channels and Angle Iron |
Type |
Universal |
Standard Approval |
cULus Listed|FM Approved|VDS G4050085|Federal Specification WW-H-171 Type 23|ANSI/MSS-SP-58 Type 19 and 23|RoHS Compliant |
Application |
Datacom and Low Voltage, Electrical, Fire Sprinkler, HVAC, Plumbing and Refrigeration Applications |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Caddy_2H4_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Caddy_2H4_Catalog.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nVent_CADDY_0250025EG_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nVent_CADDY_0250025EG_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nVent_CADDY_3000037EG_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nVent_CADDY_3000037EG_Specification_Sheet.pdf
