nVent CADDY SLK15L2

nVent CADDY SLK15L2 Speed Link SLK System, For Use With Speed Link Universal Support System, Polypropylene/Steel/Zinc Alloy

Brand: nVent CADDY

Item ID: 368131

MPN: SLK15L2

Login for Price

Features

  • Push/pull keyless release allows easy adjustments
  • Low profile locking device minimizes visual impact
  • Cable spread of 90 deg allows positioning the device closer to the load
  • Keyless release tubes are easy to operate while wearing gloves
  • Double sided locking mechanism enables simple height adjustment
  • Individual packaging holds wire rope neatly until objects are ready to install
  • Hooks to a wide range of nVent CADDY fasteners
  • Fastens to the building structure or hanging services by looping around and hooking to wire rope
  • Easy to remove for applications requiring maintenance
  • Spring latch helps provide secure connection
  • Insert cable through hole and use bottom side of hook as an end stop

Description

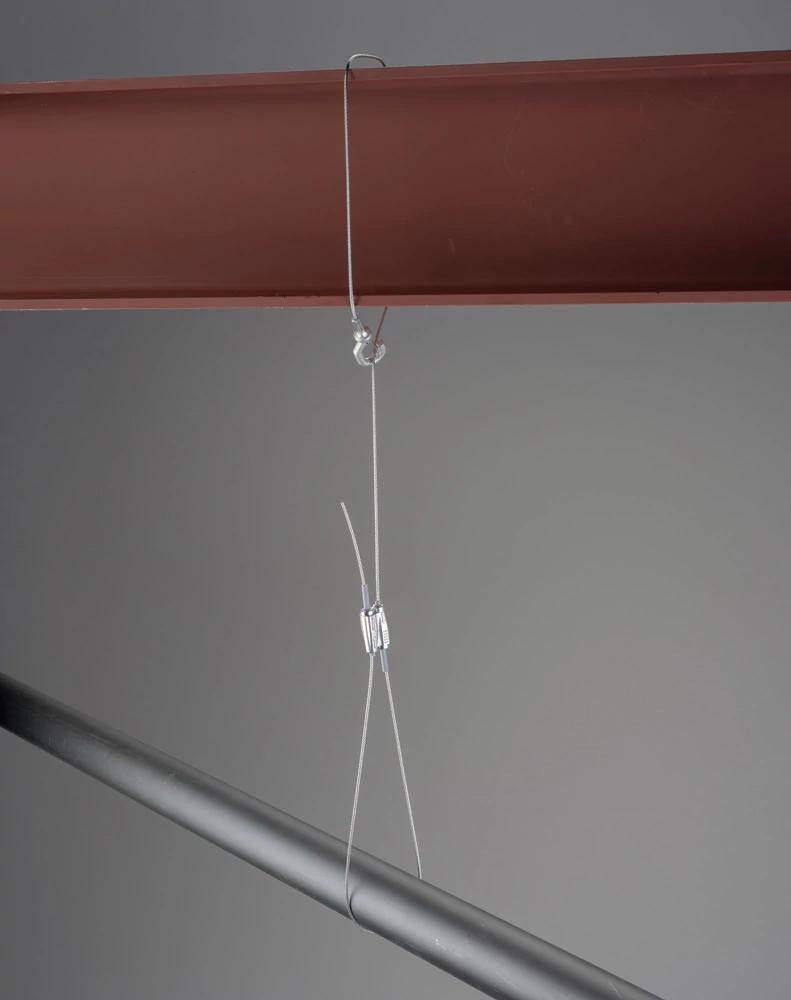

The speed link SLK system provides a versatile overhead support solution that is easy to adjust and installs quickly to almost any structure. The system supports a wide range of applications, including ductwork, pipe and tube, cable tray, lighting, conduit, strut profiles and signage from overhead structural building members. It is available with a variety of specialty end fittings for the most common building structure types, a range of wire rope diameters and lengths and includes a unique keyless locking device.

nVent CADDY Speed Link SLK System, 44 lb Static Load, 5:1 Safety Factor, 1.5 mm Dia x 6.6 ft L Wire, 1.89 x 0.71 x 0.18 in Hook, 0.75 in W x 2.15 in H x 0.5 in THK Locking Device, For Use With: Speed Link Universal Support System, Polypropylene/Steel/Zinc Alloy, Electro-Galvanized

Specifications

Finish

Electro-Galvanized

Material

Polypropylene/Steel/Zinc Alloy

Specifications

44 lb Static Load, 5:1 Safety Factor, 1.5 mm Dia x 6.6 ft L Wire, 1.89 x 0.71 x 0.18 in Hook, 0.75 in W x 2.15 in H x 0.5 in THK Locking Device

Suitable For Use With

Speed Link Universal Support System

Standard Approval

SMACNA HVAC-DCS Compliant|UL Listed|cUL Listed|cULus Listed

Application

Acoustical, Ceiling, Partitioning, Electrical Fixing, Fastening, HVAC, Ductwork, Pipe and Tube, Cable Tray, Lighting, Conduit, Strut Profiles and Datacom and Low Voltage Applications
