nVent CADDY TSGB24

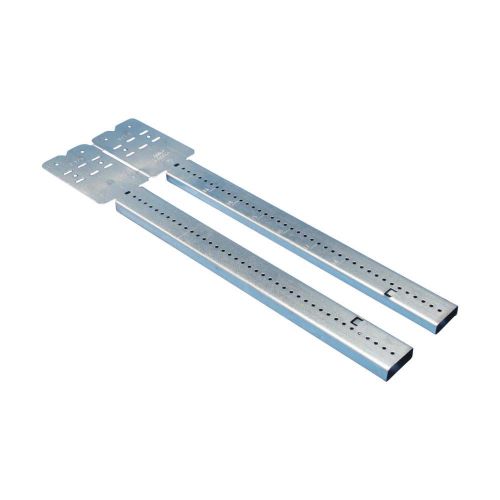

nVent CADDY TSGB24 Telescoping Screw Gun Box Bracket, 1-1/2 in, 2-1/8 in and 2-1/2 in D Box, 17 to 26 in Stud Spacing, Stud Mount, Steel, Pre-Galvanized
Brand: nVent CADDY
Item ID: 430631
MPN: TSGB24
Login for Price
Features
- Can mount multiple boxes
- Notched and marked for easy identification and bending
- Improved design with stamped inch markings and pilot holes accelerates precise box conduit mounting between studs
- Pilot holes allow easy box attachment with a screwdriver
- Requires only a screw gun to install
- Can be mounted to face or inside of stud
- Adjustable for non-standard stud spacing
- Interlocking tab prevents accidental disassembly
- Unique, 1-piece, break apart design
- Reduces movement of the box when used with flexible conduit, ENT, MC, AC or non-metallic sheathed cable
Description
nVent CADDY Screw Gun Box Bracket, Telescoping, 1-1/2 in, 2-1/8 in and 2-1/2 in D Box, 17 to 26 in Stud Spacing, Stud Mount, For Use With: Screw Gun Electrical Box, Steel, Pre-Galvanized
Specifications
Box Size |
1-1/2 in, 2-1/8 in and 2-1/2 in D |
Finish |
Pre-Galvanized |
Material |
Steel |
Mounting Type |
Stud |
Stud Spacing |
17 to 26 in |
Suitable For Use With |
Screw Gun Electrical Box |
Type |
Telescoping |
Standard Approval |
ANSI/UL 514A|cUL Listed|cULus Listed|cUL QCRV7.E165702|CAN/CSA C22.2 No. 18.1-04|UL QCRV.E165702|UL Listed |
Application |
Electrical Fixing, Fastening, Data Communication, Low Voltage, HVAC, Plumbing and Refrigeration Application |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nVent_CADDY_MSP20_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nVent_CADDY_MSP20_Catalog.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nVent_ERICO_TSGB1624_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nVent_ERICO_TSGB1624_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nVent_CADDY_35012P_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nVent_CADDY_35012P_User_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nVent_CADDY_TSGB24_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/nVent_CADDY_TSGB24_Specification_Sheet.pdf
