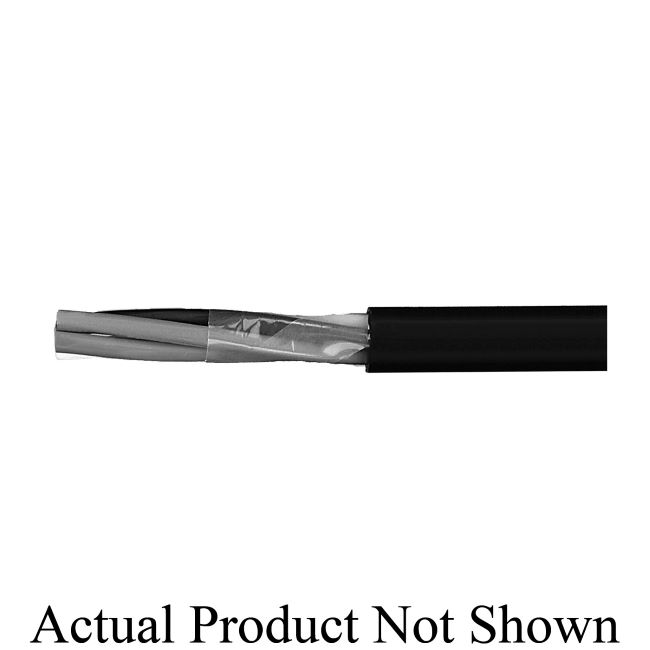

Omni Cable A11405

Omni Cable VNTC® A11405 Type TC-ER Unshielded Tray Cable, 600 VAC, (5) 14 AWG Annealed Bare Stranded Copper Conductor

Brand: Omni Cable

Item ID: 405436

MPN: A11405

Add To Cart

Features

Fully annealed stranded bare copper per ASTM B3, class B stranding per ASTM B8 conductor
Flame-retardant polyvinyl chloride (PVC) with clear polyamide (nylon) insulation
Flame-retardant, sunlight-resistant polyvinyl chloride (PVC) jacket

Description

Omni Cable VNTC® Tray Cable, Type TC-ER Unshielded, 600 VAC, 5 Conductors, Annealed Bare Stranded Copper Conductor, 14 AWG Conductor, 0.41 in OD, 7 Strands, PVC/Nylon Insulation, PVC Jacket, Black Jacket, 90 deg C

Specifications

Conductor Size	14 AWG
Conductor Type	Annealed Bare Stranded Copper
Insulation Material	PVC/Nylon
Jacket Color	Black
Jacket Material	PVC
Number of Conductors	5
Outside Diameter	0.41 in
Strands	7
Temperature Rating	90 deg C
Type	Type TC-ER Unshielded
Voltage Rating	600 VAC
Standard Approval	UL 83 NEC Type THHN/THWN Conductors\|1581\|1277 Type TC-ER Listed\|IEEE 1202\|Class 1\|Division 2 NEC Certified\|RoHS Compliant
Application	For use in free air, raceways, direct burial and wet or dry locations

Documentation

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/OMNI_CABLE_A11402F_Data_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/OMNI_CABLE_A11402F_Data_Sheet.pdf
