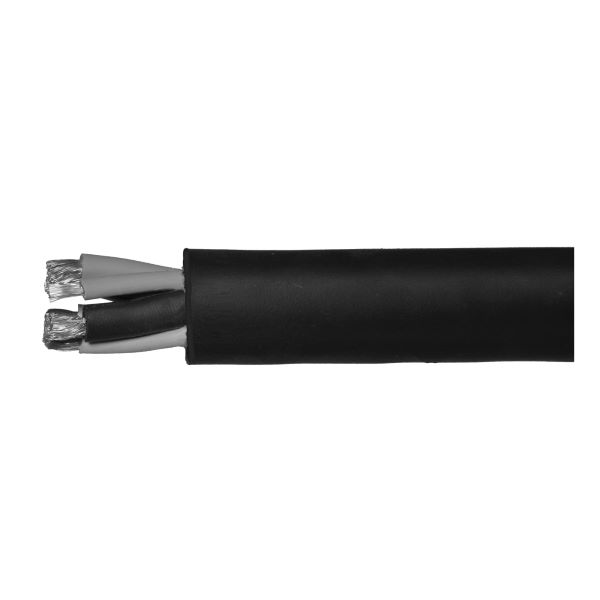

Omni Cable B11407
Omni Cable B11407 Type SOOW Flexible Portable Cord, 600 V AC, (7) 14 AWG Fully Annealed Bare Stranded Copper Conductor
Brand: Omni Cable
Item ID: 386043
MPN: B11407
Login for Price
Features
- White/black stripe insulation
- Often referred to as service cord
Description
Omni Cable Cord, Type SOOW Flexible Portable, 600 V AC, 12 A, 7 Conductors, Fully Annealed Bare Stranded Copper Conductor, 14 AWG Conductor, 0.755 in OD, 41/30 Strands, EPDM Insulation, Chlorinated Polyethylene Jacket, Black Jacket, 90 deg C
Specifications
Amperage Rating |
12 A |
Conductor Size |
14 AWG |
Conductor Type |
Fully Annealed Bare Stranded Copper |
Insulation Material |
EPDM |
Jacket Color |
Black |
Jacket Material |
Chlorinated Polyethylene |
Number of Conductors |
7 |
Outside Diameter |
0.755 in |
Strands |
41/30 |
Temperature Rating |
90 deg C |
Type |
Type SOOW Flexible Portable |
Voltage Rating |
600 V AC |
Standard Approval |
UL 62 Listed|MSHA Approved |
Application |
For portable tools, equipment, portable appliances, small motors and associated machinery |
Omni Cable B11407
