Omni Cable BJ11203

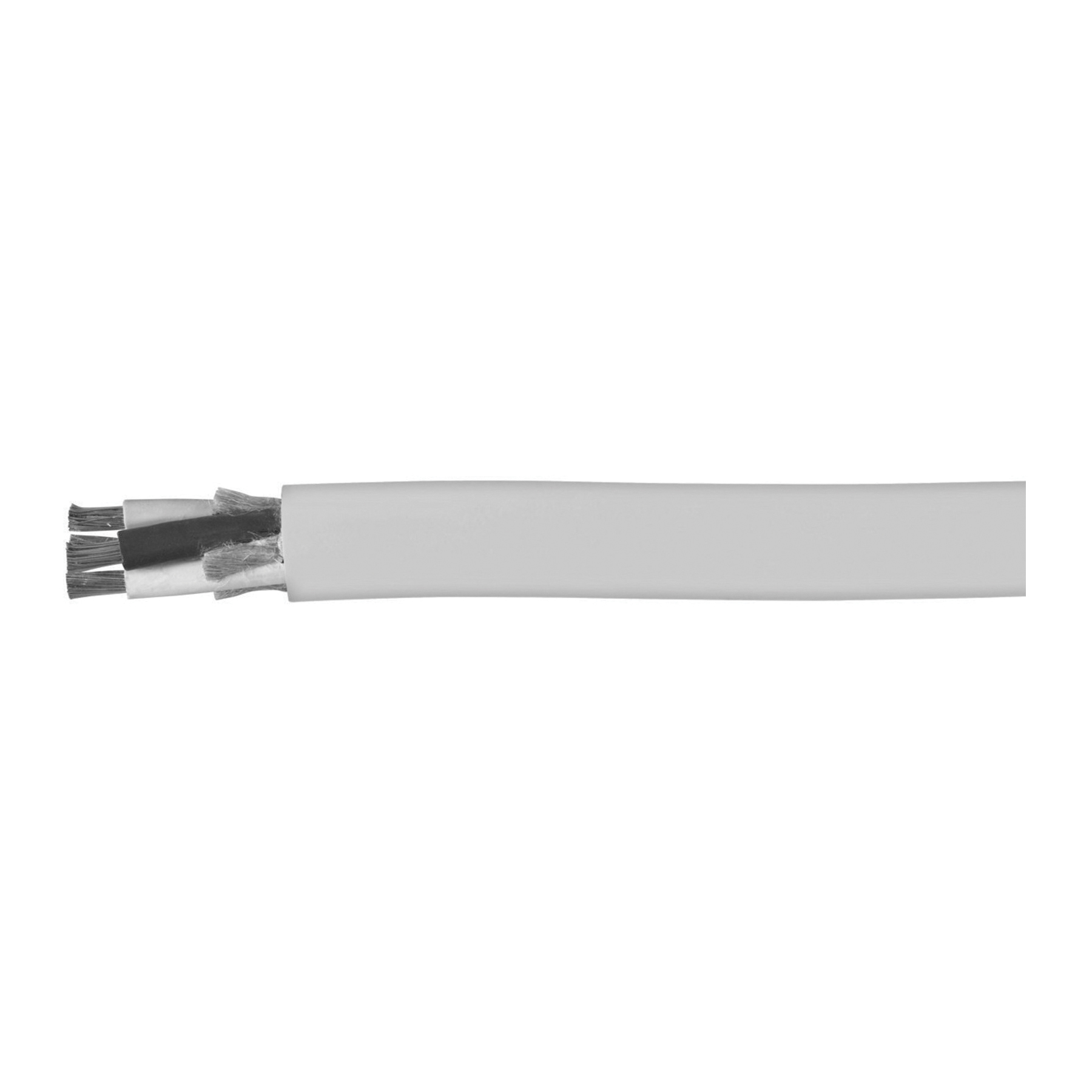

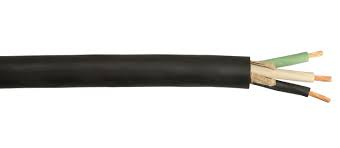

Omni Cable BJ11203 Type SJOOW Flexible Portable Cord, 300 VAC, (3) 12 AWG Annealed Bare Copper Conductor
Brand: Omni Cable
Item ID: 66798
MPN: BJ11203
Login for Price
Features
- Bare, annealed copper per ASTM B-3 flexible, bunch-stranded per UL-62
- Color coded synthetic rubber (EPDM) oil and water-resistant per UL-62
- Conductors are assembled round with fillers as needed and a separator is applied over the assembly
- Often referred to as service cord
Description
Omni Cable Portable Cord, Type SJOOW Flexible, 300 VAC, 25 A, 3 Conductors, Annealed Bare Copper Conductor, 12 AWG Conductor, 0.43 in OD, 65/30 Strands, EPDM Insulation, CPE Jacket, Black Jacket, 90 deg C
Specifications
Amperage Rating |
25 A |
Conductor Size |
12 AWG |
Conductor Type |
Annealed Bare Copper |
Insulation Material |
EPDM |
Jacket Color |
Black |
Jacket Material |
CPE |
Number of Conductors |
3 |
Outside Diameter |
0.43 in |
Strands |
65/30 |
Temperature Rating |
90 deg C |
Type |
Type SJOOW Flexible |
Voltage Rating |
300 VAC |
Standard Approval |
UL Listed|CSA Certified|CE Marked|RoHS Compliant|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
For hard usage with portable tools, small motors and power extensions and is sunlight, water, oil and weather resistant and outdoor applications |
Omni Cable BJ11203
