Omni Cable D51802

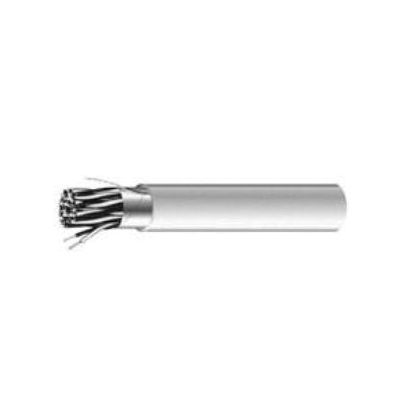

Omni Cable D51802 Paired Computer Cable, 300 VAC, (2 Pairs) 18 AWG Stranded Tinned Copper Conductor
Brand: Omni Cable
Item ID: 400884
MPN: D51802
Login for Price
Features
- 39 F capacitance between conductors
- 47 F capacitance between one conductor and other conductors connected to shield
- Overall aluminum-polyester shield with tinned copper drain wire
- S-R PVC insulation with twisted pairs insulation
- Black, red and numbered insulation
Description
Omni Cable Computer Cable, Paired, 300 VAC, 2 Pairs Conductors, Stranded Tinned Copper Conductor, 18 AWG Conductor, 0.32 in OD, 16/30 Strands, PVC Insulation, PVC Jacket, Gray Jacket, 80 deg C
Specifications
Conductor Size |
18 AWG |
Conductor Type |
Stranded Tinned Copper |
Insulation Material |
PVC |
Jacket Color |
Gray |
Jacket Material |
PVC |
Number of Conductors |
2 Pairs |
Outside Diameter |
0.32 in |
Strands |
16/30 |
Temperature Rating |
80 deg C |
Type |
Paired |
Voltage Rating |
300 VAC |
Standard Approval |
UL Listed|PLTC/CM|CSA CMG|NEC Article 725 Power-Limited Tray Cable |
Application |
For appropriate tray cable installations, allow balanced signal transmission which results in lower crosstalk through common mode rejection |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/OMNI_CABLE_D51802_Data_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/OMNI_CABLE_D51802_Data_Sheet.pdf
Omni Cable D51802
