Panasonic FV-0510VSL1

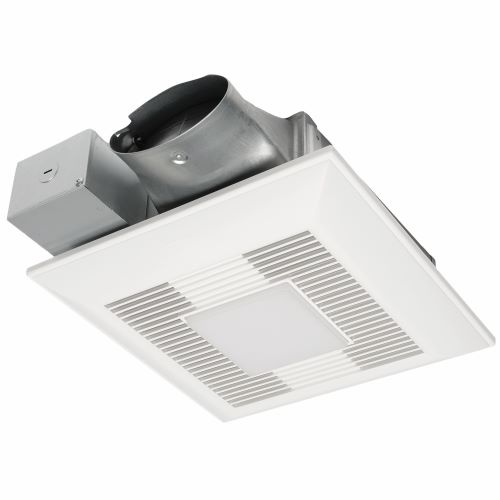

Panasonic WhisperValue® DC™ SmartFlow™ FV-0510VSL1 Ventilation Fan/Light With ECM Motor, L-Shaped Mounting Bracket, LED Lamp, 120 VAC, Steel Housing
Brand: Panasonic
Item ID: 471812
MPN: FV-0510VSL1
Login for Price
Features
- Revolutionary ECM motor with SmartFlow™ technology for optimum cfm output
- Pick-A-Flow™ speed selector - one fan, you choose the cfm (50, 80 or 100 cfm)
- Low profile 3-3/8 in D fits virtually anywhere, including 2 x 4 construction
Description
WhisperValue® DC™ fan/LED light is the lowest profile energy Star® certified ventilation fan. Ideal for residential construction (single and multi-family) and manufactured homes. It features Panasonic's revolutionary ECM motor with SmartFlow™ optimum cfm technology and incorporates a Pick-A-Flow™ speed selector switch to customize airflow (50, 80 or 100 cfm).
Panasonic WhisperValue® DC™ SmartFlow™ Ventilation Fan/Light, 120 VAC, 0.39 A, LED Lamp, 10 W Lamp, 50000 hr Average Life, Warm White Light, 3000 K Color Temperature, 90 CRI, Ceiling Mounting, 733/856/954 rpm Fan Speed Control, 50/80/100 cfm Air Flow, 4 in Fan, Steel Housing Material, 10-1/4 in L x 10-1/4 in W x 3-3/8 in H Dimensions
Specifications
Air Flow Rate |
50/80/100 cfm |
Amperage Rating |
0.39 A |
Average Life |
50000 hr |
Color Rendering Index (CRI) |
90 |
Color Temperature |
3000 K |
Dimensions |
10-1/4 in L x 10-1/4 in W x 3-3/8 in H |
Fan Size |
4 in |
Fan Speed Control |
733/856/954 rpm |
Housing Material |
Steel |
Lamp Type |
LED |
Lamp Wattage |
10 W |
Light Color |
Warm White |
Mounting Type |
Ceiling |
Voltage Rating |
120 VAC |
Standard Approval |
cULus Listed|California Title 24 Compliant|HVI Compliant|ENERGY STAR Certified|Washington VIAQ Compliant|ASHRAE 62.2|LEED Compliant|EarthCraft Compliant|UL Listed|PROP65: Ventilation Fan products sold by Panasonic Eco Solutions North America (PESNA) do not contain Proposition 65 listed chemicals at a level or in a manner, that require Proposition 65 Consumer Product Exposure Warnings. |
Application |
Multi-Family, New Construction, Light Commercial and Residential Applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV0510VSCL1_Manual.pdf
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_de44c948b77cebd1fc380259b1423cfc0178c933ef5de231978702d6df00c558.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7d195fd169b882ea9eebe11b6bad367ce9e822075ef3f2bc1188722911415d7e.pdf
