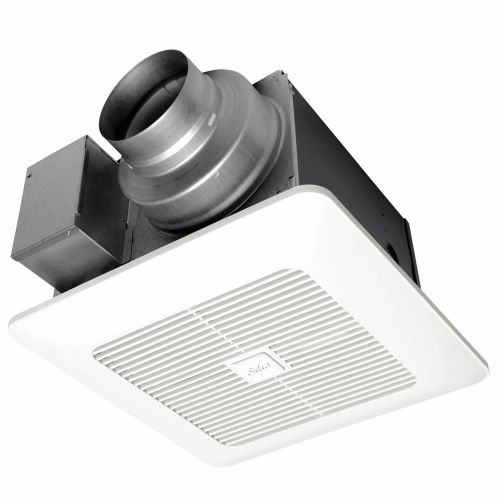

Panasonic FV-0511VKS2

• Customizable, all-in-one whole house precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage
• Customizable ceiling mount ventilation fan with multi-speed control (0, 30 to 100 cfm, in 10 cfm increments) and a built-in high/low adjustable time delay activated by a wall switch
• Environmentally friendly 26 ga zinc-aluminum-magnesium (ZAM) housing design
• Improved Flex-Z Fast™- single-hinge bracket with added flexibility, fast and easy
• Elegant grille design complements the aesthetics of any room
• Integrated 4 in dual duct adapter enhances installation options, fits 2 x 8 in construction
• Built-in damper reduces back draft and helps with blower door testing
• Built-in metal flange provides blocking for penetrations through drywall as an air barrier and assists with the decrease in leakage in the building envelope during blower door testing
• Suitable for installation in ceilings insulated upto R60
• Articulating and expandable installation bracket upto 24 in
• Removable permanently lubricated plug-in motor
• Motor equipped with thermal cut-off fuse
• Enclosed brushless ECM smart motor technology rated for continuous operation
• Attaches directly to housing with torsion springs
• Includes a motion sensor cap for use as a cover when the motion sensor Plug-n-Play™ module has not been selected
• 3.1 W at 50 cfm/5.1 W at 80 cfm/9.9 W at 110 cfm power rating
• 0.04 A at 50 cfm/0.06 A at 80 cfm/0.10 A at 110 cfm ampere rating
• <0.3 sones at 1/4 in SP

Reintroducing WhisperGreen® Select™, our whole house IAQ solution with enhancements that will provide greater value to our customers. First, our improved single-hinged Flex-Z Fast™ bracket for more flexible, fast and easy installation. Other enhancements include a new elegant grille design, an environmentally friendly 26 ga Zinc-Aluminum-Magnesium (ZAM) housing design and dual access junction box that helps simplify wiring in tight spaces.

Panasonic WhisperGreen® Select™ Ventilation Fan, Multi-Speed, 50/80/110 cfm Flow Rate, 4 in Diameter Duct, 120 VAC, 0.1 A Current/Amps, 60 Hz Frequency, 9.9 W Wattage Consumption, 0.3 sones, 13 in Grille Length, 13 in Grille Width, Polypropylene Grille, 10-1/4 in Housing Length, 10-1/4 in Housing Width, 7-3/8 in Housing Height, Zinc Aluminum Magnesium Housing Material, Ceiling Mounting, No Humidity Sensing, No Motion Sensing, Domestic/Import: Import
