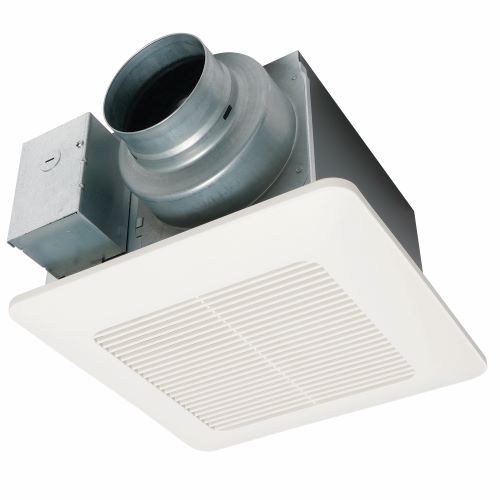

Panasonic FV-0511VQ1

Panasonic WhisperCeiling® DC™ SmartFlow™ FV-0511VQ1 1-Phase Ventilation Fan With ECM Motor, Installation Bracket, 50/53/80/83/110/111 cfm Flow Rate, 4 in, 6 in Dia Duct, 4/5.9/7.2/10.6/10.8/16.4 W Power Rating, 120 VAC, 0.07 to 0.18 A, Import

Brand: Panasonic

Item ID: 462054

MPN: FV-0511VQ1

Login for Price

Features

  • Revolutionary ECM motor with SmartFlow™ technology for optimum cfm output
  • Pick-A-Flow™ speed selector - one fan, you choose the cfm (50, 80, 110 cfm models)
  • Flex-Z Fast™ bracket provides flexible, fast and trouble-free installation, even from below the ceiling
  • Lighted models incorporate one long life, 10 W dimmable LED chip panel with <1 W LED night light for warm, energy efficient illumination
  • Elegant grille design compliments the aesthetics of any bathroom
  • Single speed

Description

WhisperCeiling® DC™ precision spot ventilation fan with built-in Pick-A-Flow™ speed selector switch allows you to select your required airflow (50-80-110 cfm). Features a ECM motor with SmartFlow™ technology and a Flex-Z Fast™ installation bracket. Can be used to comply with the latest codes and standards.

Panasonic WhisperCeiling® DC™ SmartFlow™ Ventilation Fan, 1-Phase, 50/53/80/83/110/111 cfm Flow Rate, 4 in, 6 in Diameter Duct, 120 VAC, 0.07 to 0.18 A, 60 Hz Frequency, 4/5.9/7.2/10.6/10.8/16.4 W Power, 13 in Grille Length, 13 in Grille Width, 10-1/4 in Housing Length, 10-1/4 in Housing Width, 7-3/8 in Housing Height, Zinc Aluminum Magnesium Housing Material, Ceiling Mounting, Domestic/Import: Import

Specifications

Amperage Rating

0.07 to 0.18 A

Domestic/Import

Import

Duct Diameter

4 in, 6 in

Flow Rate

50/53/80/83/110/111 cfm

Frequency Rating

60 Hz

Grille Length

13 in

Grille Width

13 in

Housing Height

7-3/8 in

Housing Length

10-1/4 in

Housing Material

Zinc Aluminum Magnesium

Housing Width

10-1/4 in

Mounting Type

Ceiling

Power Rating

4/5.9/7.2/10.6/10.8/16.4 W

Type

1-Phase

Voltage Rating

120 VAC

Standard Approval

cULus Listed|HVI Compliant|ENERGY STAR Certified|Washington VIAQ Compliant|ASHRAE 62.2|LEED Compliant|EarthCraft Compliant|PROP65: Ventilation Fan products sold by Panasonic Eco Solutions North America (PESNA) do not contain Proposition 65 listed chemicals at a level, or in a manner, that require Proposition 65 Consumer Product Exposure Warnings

Application

Bathroom, Laundry Room, Sun Room, Basement, Garage and Ventilation Applications

Documentation

Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_82df4ec384b49780f912617b7a9ec1112763c1f930c539fc3bfd5564d577b9bf.pdf

SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5dda244893fc3b6b2e180c87ec1f8bb3873598ec8fb28bc4d246f8d779ec6e82.pdf

Service Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV0511VQ1_Service_Manual.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f3e3a6cfc9f9166e3d6fb93612df62bb6cd4e2915c3c7a4ce386bc82455a8fbd.pdf

Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_948e688b9dfbb2d33f43a1026f731276a6cb2033756c14750d05b2115847d119.pdf
