Panasonic FV-0511VQL1
Panasonic WhisperCeiling® DC™ FV-0511VQL1 Round Duct Square Grille Ventilation Fan/Light With ECM Motor, L-Shaped Mounting Bracket, LED Lamp, 120 VAC, Zinc Aluminum Magnesium Housing
Brand: Panasonic
Item ID: 462439
MPN: FV-0511VQL1
Login for Price
Features
- Revolutionary ECM motor with SmartFlow™ technology for optimum cfm output

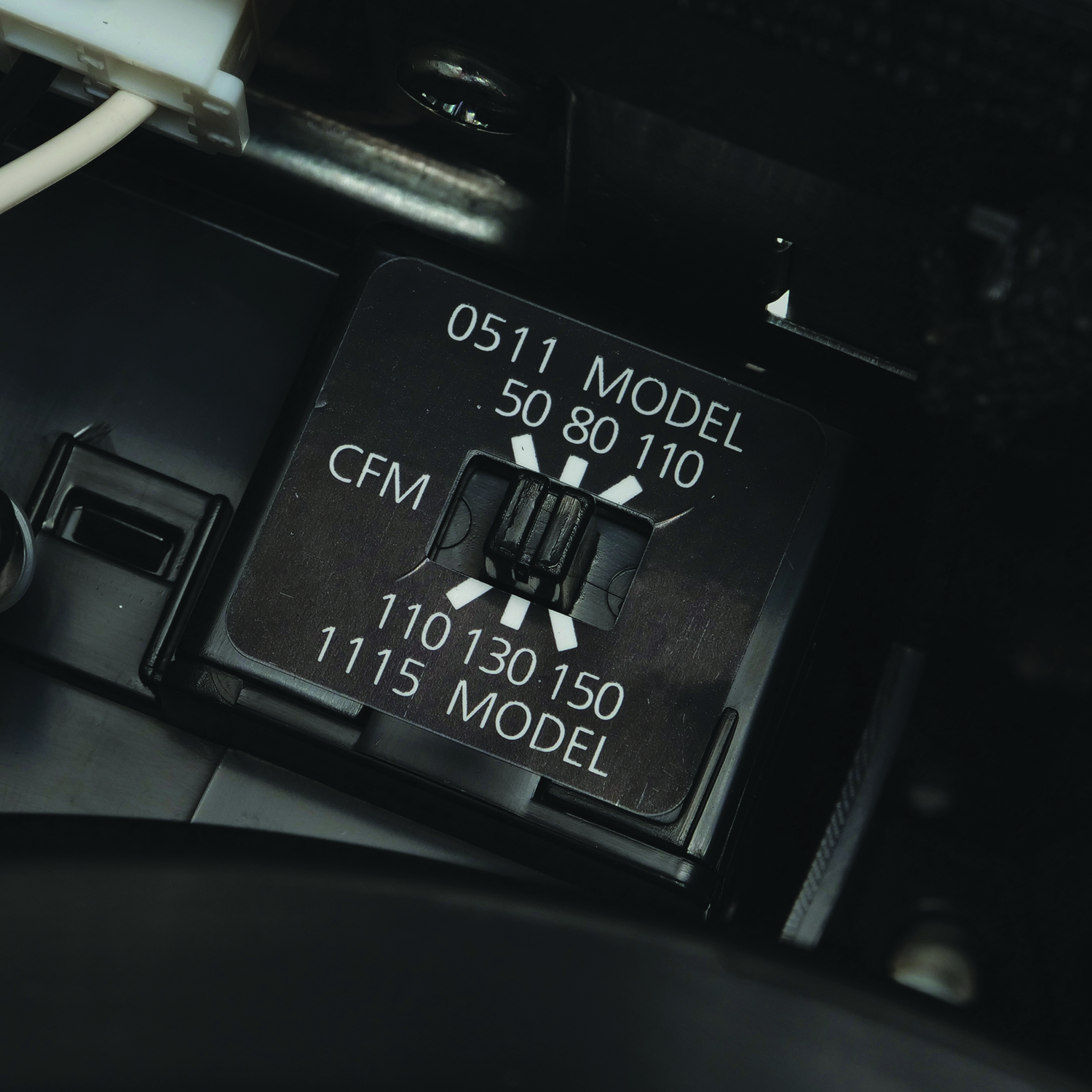

- Pick-A-Flow™ speed selector - one fan, you choose the cfm (50, 80, 110 or 110, 130, 150 cfm models)
- Flex-Z Fast™ bracket provides flexible, fast and trouble-free installation, even from below the ceiling
- Lighted models incorporate one long life, 10 W dimmable LED chip panel with <1 W LED night light for warm, energy efficient illumination
- Elegant grille design compliments the aesthetics of any bathroom
- With LED chip panel lamp, built-in Pick-A-Flow™ speed selector switch
Description
WhisperCeiling® DC™ precision spot ventilation fan/light with built-in Pick-A-Flow™ speed selector switch allows you to select your required airflow (50-80-110 cfm). Features an ECM motor with SmartFlow™ technology and a Flex-Z Fast™ installation bracket. Can be used to comply with the latest codes and standards.
Panasonic WhisperCeiling® DC™ Ventilation Fan/Light, Round Duct Square Grille, 120 VAC, 0.07/0.11/0.12/0.18/0.19/0.26 A, LED Lamp, 10 W Lamp, 50000 hr Average Life, Warm White Light, 3000 K Color Temperature, 90 CRI, Ceiling Mounting, 50/80/83/100/110 cfm Air Flow, Zinc Aluminum Magnesium Housing Material, 10-1/4 in L x 10-1/4 in W x 7-3/8 in H Dimensions
Specifications
Air Flow Rate |
50/80/83/100/110 cfm |
Amperage Rating |
0.07/0.11/0.12/0.18/0.19/0.26 A |
Average Life |
50000 hr |
Color Rendering Index (CRI) |
90 |
Color Temperature |
3000 K |
Dimensions |
10-1/4 in L x 10-1/4 in W x 7-3/8 in H |
Housing Material |
Zinc Aluminum Magnesium |
Lamp Type |
LED |
Lamp Wattage |
10 W |
Light Color |
Warm White |
Mounting Type |
Ceiling |
Type |
Round Duct Square Grille |
Voltage Rating |
120 VAC |
Standard Approval |
cULus Listed|HVI Compliant|ENERGY STAR Certified|Washington VIAQ Compliant|ASHRAE 62.2|LEED Compliant|EarthCraft Compliant|PROP65: Ventilation Fan products sold by Panasonic Eco Solutions North America (PESNA) do not contain Proposition 65 listed chemicals at a level, or in a manner, that require Proposition 65 Consumer Product Exposure Warnings |
Application |
Bathroom, Laundry Room, Sun Room, Basement, Garage and Ventilation Applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_82df4ec384b49780f912617b7a9ec1112763c1f930c539fc3bfd5564d577b9bf.pdf
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5dda244893fc3b6b2e180c87ec1f8bb3873598ec8fb28bc4d246f8d779ec6e82.pdf
Service Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV0511VQL1_Service_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Panasonic_FV_0511VQL1_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_948e688b9dfbb2d33f43a1026f731276a6cb2033756c14750d05b2115847d119.pdf
Panasonic FV-0511VQL1
