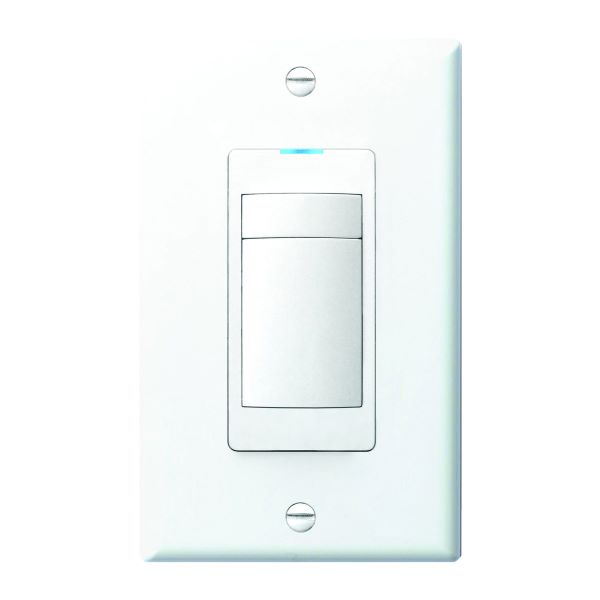

Panasonic FV-WCD01-W

Panasonic WhisperControl FV-WCD01-W Bath Preset Countdown and Hourly Timer, 120 VAC, 8 A, On/Off Operational Mode, Galvanized Steel/Polypropylene, White

Brand: Panasonic

Item ID: 472421

MPN: FV-WCD01-W

Login for Price

Features

  • Preset countdown and hourly timer FV-WCD01-W ON/off wall control
  • Preset countdown timer
  • Adjustable minutes per hour (mph) fan timer
  • Manual ON/off control
  • Commercial grade - 8 A max load
  • Blue LED lamp
  • 24 VAC input output dry contact switching
  • Humidity or ventilation controls

Description

Preset countdown and hourly timer ON/off control allows you to preset the fan to run for a specific period of time (5 to 60 min). It will then shut the fan off automatically for you, making It an ideal product for tenant family use. Advanced, easy to use adjustable minutes per hour (mph) fan timer is included for ASHRAE 62.2 compliance.

Panasonic WhisperControl Preset Countdown and Hourly Timer, Bath, 120 VAC, 8 A, On/Off Operational Mode, Wall Mounting, 6 in Lead Terminal, Galvanized Steel/Polypropylene, White

Specifications

Amperage Rating

8 A

Color

White

Material

Galvanized Steel/Polypropylene

Mounting

Wall

Operational Mode

On/Off

Terminal Type

Lead

Type

Bath

Voltage Rating

120 VAC

Standard Approval

cULus Listed|PROP65: Ventilation Fan products sold by Panasonic Eco Solutions North America (PESNA) do not contain Proposition 65 listed chemicals at a level or in a manner, that require Proposition 65 Consumer Product Exposure Warnings.

Application

For use in 1-gang box

Documentation

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_057aece0f537a15243398e476cae8c720bc045365cb9e56316bfae580fe37907.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_755cc907c3c3389d16dacb6c515fb703798546dca8d78301af5102c0f5080e3c.pdf
