RAB BULLET12YA
RAB BULLET12YA Bullet Floodlight Fixture With Hood, Lens, (1) LED Lamp, 13 W Fixture, 120/277 VAC, Bronze Housing
Brand: RAB
Item ID: 426697
MPN: BULLET12YA
Login for Price
Features
- 12 W LED equivalent to 75 W BR30/halogen/wide flood
- Mount as an uplight or downlight on a RAB mighty post or junction box
- Microprismatic diffusion lens for smooth and even light distribution lens
- Without photocell
Description
RAB Floodlight Fixture, Bullet, 120/277 VAC, 13 W Fixture, 0.1 A, LED Lamp, 12 W Lamp, 1 Lamp, 100000 hr Average Life, Warm White Light, 3000 K Color Temperature, 84 CRI, Constant Current Ballast, Micro-Prismatic Diffusion Lens, 800 Lumens, Surface Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 4-1/2 in H x 4-3/4 in W Dimensions
Specifications
Amperage Rating |
0.1 A |
Average Life |
100000 hr |
Ballast Type |
Constant Current |
Color Rendering Index (CRI) |
84 |
Color Temperature |
3000 K |

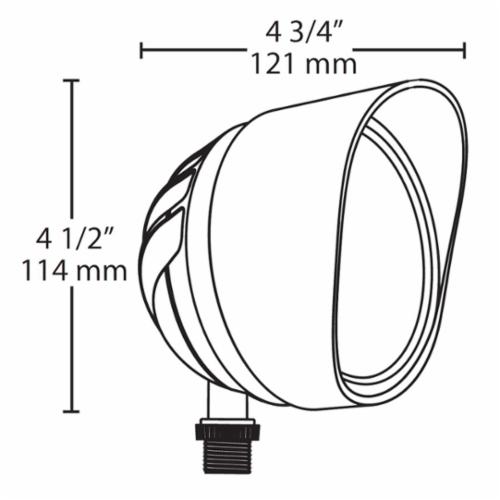

Dimensions |
4-1/2 in H x 4-3/4 in W |
Fixture Wattage |
13 W |
Housing Finish |
Bronze |
Housing Material |
Die Cast Aluminum |
Lamp Type |
LED |
Lamp Wattage |
12 W |
Lens Type |
Micro-Prismatic Diffusion |
Light Color |
Warm White |
Lumens |
800 Lumens |
Mounting Type |
Surface |
Number of Lamps |
1 |
Type |
Bullet |
Voltage Rating |
120/277 VAC |
Standard Approval |
ANSI C78.377|California Title 24|UL Listed|DLC Certified|IESNA LM-79/80|CSA Approved |
Application |
Commercial, Residential and Wet Locations |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e9c3e1b351cbe51bb519a4b1db68f14f867a0e70184b983b5ecdffec283b17e6.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_BULLET12YVG_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_44210acff62f26a40890e4d86ea0c0b819f782ff8da404316945cf28f7c13cd8.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_BULLET12YA_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_806e219644c3f40d73e31b98e680a823e707b6023cb752d6a6f3d3a6db677619.pdf
