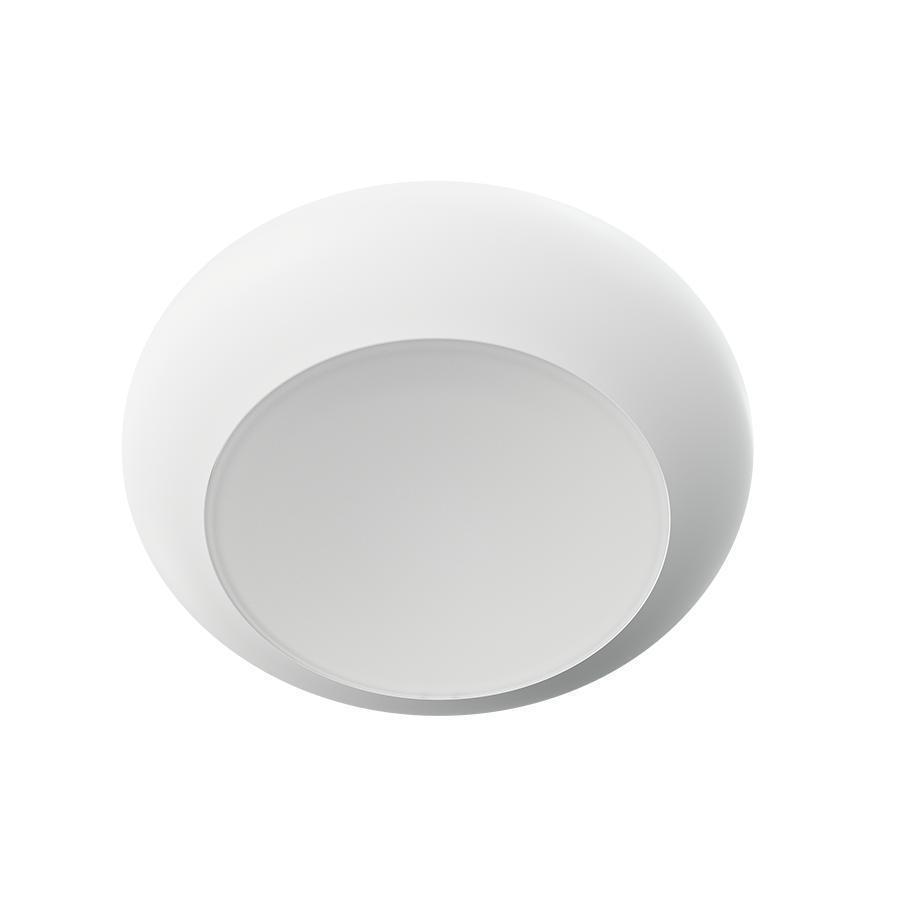

RAB DSK4R79FA120WS
RAB DSK4R79FA120WS DSK Disk Surface Mount / Retrofit, LED Lamp, 7 W Fixture, 120, 208, 240, 277 V
Brand: RAB
Item ID: 506831
MPN: DSK4R79FA120WS
Login for Price
Features
- Durable thermoplastic housing with frosted lens
- Installs on standard junction boxes
- High CRI of 90+ for true color rendering
- New construction or retrofit applications
- Damp location rated
- Dimmable down to 5% on compatible dimmers
- Low profile back-lit design
Description
RAB, DSK4R79FA120WS, Disk Surface Mount / Retrofit, Series: DSK, 120, 208, 240, 277 V, 7 W Fixture, LED Lamp, E26 Lamp Base, 4 in Round Smooth White Recessed Trim, 50000 hrs Average Life, 2700, 3000, 4000, 5000 K Color Temperature, 90 CRI, 1053 Lumens, Surface Mounting, 53.47 mm H x 26.47 mm W x 132.08 mm Dia Dimensions
Specifications
Average Life |
50000 hrs |
Color Rendering Index (CRI) |
90 CRI |
Color Temperature |
2700, 3000, 4000, 5000 K |
Dimensions |
53.47 mm H x 26.47 mm W x 132.08 mm Dia |
Fixture Wattage |
7 W |
Lamp Base Type |
E26 |
Lamp Type |
LED |
Lumens |
1053 Lumens |
Mounting Type |
Surface |
Series |
DSK |
Voltage Rating |
120, 208, 240, 277 V |
Standard Approval |
UL Recognized|BAA Compliant|RoHS-Compliant|NEC Sec. 410.16 (A)(1), 410.16 (C5)|T24 JA8 Compliant|T20 Compliant|ENERGY STAR V2.2|Safety Listing |
Application |
For use in Closets |
Documentation
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_DSK4R79FA120WS_Installation_Manual.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_Lighting_DSK4R79FA120WS_Instruction_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_Lighting_DSK4R79FA120WS_Specification_Sheet.pdf
