RAB EZPAN2X2-40Y/D10

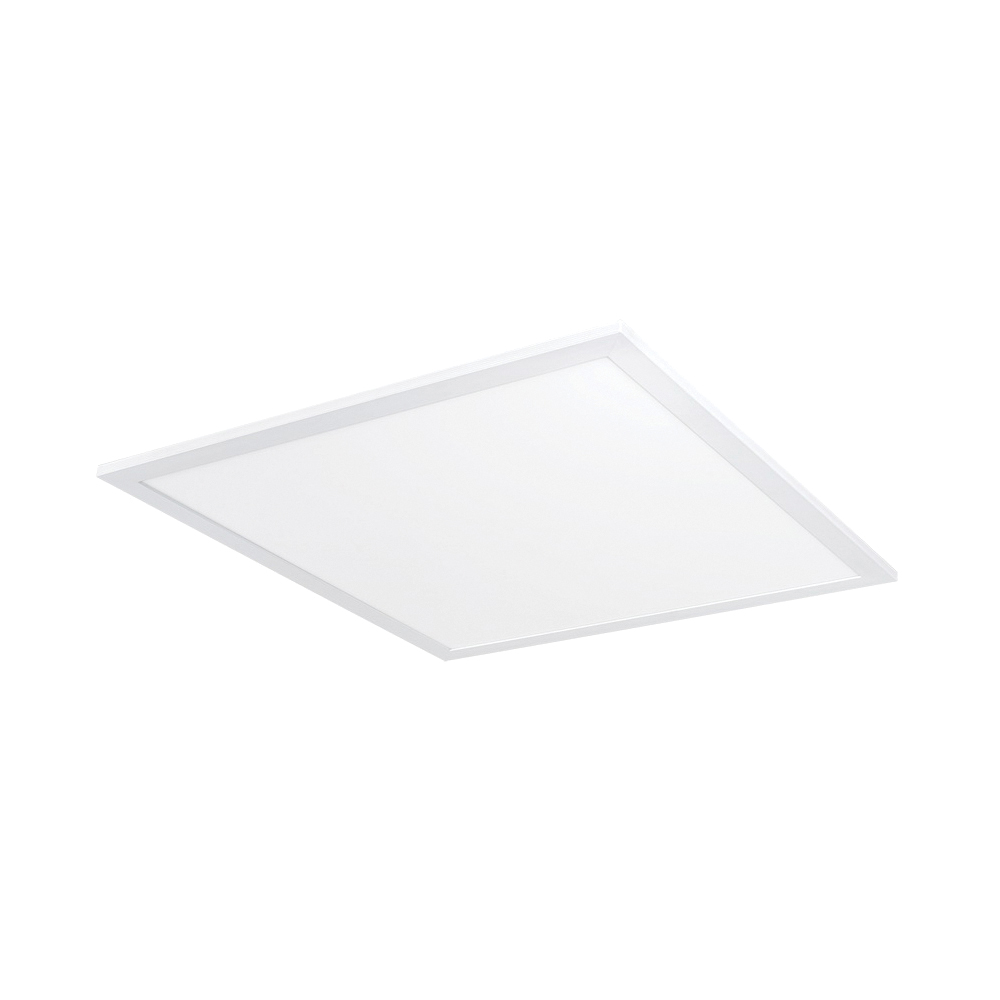

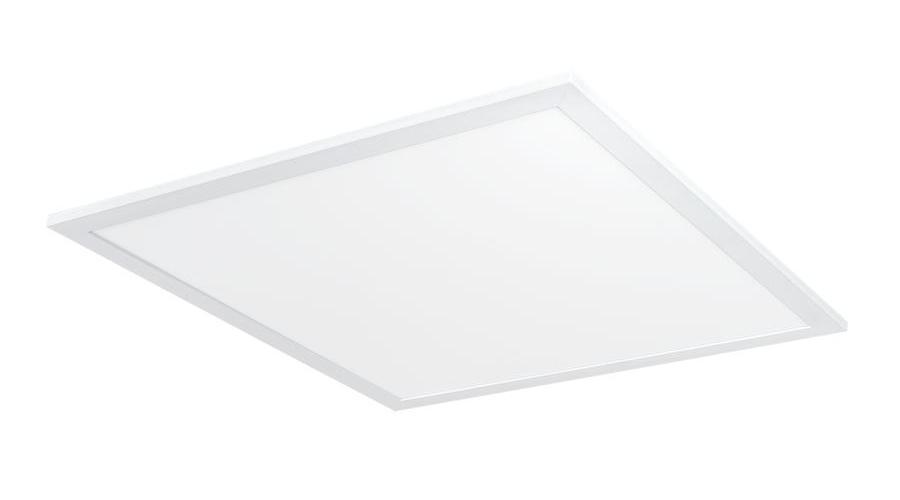

RAB EZPAN2X2-40Y/D10 EZPAN™ Standard Edgelit Panel Light, LED Lamp, 40 W Fixture, 120/208/240/277 VAC, Aluminum Housing
Brand: RAB
Item ID: 455406
MPN: EZPAN2X2-40Y/D10
Login for Price
Features
- Perfect for shallow plenums
- Even and diffuse ambient illumination, ideal for spaces where glare free lighting is required
- Ultra efficient, up to 124 Lumens/W, reducing energy costs by up to 73%
- 0.33 A at 120 VAC, 0.2 A at 208 VAC, 0.18 A at 240 VAC, 0.15 A at 277 VAC
Description
RAB Edgelit Panel Light, Standard, Series: EZPAN™, 120/208/240/277 VAC, 40 W Fixture, 0.15/0.18/0.2/0.33 A, LED Lamp, 40 W Lamp, 99 Lumens/W Light Output, 60000 hr Average Life, Warm White Light, 3000 K Color Temperature, 81 CRI, Class 2 Constant Current/0 to 10 VDC Dimmable Ballast, Frosted Polystyrene Lens, 3994 Lumens, Ceiling Mounting, Aluminum Housing Material, 2 ft H x 2 ft W x 1-5/8 in D Dimensions
Specifications
Amperage Rating |
0.15/0.18/0.2/0.33 A |
Average Life |
60000 hr |
Ballast Type |
Class 2 Constant Current/0 to 10 VDC Dimmable |
Color Rendering Index (CRI) |
81 |
Color Temperature |
3000 K |
Dimensions |
2 ft H x 2 ft W x 1-5/8 in D |
Fixture Wattage |
40 W |
Housing Material |
Aluminum |
Lamp Type |
LED |
Lamp Wattage |
40 W |
Lens Type |
Frosted Polystyrene |
Light Color |
Warm White |
Light Output |
99 Lumens/W |
Lumens |
3994 Lumens |
Mounting Type |
Ceiling |
Series |
EZPAN™ |
Type |
Standard |
Voltage Rating |
120/208/240/277 VAC |
Standard Approval |
DLC Listed|IESNA LM-79|LM-80|UL Listed for Damp Location |
Application |
For insulated ceilings |
