RAB FFLEDSY

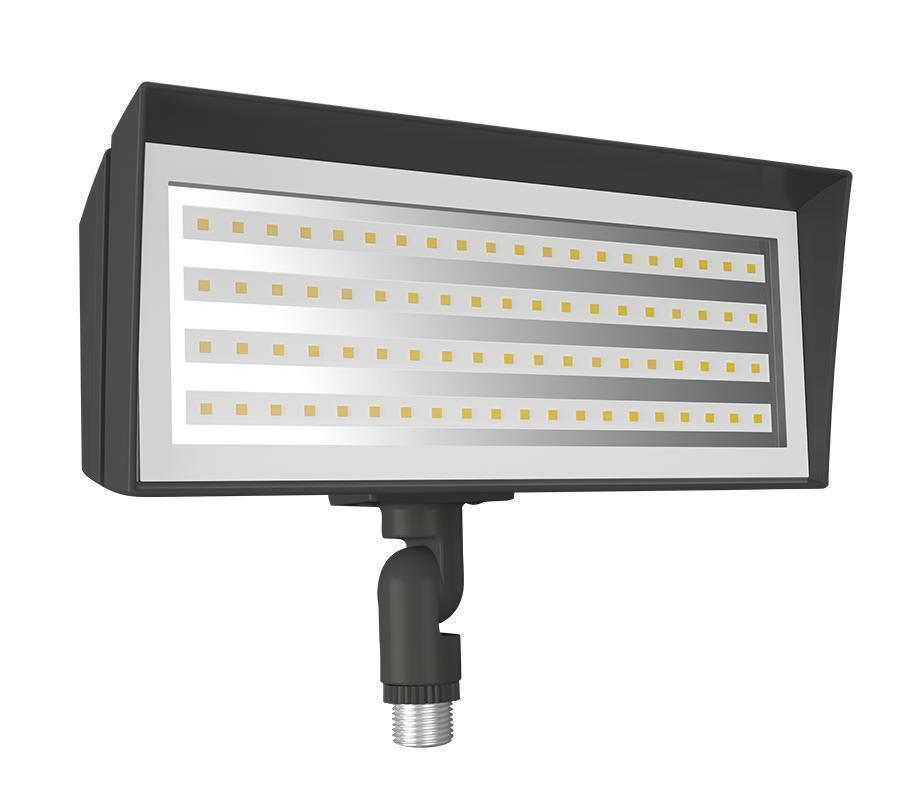

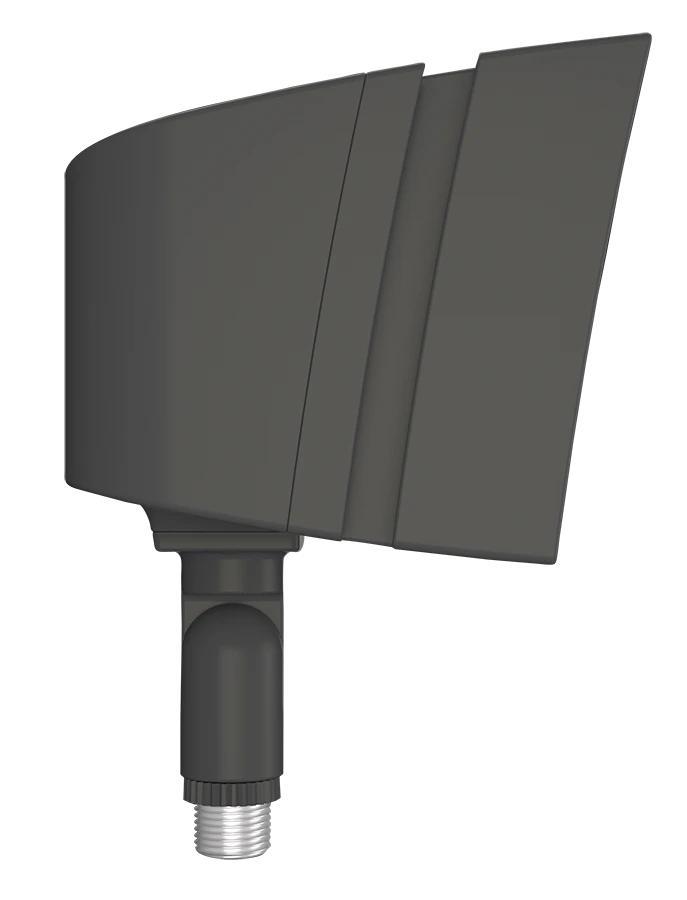

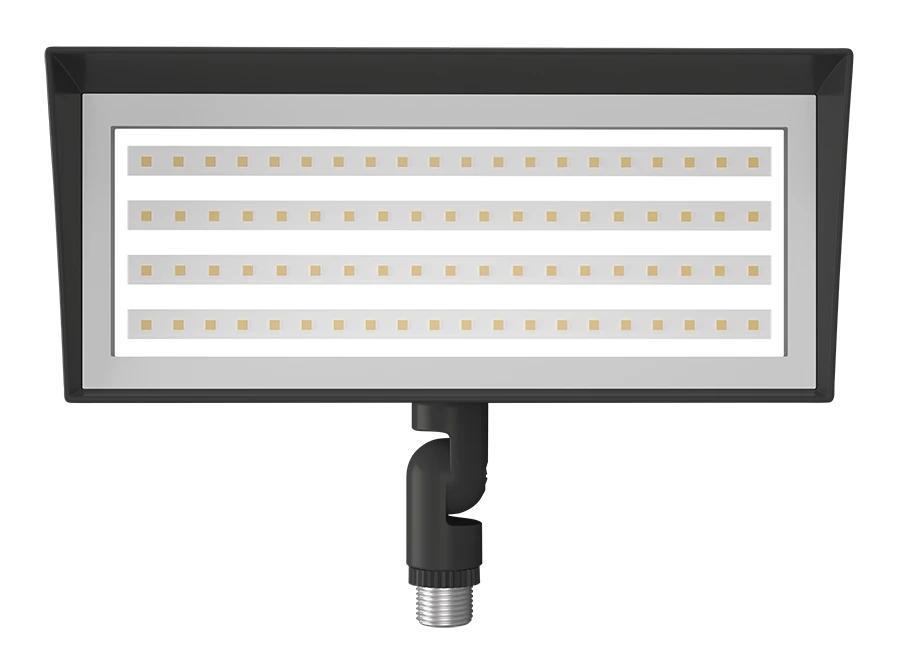

RAB FFLEDSY FFLED Field-Adjustable Floodlight, LED Lamp, 120, 208, 240, 277 V
Brand: RAB
Item ID: 520226
MPN: FFLEDSY
Login for Price
Features
- Ultra-efficient LED and optical design
Description
RAB, FFLEDSY, Floodlight, Field-Adjustable, Series: FFLED, 120, 208, 240, 277 V, 0.15, 0.09, 0.08, 0.07, 0.25, 0.14, 0.13, 0.11, 0.38, 0.22, 0.19, 0.17 A, LED Lamp, 18, 26, 39 W Lamp, 136.3, 133.2, 128.7 Lumens/W Light Output, 100000 hr Average Life, Warm White Light, 3000 K Color Temperature, 82 CRI, 0 to 10 V Dimmable Ballast, Tempered Glass Lens, 2515,4257,6048 Lumens, NEMA 7H x 6V/IP66 Enclosure, Knuckle Mounting, Die-Cast Aluminum Housing Material, 7.5 in H x 9.5 in W x 4.88 in D Dimensions
Specifications
Amperage Rating |
0.15, 0.09, 0.08, 0.07, 0.25, 0.14, 0.13, 0.11, 0.38, 0.22, 0.19, 0.17 A |
Average Life |
100000 hr |
Ballast Type |
0 to 10 V Dimmable |
Color Rendering Index (CRI) |
82 CRI |
Color Temperature |
3000 K |
Dimensions |
7.5 in H x 9.5 in W x 4.88 in D |
Enclosure Type |
NEMA 7H x 6V/IP66 |
Housing Material |
Die-Cast Aluminum |
Lamp Type |
LED |
Lamp Wattage |
18, 26, 39 W |
Lens Type |
Tempered Glass |
Light Color |
Warm White |
Light Output |
136.3, 133.2, 128.7 Lumens/W |
Lumens |
2515,4257,6048 Lumens |
Mounting Type |
Knuckle |
Series |
FFLED |
Type |
Field-Adjustable |
Voltage Rating |
120, 208, 240, 277 V |
Standard Approval |
BAA Compliant|ANSI C78.377-2017|DLC 5.1|Mercury Free|RoHS|IESNA LM-79 and LM-80|UL Listed|PROP65 |
Application |
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_FFLEDLYSFW_Installation_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_FFLEDSY_Specification_Sheet.pdf
