RAB FSLEDH3Y/120

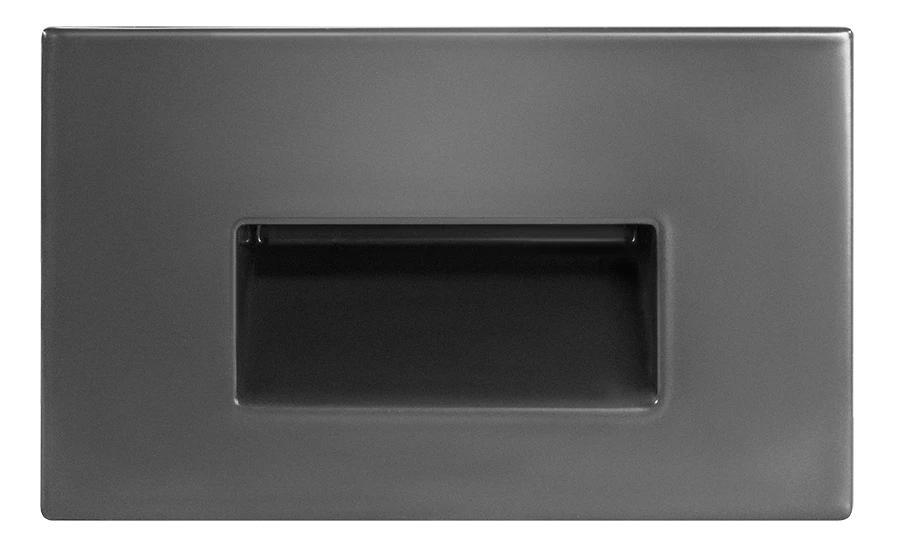

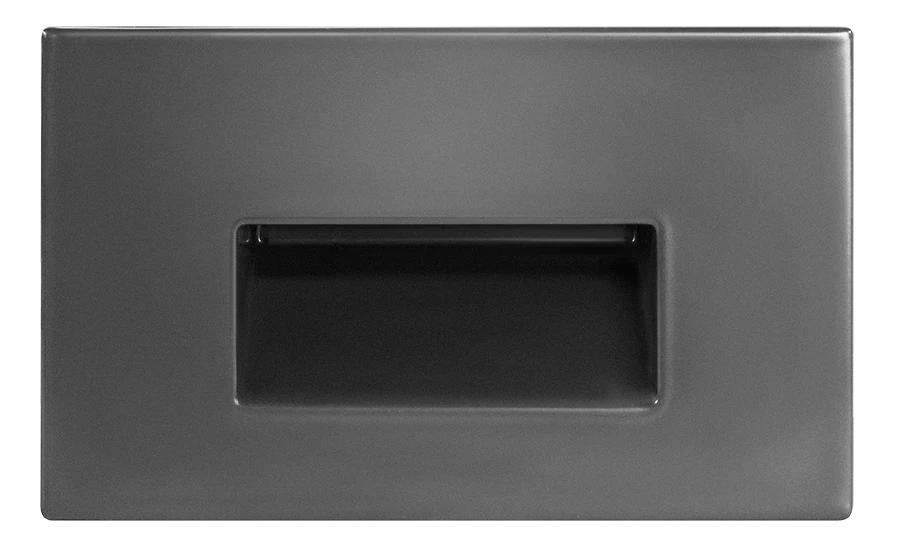

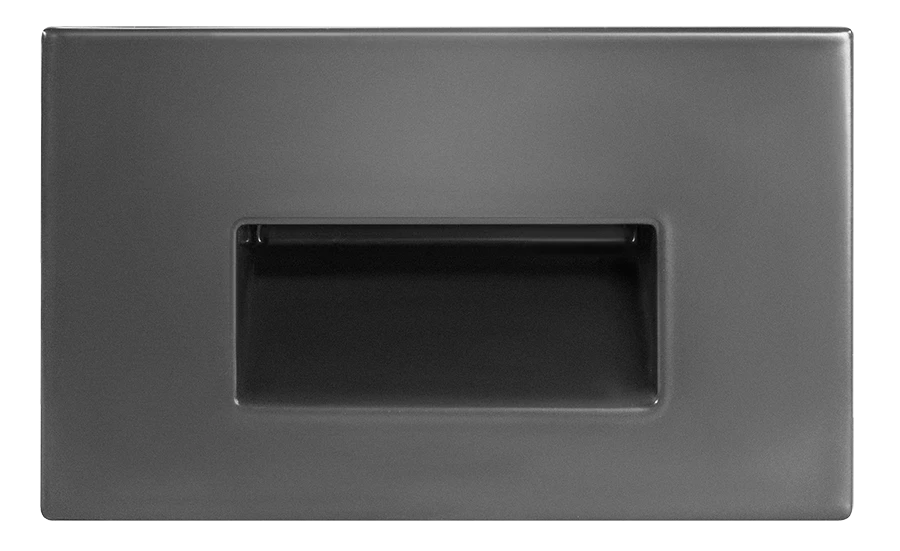

RAB FSLEDH3Y/120 1/2 in Trim Step Light, LED Lamp, 3 W Fixture, 120 VAC, Bronze/Polyester Powder Coated Housing
Brand: RAB
Item ID: 451554
MPN: FSLEDH3Y/120
Login for Price
Features
- Easy installation into a recessed 2 x 4 in job
- Deep regress of light source eliminates glare
- Concealed hardware for a clean and sophisticated look
Description
RAB Step Light, 1/2 in Trim, Series: FSLED, 120 VAC, 3 W Fixture, 0.108 A, LED Lamp, 3 W Lamp, 100000 hr Average Life, Warm White Light, 3000 K Color Temperature, 82 CRI, Constant Current Ballast, Tempered Glass Lens, 37 Lumens, IP66 Enclosure, Surface Mounting, Die Cast Aluminum Housing Material, Bronze/Polyester Powder Coated Housing Finish, 3 in H x 5 in W x 1-9/16 in D Dimensions
Specifications
Amperage Rating |
0.108 A |
Average Life |
100000 hr |
Ballast Type |
Constant Current |
Color Rendering Index (CRI) |
82 |
Color Temperature |
3000 K |
Dimensions |
3 in H x 5 in W x 1-9/16 in D |
Enclosure Type |
IP66 |
Fixture Wattage |
3 W |
Housing Finish |
Bronze/Polyester Powder Coated |
Housing Material |
Die Cast Aluminum |
Lamp Type |
LED |
Lamp Wattage |
3 W |
Lens Type |
Tempered Glass |
Light Color |
Warm White |
Lumens |
37 Lumens |
Mounting Type |
Surface |
Series |
FSLED |
Type |
1/2 in Trim |
Voltage Rating |
120 VAC |
Standard Approval |
ANSI C78.377-2017|UL Listed for Wet Locations|CSA Approved |
Application |
Indoor and Outdoor Applications |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED80F-G_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED80F-G_Catalog.pdf
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Siemens_3TX7112_1DF13C_Catalog.pdf
Instruction/Installation Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_FSLEDH3N_120_Installation_Manual.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_FSLEDH3N_120_Instructions.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_FSLEDH3YB_277_Instruction_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_FSLEDH3YB_277_Instruction_Installation_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_FSLEDH3N120_Line_Drawing.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_FSLEDH3YB_277_Line_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_FSLEDH3YB_277_Line_Drawing.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2083347a5195a1535e2c6c6454a6c858b91f17b6e15821052d8c28df71a98aab.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f94451e6bc12a0b19c54fd63d65237fc88734dcc67a56ec5c842111fe293a90c.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_FSLEDH3Y_120_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_FSLEDH3Y_120_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9917ac4648c86be7cd659fc5a55b070a4c84ff7521892cfcfcca7d69b9904554.pdf
