RAB GT500

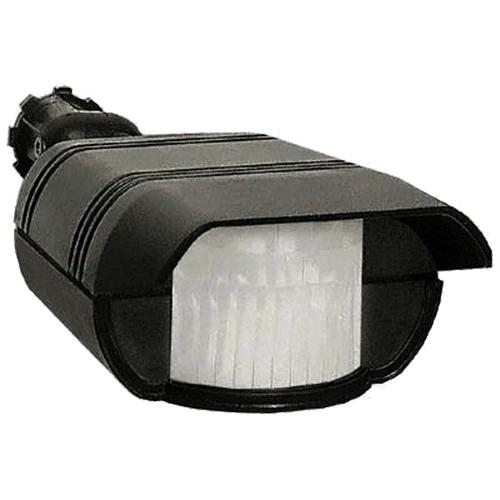

RAB GT500 Non-Fixture Gotcha Sensor, 120/277 VAC, Photoelectric Sensor, 50 ft Out x 70 ft Wide Coverage, 110 deg Viewing, Threaded Mount
Brand: RAB
Item ID: 34063
MPN: GT500
Login for Price
Features
- Temperature compensation
- Protected manual override with auto-reset
- Double look down lens
- Adjustable from 100 to 50% detector sensitivity
- Add gotcha sensor to outdoor fixtures that draw 30 W or greater and have bi-level operation for compliance with 2013 California title 24 building and electrical codes
- Made of tough, corrosion-resistant polycarbonate floodlights, for extra or replacement floodlights, order CAT No, TUFFY in your choice of color, accepts PAR38 lamps, medium base, 150 W maximum, lamps not included
- Withstands up to 6000 VAC
- Two flip logic prevents activation by momentary power outages, override resets to auto after 6 hr or at dawn, no extra wiring needed
- Deactivates lights during daylight, fully adjustable for 24 hr operation or custom applications
- Made of tough, corrosion-resistant polycarbonate sensor housing
Description
RAB Gotcha Sensor, Non-Fixture, 120/277 VAC, 5 A, 500 W Power, Photoelectric Sensor, 50 ft Out x 70 ft Wide Coverage, 110 deg Viewing, 10 s to 5 min Time Delay, Incandescent Lamp, 60 Hz Response, Threaded Mounting, -20 to 40 deg C, Polycarbonate, Black, 2-1/4 in H x 4 in W x 5 in D Dimensions
Specifications
Amperage Rating |
5 A |
Color |
Black |
Coverage |
50 ft Out x 70 ft Wide |
Dimensions |
2-1/4 in H x 4 in W x 5 in D |
Lamp Type |
Incandescent |
Material |
Polycarbonate |
Mounting Type |
Threaded |
Power Rating |
500 W |
Response Frequency |
60 Hz |
Sensor Type |
Photoelectric |
Temperature Rating |
-20 to 40 deg C |
Time Delay |
10 s to 5 min |
Type |
Non-Fixture |
Viewing Angle |
110 deg |
Voltage Rating |
120/277 VAC |
Standard Approval |
UL Listed |
Application |
Wet Locations and Indoor/Outdoor Applications |
