RAB GUS4-50YW/D10

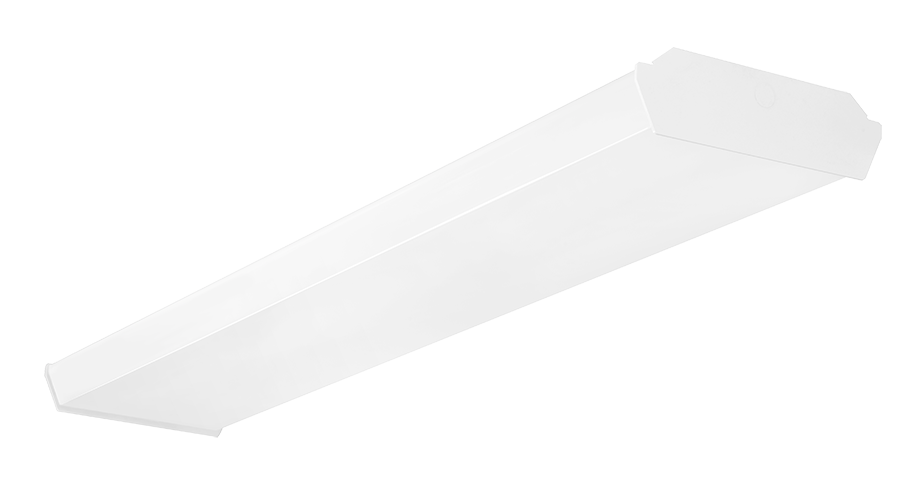

RAB GUS4-50YW/D10 Wraparound Fixture,) LED Lamp, 51 W Fixture, 120 to 277 VAC, White/Polyester Powder Coated Housing
Brand: RAB
Item ID: 452420
MPN: GUS4-50YW/D10
Login for Price
Features
- Energy efficient, maintenance free LED wrap fixture
- High reflectance white finish for optimal output
- Diffusion wrap around lens for smooth light distribution
- Surface, pendant or chain multiple mounting options
- Formulated for high durability and long lasting color
- Long life and high efficiency LEDs
- 0.43 A at 120 VAC, 0.27 A at 208 VAC, 0.23 A at 240 VAC, 0.2 A at 277 VAC
Description
RAB Wraparound Fixture, Series: GUS, 120 to 277 VAC, 51 W Fixture, 0.43/0.27/0.23/0.2 A, LED Lamp, 50 W Lamp, 108 Lumens/W Light Output, 100000 hr Average Life, Warm White Light, 3000 K Color Temperature, 85 CRI, 0 to 10 VDC Dimming/Class 2 Constant Current Ballast, Acrylic Lens, 5444 Lumens, Surface Mounting, Cold Rolled Steel Housing Material, White/Polyester Powder Coated Housing Finish, 4 ft L x 9-3/4 in W x 2-15/16 in H Dimensions
Specifications
Amperage Rating |
0.43/0.27/0.23/0.2 A |
Average Life |
100000 hr |
Ballast Type |
0 to 10 VDC Dimming/Class 2 Constant Current |
Color Rendering Index (CRI) |
85 |
Color Temperature |
3000 K |
Dimensions |
4 ft L x 9-3/4 in W x 2-15/16 in H |
Fixture Wattage |
51 W |
Housing Finish |
White/Polyester Powder Coated |
Housing Material |
Cold Rolled Steel |
Lamp Type |
LED |
Lamp Wattage |
50 W |
Lens Type |
Acrylic |
Light Color |
Warm White |
Light Output |
108 Lumens/W |
Lumens |
5444 Lumens |
Mounting Type |
Surface |
Series |
GUS |
Voltage Rating |
120 to 277 VAC |
Standard Approval |
UL Listed for Damp Location|DLC Listed|ANSI C78.377-2017|CSA Approved |
