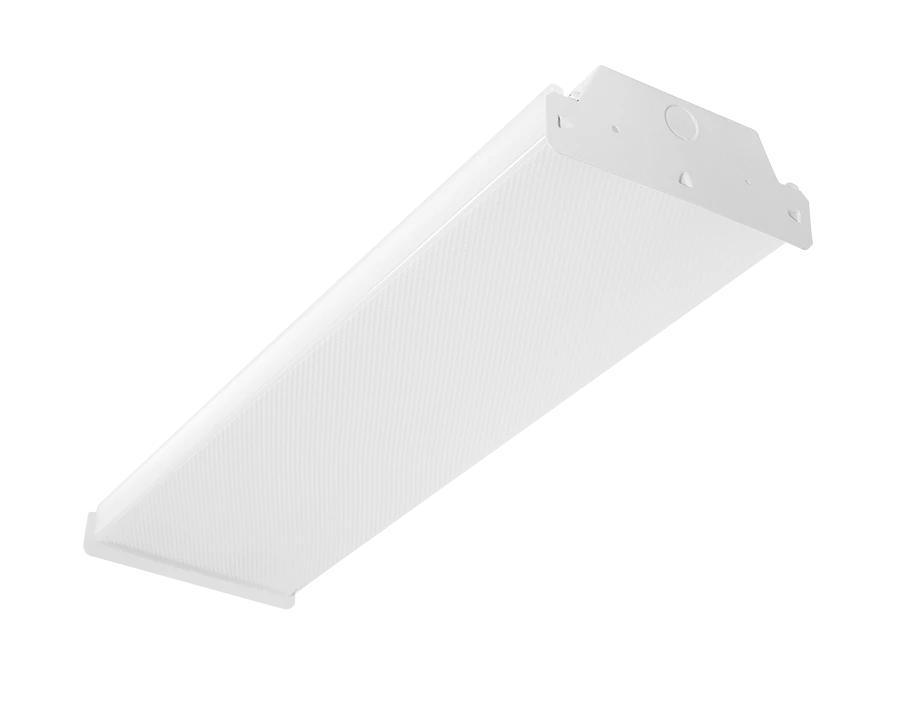

RAB GUSJR2
RAB GUSJR2 GUSJR Adjustable Wrap Lighting, LED Lamp, 10.6 to 20.2 W Fixture, 120 to 277 V, White Powder Coated Housing
Brand: RAB
Item ID: 537870
MPN: GUSJR2
Login for Price
Features
- Affordable, easy to use LED wrap fixture
- 0 to 10V dimming, standard
- 50,000 hr LED lifespan
Description
RAB, GUSJR2, Wrap Lighting, Adjustable, Series: GUSJR, 120 to 277 V, 10.6 to 20.2 W Fixture, 0.17A/0.13A/0.08A at 120V, 0.10A/0.07A/0.05A at 208V, 0.09A/0.07A/0.05A at 240V, 0.08A/0.06A/0.05A at 277V, LED Lamp, 20/15/10 W Lamp, 126.2 to 143.8 Lumens/W Light Output, 50000 hr Average Life, 3500/4000/5000 K Color Temperature, 83 to 85 CRI, Class 1 Constant Current/0 to 10 VDC Dimmable Ballast, Diffused Polymethyl Methacrylate Lens, 1382 to 2790 Lumens, Surface Mounting, Cold Rolled Steel Housing Material, White Powder Coated Housing Finish, 2.4 in H x 6.7 in W x 24.5 in L Dimensions
Specifications
Amperage Rating |
0.17A/0.13A/0.08A at 120V, 0.10A/0.07A/0.05A at 208V, 0.09A/0.07A/0.05A at 240V, 0.08A/0.06A/0.05A at 277V |
Average Life |
50000 hr |
Ballast Type |
Class 1 Constant Current/0 to 10 VDC Dimmable |
Color Rendering Index (CRI) |
83 to 85 |
Color Temperature |
3500/4000/5000 K |
Dimensions |
2.4 in H x 6.7 in W x 24.5 in L |
Fixture Wattage |
10.6 to 20.2 W |
Housing Finish |
White Powder Coated |
Housing Material |
Cold Rolled Steel |
Lamp Type |
LED |
Lamp Wattage |
20/15/10 W |
Lens Type |
Diffused Polymethyl Methacrylate |
Light Output |
126.2 to 143.8 Lumens/W |
Lumens |
1382 to 2790 Lumens |
Mounting Type |
Surface |
Series |
GUSJR |
Type |
Adjustable |
Voltage Rating |
120 to 277 V |
Standard Approval |
BAA Compliant|UL Listed|DLC Listed|Trade Agreements Act Compliant|ANSI C78.377-2017|IESNA LM-79/LM-80|RoHS Compliant |
Application |
For damp locations |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_GUSJR2_LCBS_E_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_GUSJR2_LCBS_E_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_GUSJR2_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_GUSJR2_Specification_Sheet.pdf
